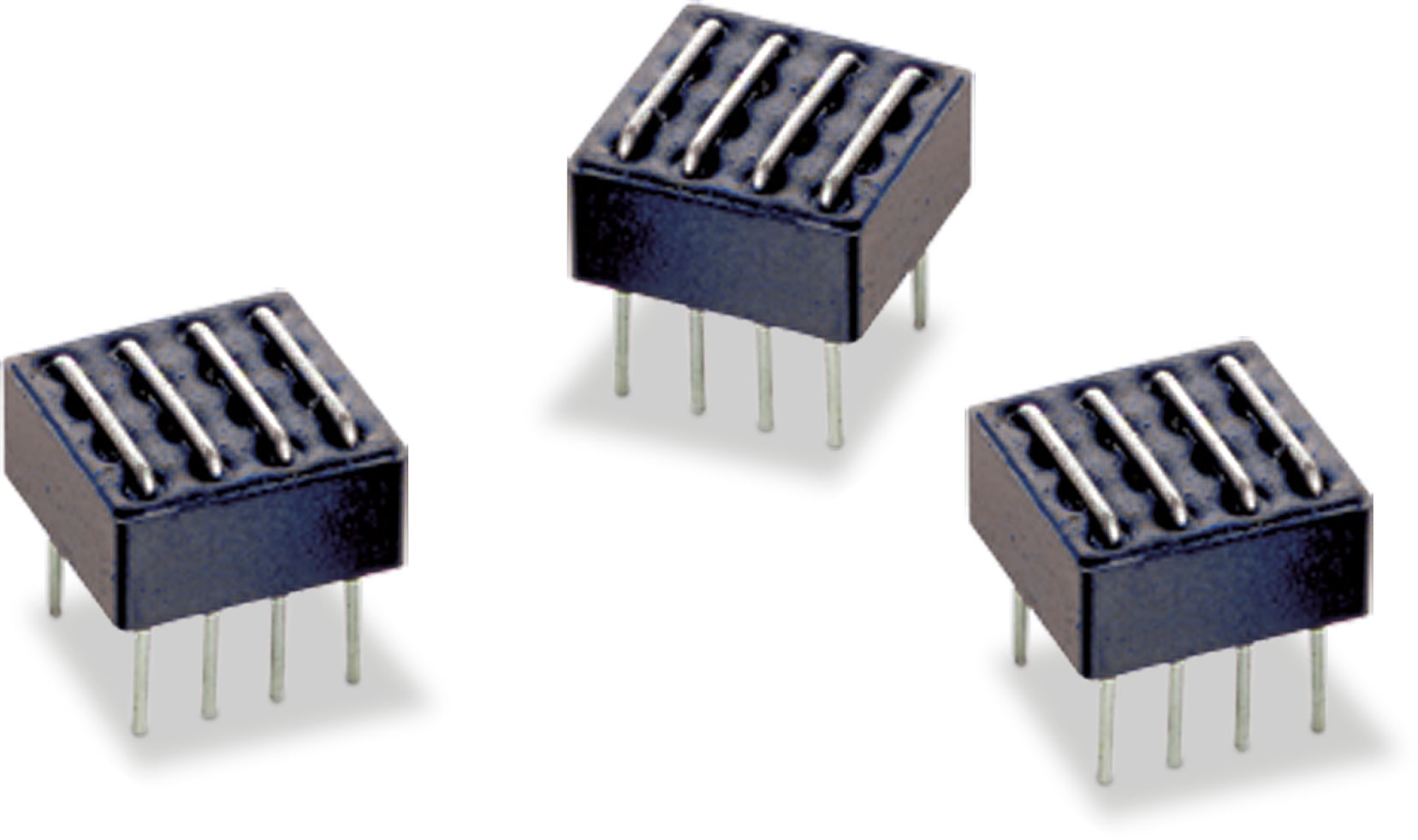

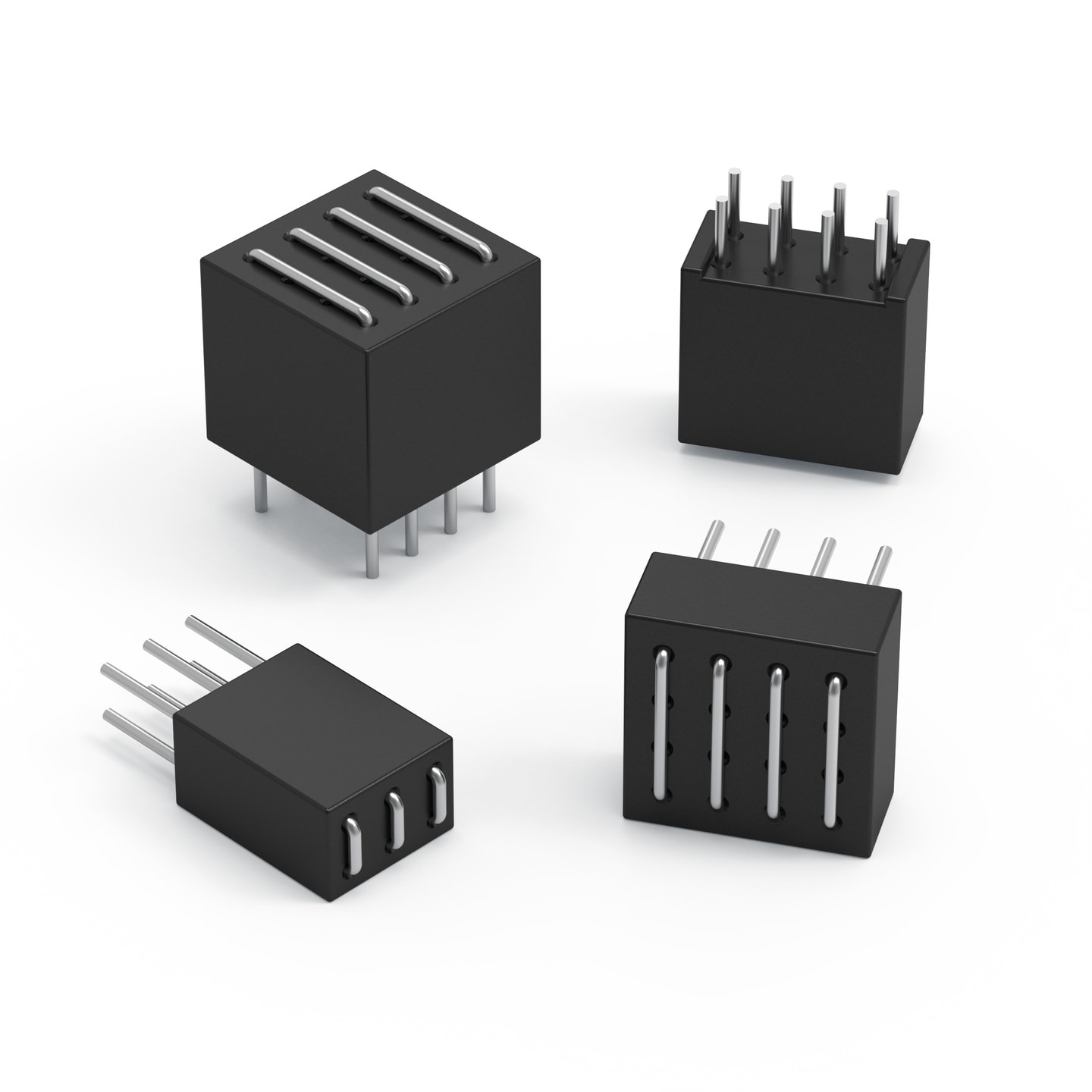

WE-MLS Multiline EMI Suppression Ferrite

LTSpice files

LT
LTSpice_WE-MLS (rev22a).zip
|
1.8 KB

Characteristics

High impedance common mode inductor with 2x2 windings made by PCB line connection
High rated current with typ. 4 A
Broadband filtering because of the NiZn-ferrite core
RF common mode inductor for 2, 3 or 4 lines in one component
Compact size
Operating temperature: –25 ºC to +125 ºC
With the appropriate layout the impedance (i.e. 4 windings) respectively the current (parallel circuit) could be increased

Applications

Perfect suitable for absorption of common or differential mode interferences in the field of EMC
With one turn the component performes like a 3 or 4 times common mode choke for the signal
Multi-conductor systems and power electronics
Filtering components of low voltage power supplies
4-line sensor application

Products

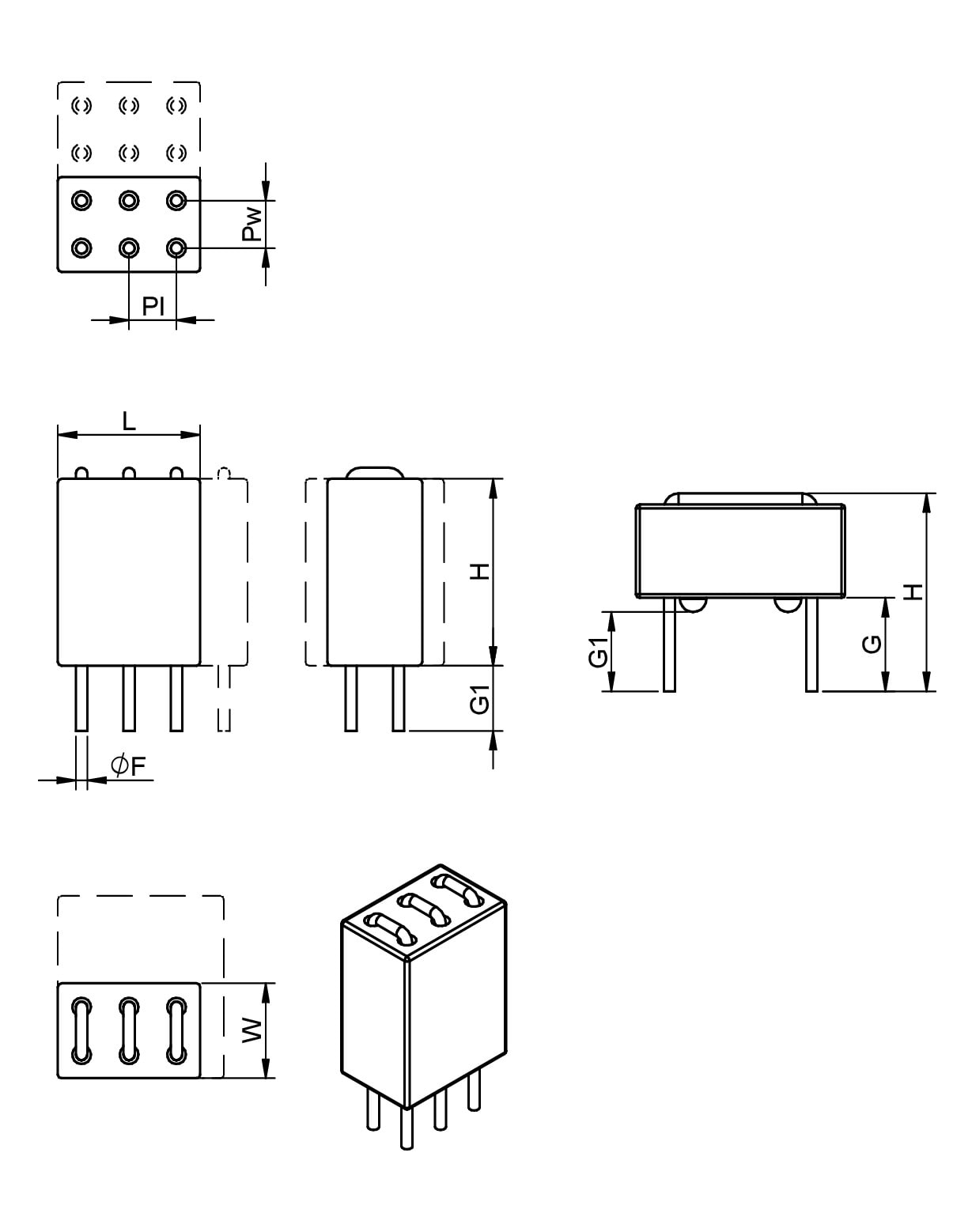

Order Code	Datasheet	Simulation	Downloads	Status	Z @ 100 MHz (Ω)	Z @ 25 MHz (Ω)	I_R (A)	R_{DC max.} (mΩ)	Version	G₁ (mm)	L (mm)	W (mm)	H (mm)	Samples
742730321	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		7 files EDA models: Components ZIP ALT WE-MLS (rev22c).IntLib \| 233 KB ZUK Cadstar_WE-MLS (rev21a).zip \| 8.3 KB CDS Cadence_WE-MLS (rev22a).zip \| 1.5 MB EAG Eagle_WE-MLS (rev21a).lbr \| 42.3 KB CAD files ZIP IGS 742730321 (rev1).igs \| 961.2 KB STP 742730321 (rev1).stp \| 181.1 KB Electric models ZIP PSP PSpice_WE-MLS (rev22a).zip \| 4 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	150	115	4	2	4 Lines	3	11.2	11.2	5
742730021	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		7 files EDA models: Components ZIP ALT WE-MLS (rev22c).IntLib \| 233 KB ZUK Cadstar_WE-MLS (rev21a).zip \| 8.3 KB CDS Cadence_WE-MLS (rev22a).zip \| 1.5 MB EAG Eagle_WE-MLS (rev21a).lbr \| 42.3 KB CAD files ZIP IGS 742730021 (rev1).igs \| 1.1 MB STP 742730021 (rev1).stp \| 178.9 KB Electric models ZIP PSP PSpice_WE-MLS (rev22a).zip \| 4 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	170	136	4	2	4 Lines	4.25	11.2	11.2	5
742730022	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		7 files EDA models: Components ZIP ALT WE-MLS (rev22c).IntLib \| 233 KB ZUK Cadstar_WE-MLS (rev21a).zip \| 8.3 KB CDS Cadence_WE-MLS (rev22a).zip \| 1.5 MB EAG Eagle_WE-MLS (rev21a).lbr \| 42.3 KB CAD files ZIP IGS 742730022 (rev1).igs \| 1.1 MB STP 742730022 (rev1).stp \| 178.8 KB Electric models ZIP PSP PSpice_WE-MLS (rev22a).zip \| 4 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	248	208	4	2	4 Lines	2.75	11.2	11.2	8
74273002	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		7 files EDA models: Components ZIP ALT WE-MLS (rev22c).IntLib \| 233 KB ZUK Cadstar_WE-MLS (rev21a).zip \| 8.3 KB CDS Cadence_WE-MLS (rev22a).zip \| 1.5 MB EAG Eagle_WE-MLS (rev21a).lbr \| 42.3 KB CAD files ZIP IGS 74273002 (rev1).igs \| 675.5 KB STP 74273002 (rev1).stp \| 120.1 KB Electric models ZIP PSP PSpice_WE-MLS (rev22a).zip \| 4 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	249	209	4	2	4 Lines	3.19	10.88	5.49	10
74273012	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		8 files EDA models: Components ZIP ALT WE-MLS (rev22c).IntLib \| 233 KB ZUK Cadstar_WE-MLS (rev21a).zip \| 8.3 KB CDS Cadence_WE-MLS (rev22a).zip \| 1.5 MB EAG Eagle_WE-MLS (rev21a).lbr \| 42.3 KB CAD files ZIP 3D Download_WE-MLS_3D (rev1).pdf \| 126.8 KB IGS Download_WE-MLS_IGS (rev1).igs \| 561.9 KB STP Download_WE-MLS_STP (rev1).stp \| 77.6 KB Electric models ZIP PSP PSpice_WE-MLS (rev22a).zip \| 4 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	249	209	4	2	4 Lines	4.5	10.88	5.49	10
74273001	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		7 files EDA models: Components ZIP ALT WE-MLS (rev22c).IntLib \| 233 KB ZUK Cadstar_WE-MLS (rev21a).zip \| 8.3 KB CDS Cadence_WE-MLS (rev22a).zip \| 1.5 MB EAG Eagle_WE-MLS (rev21a).lbr \| 42.3 KB CAD files ZIP IGS 74273001 (rev1).igs \| 573.7 KB STP 74273001 (rev1).stp \| 108.4 KB Electric models ZIP PSP PSpice_WE-MLS (rev22a).zip \| 4 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	264	212	4	2	3 Lines	5.8	7.62	5.08	10
74273031	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		5 files EDA models: Components ZIP ALT WE-MLS (rev22c).IntLib \| 233 KB ZUK Cadstar_WE-MLS (rev21a).zip \| 8.3 KB CDS Cadence_WE-MLS (rev22a).zip \| 1.5 MB EAG Eagle_WE-MLS (rev21a).lbr \| 42.3 KB Electric models ZIP PSP PSpice_WE-MLS (rev22a).zip \| 4 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	264	212	4	2	3 Lines	3.5	7.87	5.33	10
742730023	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		7 files EDA models: Components ZIP ALT WE-MLS (rev22c).IntLib \| 233 KB ZUK Cadstar_WE-MLS (rev21a).zip \| 8.3 KB CDS Cadence_WE-MLS (rev22a).zip \| 1.5 MB EAG Eagle_WE-MLS (rev21a).lbr \| 42.3 KB CAD files ZIP IGS 742730023 (rev1).igs \| 1.1 MB STP 742730023 (rev1).stp \| 178.9 KB Electric models ZIP PSP PSpice_WE-MLS (rev22a).zip \| 4 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	334	292	4	2	4 Lines	4.25	11.2	11.2	11
742730123	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		5 files EDA models: Components ZIP ALT WE-MLS (rev22c).IntLib \| 233 KB ZUK Cadstar_WE-MLS (rev21a).zip \| 8.3 KB CDS Cadence_WE-MLS (rev22a).zip \| 1.5 MB EAG Eagle_WE-MLS (rev21a).lbr \| 42.3 KB Electric models ZIP PSP PSpice_WE-MLS (rev22a).zip \| 4 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	334	292	4	2	4 Lines	2.45	11.2	11.2	11
742730223	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		5 files EDA models: Components ZIP ALT WE-MLS (rev22c).IntLib \| 233 KB ZUK Cadstar_WE-MLS (rev21a).zip \| 8.3 KB CDS Cadence_WE-MLS (rev22a).zip \| 1.5 MB EAG Eagle_WE-MLS (rev21a).lbr \| 42.3 KB Electric models ZIP PSP PSpice_WE-MLS (rev22a).zip \| 4 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	334	292	4	2	4 Lines	3.2	11.2	11.2	11

Order Code	Datasheet	Simulation
742730321	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
742730021	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
742730022	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
74273002	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
74273012	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
74273001	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
74273031	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
742730023	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
742730123	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
742730223	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document

Samples

Order Code	Datasheet	Simulation	Downloads	Status	Z @ 100 MHz (Ω)	Z @ 25 MHz (Ω)	I_R (A)	R_{DC max.} (mΩ)	Version	G₁ (mm)	L (mm)	W (mm)	H (mm)	Samples
