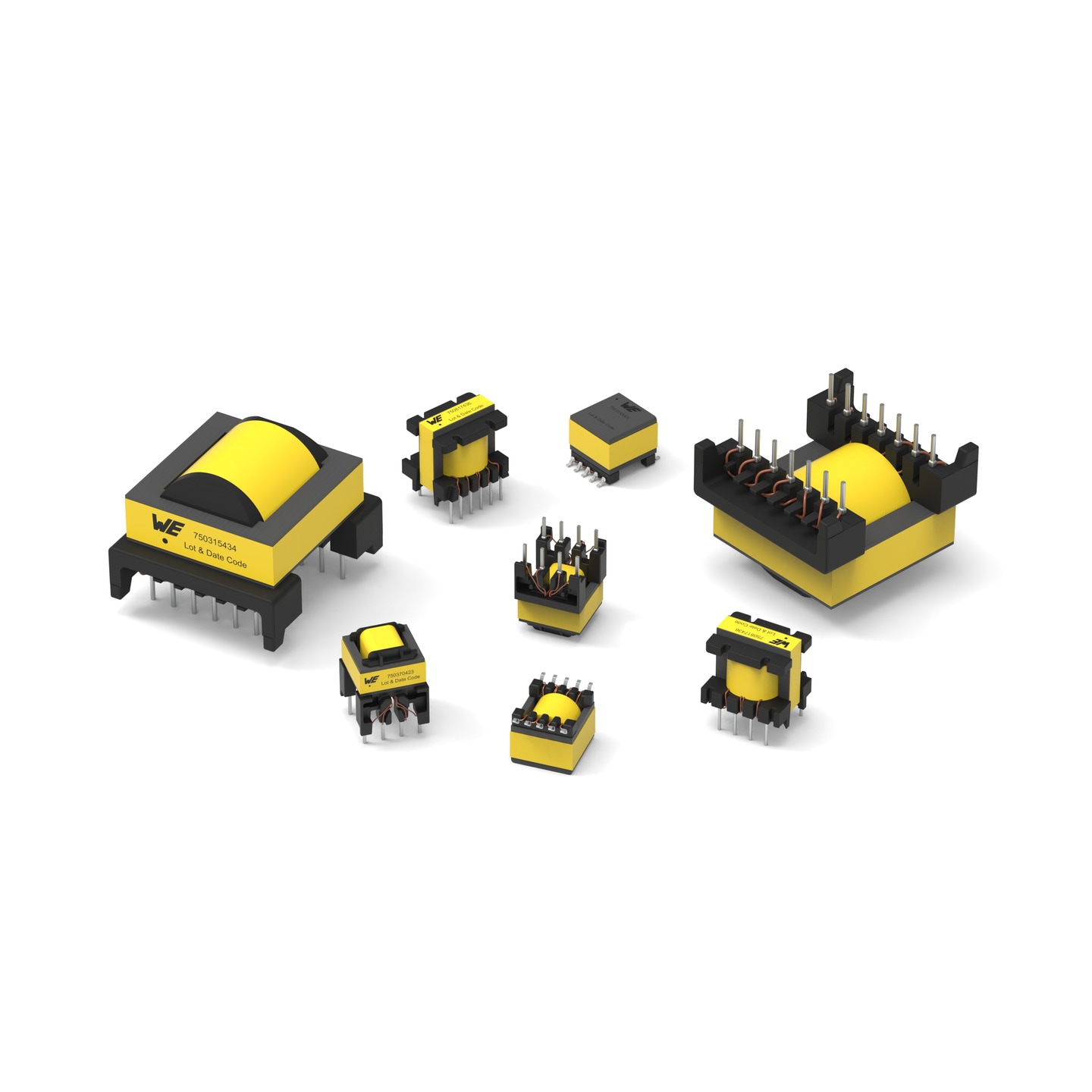

Characteristics
- Flyback topology
- Designs for Universal, US and European input voltages
- Low leakage inductance
- Isolation voltage up to 4500VAC
- Operating temperature: –40 °C to +125 °C
- Most products meet reinforced insulation
Reference Design
Applications
- Offline Applications
- High DC VIN Isolated Applications
- Offline Bus Converter (12V, 24V or 48V Outputs)
- Industrial power supplies
- Medical power supplies
- Auxiliary power supply
- Home appliances
- Consumer electronics
Products
All
EE13/6/6
EE16/7/5
EE20/10/6
EP13
ER28/14
ETD34
RM10
| Order Code | Datasheet | Simulation | Downloads | Status | VIN | VOut1 (V) | IOut1 (A) | Vaux (V) | RDC 1 (Ω) | RDC 2 (Ω) | RDC 3 (Ω) | RDC 4 (Ω) | fswitch (kHz) | L (µH) | NPRI : NSEC : NAUX | ISAT (A) | VT (V (AC)) | L (mm) | W (mm) | H (mm) | Mount | Size | Samples | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 750317464 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 57 - 424 V (AC) | 24 | 2 | 12 | 0.56 | 0.045 | 0.175 | – | 100 | 440 | 4:1:0.5 | 5.25 | 3000 | 31.5 | 31.5 | 20.5 | THT | RM10 | ||
| 750317463 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 57 - 424 V (AC) | 12 | 4 | 12 | 0.615 | 0.025 | 0.2 | – | 100 | 440 | 8:1:1 | 5.5 | 3000 | 31.5 | 31.5 | 20.5 | THT | RM10 | ||
| 750317589 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 71 - 424 V (AC) | 12 | 3 | 12 | 0.81 | 0.025 | 0.125 | – | 140 | 670 | 8:1:1 | 3 | 3000 | 31.5 | 31.5 | 20.5 | THT | RM10 | ||
 | 7508110210 | SPEC | 7 files | Active i| Production is active. Expected lifetime: >10 years. | 85 - 141 V (AC) | 11 | 0.35 | 15 | 5.1 | 0.092 | 1.35 | – | 100 | 2000 | 6.67:1:1.67 | 0.27 | 4500 | 15 | 15.75 | 18.5 | THT | EE13/6/6 | ||
 | 750813144 | SPEC | 7 files | Active i| Production is active. Expected lifetime: >10 years. | 85 - 265 V (AC) | 28 | 0.5 | 20 | 2.4 | 0.241 | 1.55 | – | 100 | 600 | 4:1:0.71 | 1.75 | 4500 | 18.5 | 16.5 | 18.8 | THT | EE16/7/5 | ||
 | 750811248 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 85 - 265 V (AC) | 24 | 2 | 24 | 0.155 | 0.125 | 0.025 | 0.185 | 60 - 400 | 300 | 2:2:1:1 | 3.5 | 4500 | 31 | 31 | 25 | THT | ER28/14 | ||
| 750811290 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 85 - 265 V (AC) | 125 | 0.36 | 21.25 | 0.6 | 0.254 | 0.11 | – | 150 | 461 | 1:1:0.17 | 3.15 | 4500 | 31 | 31 | 25 | THT | ER28/14 | ||
| 750811291 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 85 - 265 V (AC) | 85 | 0.4 | 20 | 0.55 | 1.23 | 1.1 | – | 60 | 400 | 1:1:0.24 | 5.7 | 4500 | 31 | 31 | 25 | THT | ER28/14 | ||
| 750312646 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 85 - 304 V (AC) | 33 | 2.5 | 22 | 0.11 | 0.01 | 0.133 | – | 70 | 200 | 3.3:1:5:1 | 6 | 1500 | 31 | 31 | 25 | THT | ER28/14 | ||
 | 750811330 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 85 - 265 V (AC) | 18 | 5 | 18 | 0.15 | 0.008 | 0.042 | – | 200 | 300 | 6:1:1 | 4 | 4500 | 39.6 | 43.18 | 30.48 | THT | ETD34 | ||
| 750813390 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 85 - 265 V (AC) | 90 | 1 | 19.8 | 0.15 | 0.223 | 0.055 | – | 75 | 100 | 1:1:0.22 | 9 | 4500 | 39.6 | 43.18 | 30.48 | THT | ETD34 | ||
| 750811351 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 85 - 265 V (AC) | 36 | 3 | 25 | 0.135 | 0.027 | 0.055 | – | 75 | 180 | 4:1:0.67 | 7.4 | 4500 | 39.6 | 43.18 | 30.48 | THT | ETD34 | ||
| 750817251 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 85 - 305 V (AC) | 48 | 1 | 24 | 0.12 | 0.1 | 0.05 | 0.05 | 60 | 250 | 2:2:1:1:1 | 4.5 | 4500 | 31 | 31 | 25 | THT | ER28/14 | ||
| 750813002 | SPEC | 7 files | Active i| Production is active. Expected lifetime: >10 years. | 90 - 265 V (AC) | 3.4 | 1 | 17 | 6.25 | 0.016 | 1.7 | – | 100 | 2000 | 20:1:5 | 0.35 | 4500 | 15 | 15.75 | 18.5 | THT | EE13/6/6 | ||
| 750813134 | SPEC | 7 files | Active i| Production is active. Expected lifetime: >10 years. | 90 - 265 V (AC) | 14 | 1 | 18 | 1.85 | 0.06 | 1.35 | – | 100 | 600 | 8:1:1.29 | 1.75 | 4500 | 18 | 16.5 | 18 | THT | EE16/7/5 | ||
 | 7508111417 | SPEC | 7 files | Active i| Production is active. Expected lifetime: >10 years. | 90 - 265 V (AC) | 28 | 0.5 | 24 | 1.34 | 0.058 | 2 | – | 100 | 700 | 4:1:0.86 | 1.5 | 4500 | 22.25 | 14.6 | 23.24 | THT | EE20/10/6 | ||
| 750817220 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 90 - 650 V (AC) | 8 | 3 | 28 | 1.3 | 0.015 | 0.794 | – | 60 | 1000 | 14.28:1:3.28 | 3.2 | 5500 | 31 | 31 | 25 | THT | ER28/14 | ||
| 7508111518 | SPEC | 7 files | Active i| Production is active. Expected lifetime: >10 years. | 99 - 269 V (AC) | 48 | 0.3 | 12 | 1.4 | 0.425 | 0.32 | – | 50 | 2400 | 2.5:1:0.25 | 0.49 | 4000 | 22.25 | 14.6 | 23.24 | THT | EE20/10/6 | ||
 | 750316022 | SPEC | 7 files | Active i| Production is active. Expected lifetime: >10 years. | 99 - 269 V (AC) | 5 | 1.6 | 20 | 4.55 | 0.015 | 0.695 | – | 100 | 3300 | 24:1:4 | 0.36 | 1500 | 13.46 | 17.75 | 12.7 | SMT | EP13 | ||
| 7508111324 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 7 files | Active i| Production is active. Expected lifetime: >10 years. | 100 - 269 V (AC) | 12 | 1 | 12 | 1.725 | 0.41 | 0.037 | – | 50 | 2750 | 10:1:1 | 0.5 | 4000 | 22.25 | 14.4 | 23.24 | THT | EE20/10/6 | ||
 | 750817020 | SPEC | 7 files | Active i| Production is active. Expected lifetime: >10 years. | 141 - 318 V (AC) | 10 | 0.15 | 12 | 24.8 | 0.235 | 0.4 | – | 150 | 4000 | 9.33:1:1.17 | 0.34 | 4600 | 15 | 15.75 | 18.5 | THT | EE13/6/6 |
