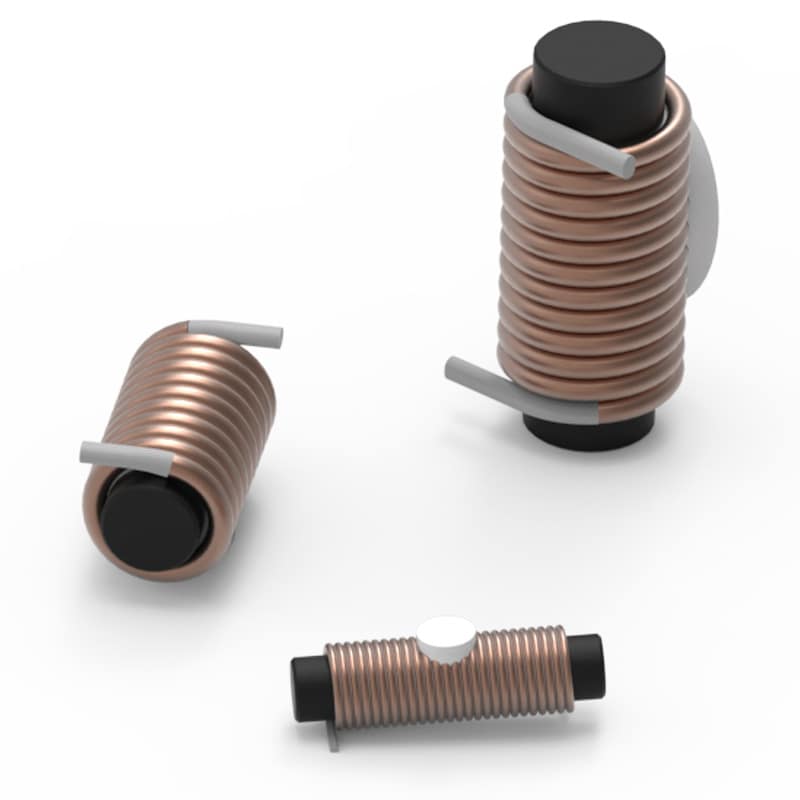

WE-RCIS Rod Core Inductor SMT

Datasheet

SPEC
Seriesdatasheet_WE-RCIS_V1 (rev1).pdf
|
3.9 MB

LTSpice files

LT
LTSpice_WE-RCIS (rev24a).zip
|
1.5 KB

Characteristics

High Current capability
Very high saturation performance
High insertion loss at FM band
Broadband suppression
Robust mechanical design
Packaging: tape & reel / pick & place
Operating temperature up to +150ºC
Automotive approved

Applications

Integrated DC/DC converters
EMC suppression in motor drive systems
Infotainment Systems

Products

Order Code	Datasheet	Downloads	Status	L (mm)	Ø D (mm)	G (mm)	Ø F (mm)	L (µH)	I_R (A)	R_DC (mΩ)	f_res (MHz)	Samples
7847227027	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-RCIS (rev24a).IntLib \| 412.5 KB ZUK Cadstar_WE-RCIS (rev21a).zip \| 5.2 KB CDS Cadence_WE-RCIS (rev24a).zip \| 6.8 MB EAG Eagle_WE-RCIS (rev20a).lbr \| 20.3 KB CAD files ZIP IGS IGS_WE-RCIS_7847227027 (rev1).igs \| 762.9 KB STP STP_WE-RCIS_7847227027 (rev1).stp \| 447.3 KB Electric models ZIP PSP PSpice_WE-RCIS (rev24a).zip \| 3.2 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	14.9	6.5	6.5	1	2.72	10	6.4	100
7847227010	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-RCIS (rev24a).IntLib \| 412.5 KB ZUK Cadstar_WE-RCIS (rev21a).zip \| 5.2 KB CDS Cadence_WE-RCIS (rev24a).zip \| 6.8 MB EAG Eagle_WE-RCIS (rev20a).lbr \| 20.3 KB CAD files ZIP IGS IGS_WE-RCIS_7847227010 (rev1).igs \| 583.6 KB STP STP_WE-RCIS_7847227010 (rev1).stp \| 278.9 KB Electric models ZIP PSP PSpice_WE-RCIS (rev24a).zip \| 3.2 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15	7.1	7	1.5	1	22.5	2	213
7847229020	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-RCIS (rev24a).IntLib \| 412.5 KB ZUK Cadstar_WE-RCIS (rev21a).zip \| 5.2 KB CDS Cadence_WE-RCIS (rev24a).zip \| 6.8 MB EAG Eagle_WE-RCIS (rev20a).lbr \| 20.3 KB CAD files ZIP IGS IGS_WE-RCIS_7847229020 (rev1).igs \| 679.4 KB STP STP_WE-RCIS_7847229020 (rev1).stp \| 383.9 KB Electric models ZIP PSP PSpice_WE-RCIS (rev24a).zip \| 3.2 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	18	9.3	5.5	1.5	1.96	15	2.4	134
7847225100	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-RCIS (rev24a).IntLib \| 412.5 KB CDS Cadence_WE-RCIS (rev24a).zip \| 6.8 MB CAD files ZIP IGS IGS_WE-RCIS_7847225100 (rev1).igs \| 1.2 MB STP STP_WE-RCIS_7847225100 (rev1).stp \| 1 MB Electric models ZIP PSP PSpice_WE-RCIS (rev24a).zip \| 3.2 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	18.2	4	4	0.35	10.4	3.25	33	84
7847239015	SPEC	4 files EDA models: Components ZIP ALT Altium_WE-RCIS (rev24a).IntLib \| 412.5 KB CDS Cadence_WE-RCIS (rev24a).zip \| 6.8 MB CAD files ZIP IGS IGS_WE-RCIS_7847239015 (rev1).igs \| 638.7 KB STP STP_WE-RCIS_7847239015 (rev1).stp \| 331.1 KB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22.6	8.2	6.4	2	1.41	17.5	1.1	105
7847232045	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-RCIS (rev24a).IntLib \| 412.5 KB ZUK Cadstar_WE-RCIS (rev21a).zip \| 5.2 KB CDS Cadence_WE-RCIS (rev24a).zip \| 6.8 MB EAG Eagle_WE-RCIS (rev20a).lbr \| 20.3 KB CAD files ZIP IGS IGS_WE-RCIS_7847232045 (rev1).igs \| 931.5 KB STP STP_WE-RCIS_7847232045 (rev1).stp \| 615.6 KB Electric models ZIP PSP PSpice_WE-RCIS (rev24a).zip \| 3.2 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	25	11.5	6	1.5	4.45	12	3.8	40
