Characteristics
- Ferrite core made of NiZn, a material which works in a broadband frequency range
- Many different types and grades of materials (NiZn) for the best possible interference suppression
- Operating temperature: –25 ºC up to +125 ºC
Applications
- For transistor bases or feed line
- To avoid radio frequency interferences in switching amplifiers
- In power electronics for IGBT- and thyristor circuits
Products

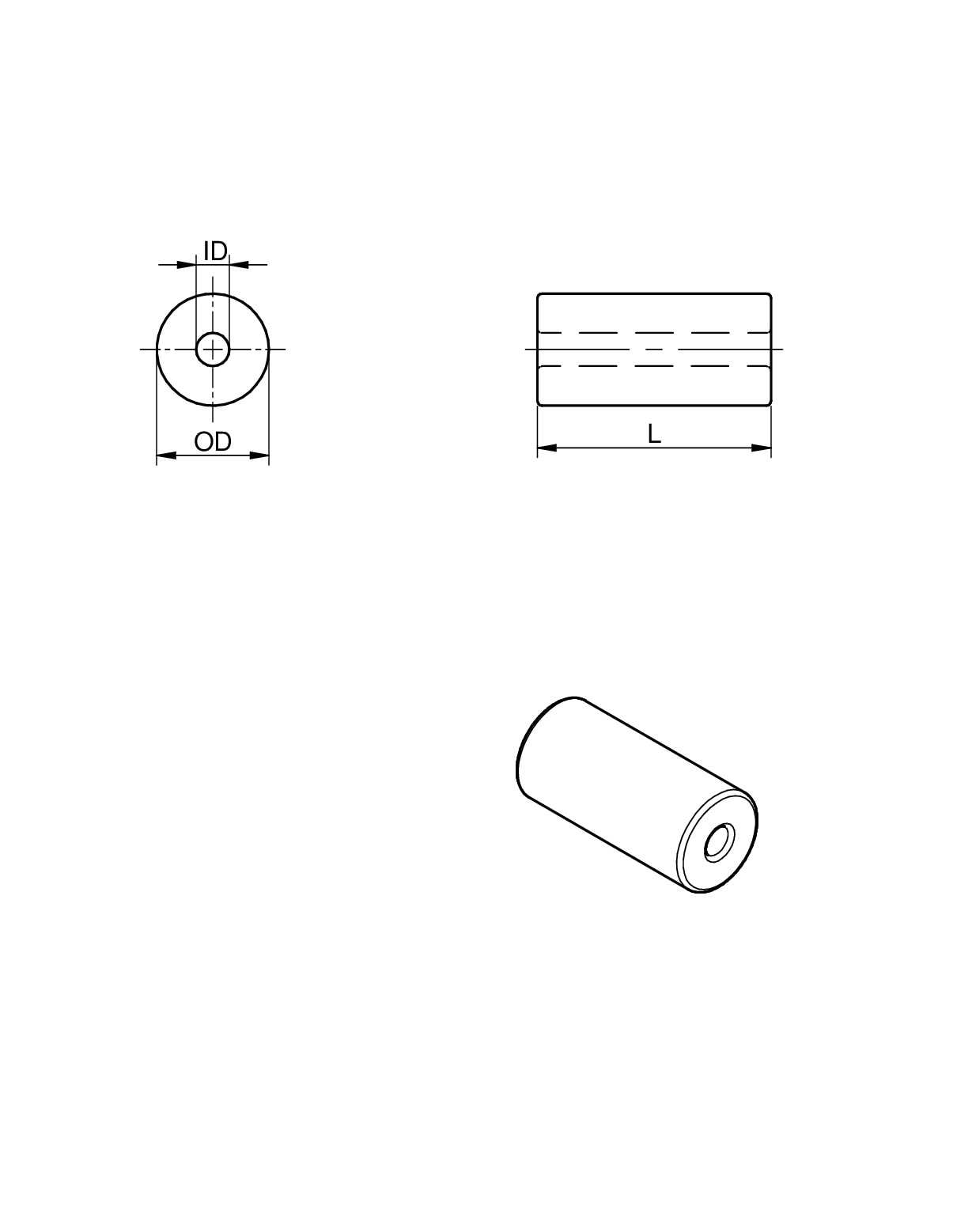

| Order Code | Datasheet | Simulation | Downloads | Status | Ø Cable max. (mm) | Ø OD (mm) | Ø ID (mm) | L (mm) | Z @ 25 MHz 1 turn (Ω) | Z @ 100 MHz 1 turn (Ω) | Material | Samples | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 74270001 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 0.55 | 2.5 | 0.76 | 4 | 38 | 52 | 4 W 1500 | ||
 | 7427002 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 0.85 | 3.5 | 1.2 | 6 | 65 | 125 | 3 W 800 | ||
 | 74270071 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1 | 3.5 | 1.2 | 3 | 28 | 40 | 7 W 800 | ||
 | 74270073 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1 | 3.5 | 1.2 | 4 | 35 | 50 | 7 W 850 | ||
 | 74270010 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1 | 3.5 | 1.2 | 4.5 | 31 | 55 | 3 W 800 | ||
 | 74270017 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1 | 3.8 | 1.58 | 13.97 | 95 | 145 | 4 W 620 | ||
 | 742700713 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1.1 | 3.5 | 1.3 | 5 | 39 | 58 | 7 W 700 | ||
 | 74270011 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1.4 | 4.1 | 1.6 | 3.2 | 28 | 41 | 3 W 800 | ||
 | 74270012 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1.4 | 4.1 | 1.6 | 4 | 39 | 47 | 3 W 800 | ||
 | 74270014 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1.65 | 4 | 2 | 10 | 45 | 68 | 4 W 1500 | ||
 | 74270015 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1.65 | 4 | 2 | 10 | 50 | 95 | 4 W 620 | ||
 | 7427007141 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 1.8 | 4 | 2 | 5 | 25 | 45 | 7 W 700 | ||
 | 74270020 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 2.2 | 7.5 | 2.4 | 7.5 | 71 | 108 | 3 W 800 | ||
 | 74270024 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 2.95 | 7.6 | 3.18 | 10 | 72 | 119 | 4 W 620 | ||
 | 74270025 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 2.95 | 6.35 | 3.18 | 15.88 | 82 | 136 | 4 W 620 | ||
 | 74270021 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 3 | 5.65 | 3 | 9.8 | 55 | 88 | 4 W 620 | ||
 | 74270022 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 3.45 | 6 | 4 | 10 | 35 | 59 | 4 W 1500 | ||
 | 742700726 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 3.6 | 8 | 4 | 30 | 144 | 278 | 7 W 700 | ||
 | 74270023 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 3.7 | 7.7 | 4 | 20 | 90 | 160 | 4 W 620 | ||
 | 742700221 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 3.8 | 6 | 4 | 4 | 20 | 45 | 4 W 1500 | ||
 | 742700727 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | 4 | 9 | 4.2 | 15.5 | 60 | 115 | 7 W 700 |
