OverviewAll product unitsProduct unitPassive ComponentsProduct groupEMC ComponentsProduct familyFerrites for Cable AssemblyMounting StyleSnap Ferrites for Cable AssemblyProduct seriesWE-STAR-FLAT

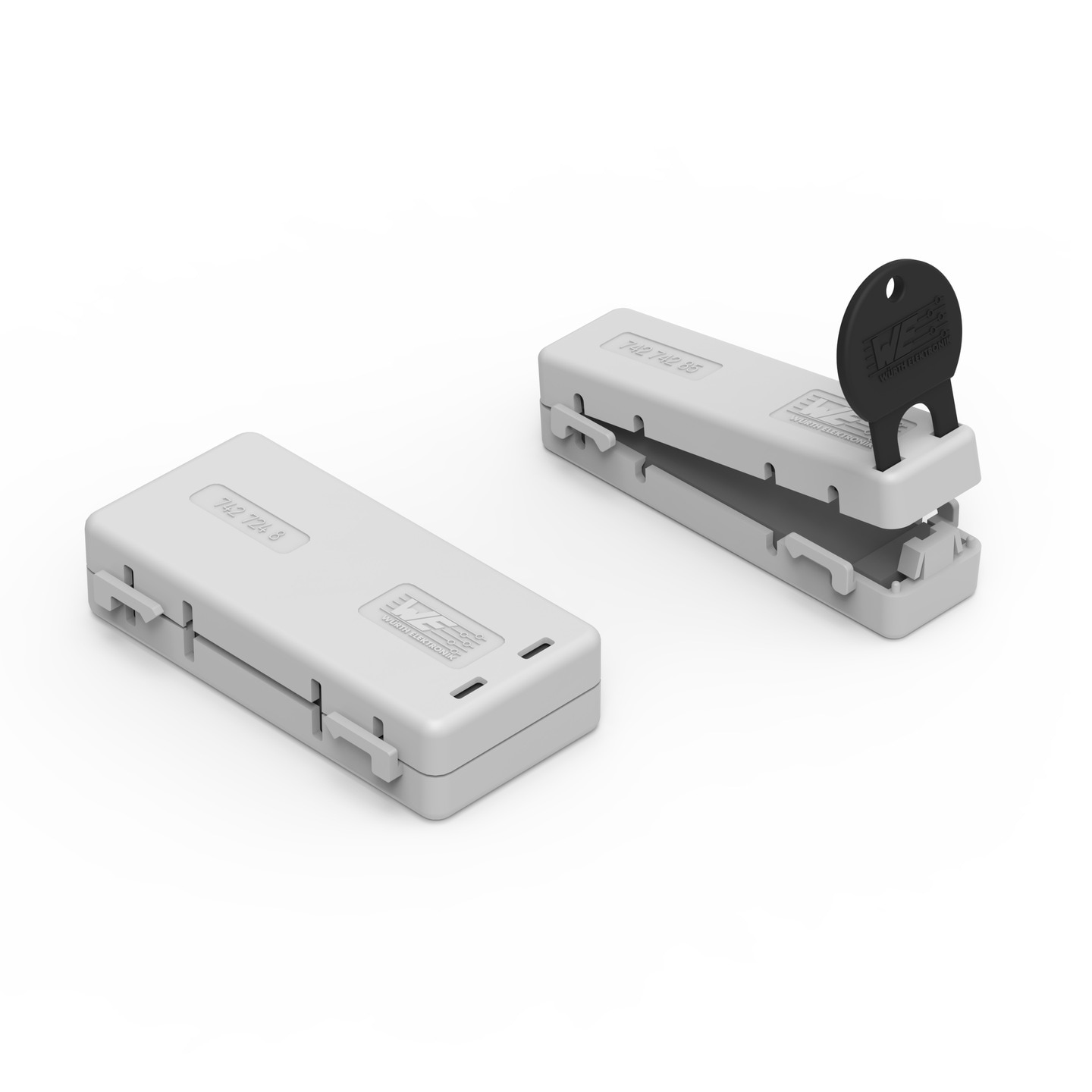

WE-STAR-FLAT

Ribbon Cable Suppressor

WE-STAR-FLAT

Characteristics

  • With reliable flexible cable fixing, developed in-house
  • Cable clamping protection
  • Internal security locking system with key technology WE-STAR-KEY (safety key) prevents unauthorized removing from the cable
  • On request also available with adhesive tape
  • One key in each sample shipment
  • Classification of the plastic housing: UL94 V0
  • Operating temperature: –25 °C to +105 °C
  • Core material: NiZn

Applications

  • Internal and external computer data and power cable
  • Medical technology
  • Ribbon cable
  • Reusable thanks to STAR-KEY technology, ideal for testing and measuring purposes in EMC laboratories

Products

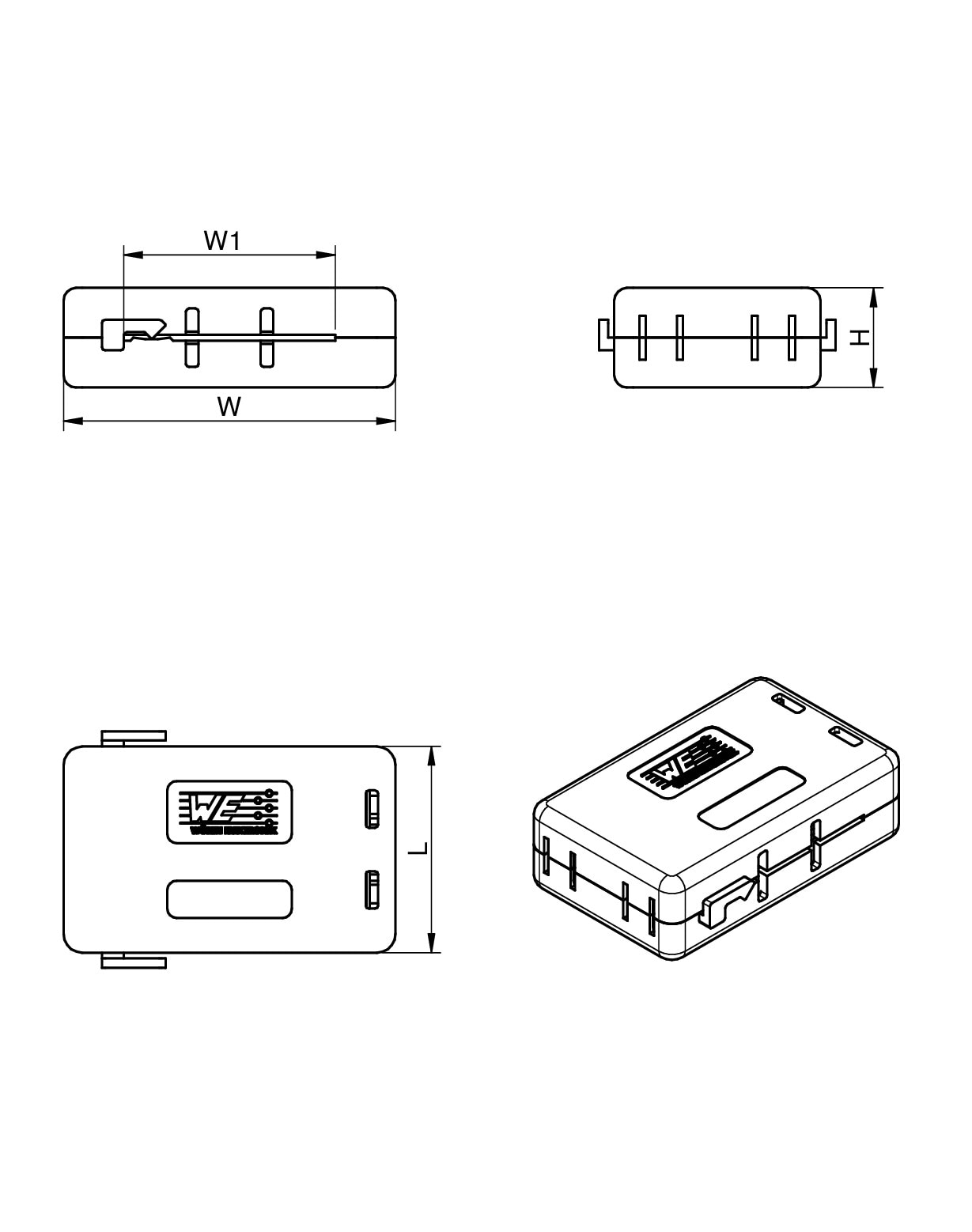

Order Code Data­sheet Simu­lation Downloads StatusNumber of PolesL
(mm)
W
(mm)
W1
(mm)
H
(mm)
Z @ 25 MHz
1 turn
(Ω)
Z @ 100 MHz
1 turn
(Ω)
Z @ 25 MHz
2 turns
(Ω)
Z @ 100 MHz
2 turns
(Ω)
MaterialColorSafety KeyAlpha-Rack Samples
7427246SPEC

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

3 files Active i| Production is active. Expected lifetime: >10 years. 26 33.1 53.3 34 16 97 194 304 572 4 W 620 Grey74271
742707001
74272485SPEC

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

3 files Active i| Production is active. Expected lifetime: >10 years. 40 19.5 71.3 52 16 44 101 242 443 4 W 620 Grey74271
7427248SPEC

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

3 files Active i| Production is active. Expected lifetime: >10 years. 40 33.1 71.3 52 16 78 180 271 495 4 W 620 Grey74271
742707001
74272475SPEC

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

3 files Active i| Production is active. Expected lifetime: >10 years. 50 19.6 84.5 64.5 16 42 114 205 401 4 W 620 Grey74271
742707001
7427247SPEC

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

3 files Active i| Production is active. Expected lifetime: >10 years. 50 33.1 84.5 64.5 16 72 192 205 401 4 W 620 Grey74271
742707001
