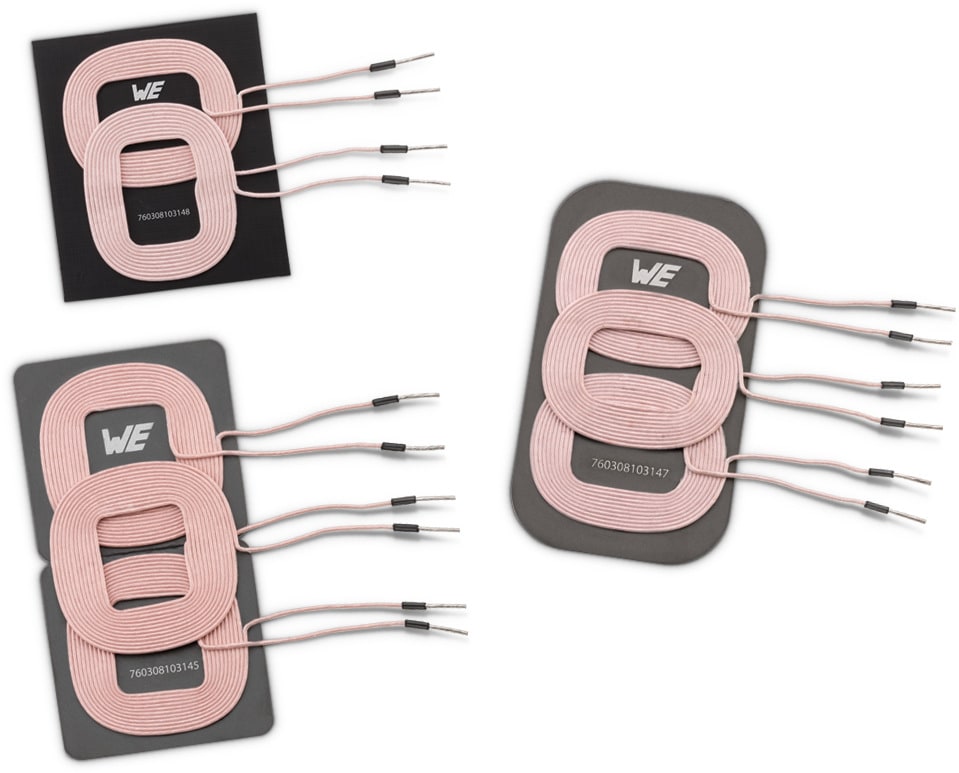

WE-WPCC Wireless Power Array

Characteristics

Qi standard compliant
Litzwire used - highest Q-value available on market
Applicable for up to 15 W (up to 200 W outside the standards)
High permeability shielding
Cancels charging flux to be not coupled into sensitive components or batteries
High reliable construction
Mix and match your tool to find the perfect coil combination: Mix and Match

Applications

Portable devices used in a clean area, where connectors pose a risk of polluting e.g. medical facilities, (industrial) clean rooms, mining industry
Devices with a large number of mating cycles to avoid connector damage: e.g. Smart watches, fitness tracker...
Consumer products: e.g. Digital cameras, baby phone, remote control, smartphone sleeves, watertight products
Explosion sensitive area where the use of a physical connection is hazardous
Support for your development: Use the Wireless Power 15W Kit
Which products can be offered by Würth Elektronik for Wireless Power Transmission?

Application Notes

Wireless Power Transfer Coils WE-WPCC

Wireless Power Transfer Coils WE-WPCC offer the best performance with highest Q-factor and lowest RDC values.

Product video and more information here!For customer support, please click here!

Products

Order Code	Datasheet	Downloads	Status	Compliance	Size	L₁ (µH)	L₂ (µH)	L₃ (µH)	I_{R DC1} (A)	I_{R DC2} (A)	I_{R DC3} (A)	R_{DC max.} (mΩ)	R_{DC2 max.} (mΩ)	R_{DC3 max.} (mΩ)	f_{res 1} (MHz)	f_{res 2} (MHz)	f_{res 3} (MHz)	P (W)
760308103148	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-WPCC (rev24a).IntLib \| 9.3 MB ZUK Cadstar_WE-WPCC (rev20a).zip \| 27 KB CDS Cadence_WE-WPCC (rev19c).zip \| 49.4 MB EAG Eagle_WE-WPCC (rev24a).lbr \| 366 KB CAD files ZIP 3D 3d_760308103148 (rev1).pdf \| 748.2 KB IGS Download_IGS_WE-WPCC-760308103148 (rev1).igs \| 2.9 MB STP Download_STP_WE-WPCC-760308103148 (rev1).stp \| 877.1 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	A28 two-coil array	71 x 61 x 4 mm	6.9	6.4	–	8.5	8.5	–	52	52	–	15	19	–	150
760308103147	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-WPCC (rev24a).IntLib \| 9.3 MB ZUK Cadstar_WE-WPCC (rev20a).zip \| 27 KB CDS Cadence_WE-WPCC (rev19c).zip \| 49.4 MB EAG Eagle_WE-WPCC (rev24a).lbr \| 366 KB CAD files ZIP 3D 3d_760308103147 (rev1).pdf \| 394.3 KB IGS Download_IGS_WE-WPCC-760308103147 (rev1).igs \| 1.3 MB STP Download_STP_WE-WPCC-760308103147 (rev1).stp \| 519.7 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	MP-A8 3-coil array	100 x 55 x 5.2 mm	8.5	7.5	8.5	9	10	9	56	56	56	11	11	11	150
760308106	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-WPCC (rev24a).IntLib \| 9.3 MB ZUK Cadstar_WE-WPCC (rev20a).zip \| 27 KB CDS Cadence_WE-WPCC (rev19c).zip \| 49.4 MB EAG Eagle_WE-WPCC (rev24a).lbr \| 366 KB CAD files ZIP 3D 3d_760308106 (rev1).pdf \| 1.3 MB IGS 760308106 (rev1).igs \| 4.1 MB STP 760308106 (rev1).stp \| 881.2 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Qi - A6	130 x 55 x 8 mm	12.5	11.5	12.5	9	9	9	65	65	65	14	14	14	150
760308104119	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-WPCC (rev24a).IntLib \| 9.3 MB ZUK Cadstar_WE-WPCC (rev20a).zip \| 27 KB CDS Cadence_WE-WPCC (rev19c).zip \| 49.4 MB EAG Eagle_WE-WPCC (rev24a).lbr \| 366 KB CAD files ZIP 3D 3d_760308104119 (rev1).pdf \| 1 MB IGS 760308104119 (rev1).igs \| 3.1 MB STP 760308104119 (rev1).stp \| 1.7 MB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Qi - A19	88 x 52 x 3.5 mm	12	11.5	–	8	8	–	68	68	–	12	12	–	150
760308104120	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-WPCC (rev24a).IntLib \| 9.3 MB ZUK Cadstar_WE-WPCC (rev20a).zip \| 27 KB CDS Cadence_WE-WPCC (rev19c).zip \| 49.4 MB EAG Eagle_WE-WPCC (rev24a).lbr \| 366 KB CAD files ZIP 3D 3d_760308104120 (rev1).pdf \| 831.9 KB IGS Download_IGS_760308104120 (rev1).igs \| 1.2 MB STP Download_STP_760308104120 (rev1).stp \| 734.8 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Qi - A28	92 x 50 x 5.5 mm	6.9	6.4	6.9	9	9	9	45	38	38	15	15	15	150
760308103145	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-WPCC (rev24a).IntLib \| 9.3 MB ZUK Cadstar_WE-WPCC (rev20a).zip \| 27 KB CDS Cadence_WE-WPCC (rev19c).zip \| 49.4 MB EAG Eagle_WE-WPCC (rev24a).lbr \| 366 KB CAD files ZIP 3D 3d_760308103145 (rev1).pdf \| 881.2 KB IGS Download_IGS_WE-WPCC-760308103145 (rev1).igs \| 3.1 MB STP Download_STP_WE-WPCC-760308103145 (rev1).stp \| 956.7 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Qi - MP-A6	109 x 56 x 5.2 mm	11.3	11.3	11.3	8.5	8.5	8.5	83	83	83	10	10	10	150
760308103149	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-WPCC (rev24a).IntLib \| 9.3 MB ZUK Cadstar_WE-WPCC (rev20a).zip \| 27 KB CDS Cadence_WE-WPCC (rev19c).zip \| 49.4 MB EAG Eagle_WE-WPCC (rev24a).lbr \| 366 KB CAD files ZIP 3D 3d_760308103149 (rev1).pdf \| 1.2 MB IGS Download_IGS_WE-UtWPCC-Tx-760308103149 (rev1).igs \| 3.5 MB STP Download_STP_WE-UtWPCC-Tx-760308103149 (rev1).stp \| 894.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Qi - MP-A9 3-coil array	106 x 57 x 4.2 mm	10.2	9.8	10.2	9	9	9	55	55	55	8	8	8	150
760308103113	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-WPCC (rev24a).IntLib \| 9.3 MB ZUK Cadstar_WE-WPCC (rev20a).zip \| 27 KB CDS Cadence_WE-WPCC (rev19c).zip \| 49.4 MB EAG Eagle_WE-WPCC (rev24a).lbr \| 366 KB CAD files ZIP 3D 3d_760308103113 (rev1).pdf \| 1.5 MB IGS Download_IGS_WE-UtWPCC-Tx-760308103113 (rev1).igs \| 4.5 MB STP Download_STP_WE-UtWPCC-Tx-760308103113 (rev1).stp \| 1.1 MB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Qi - MP-A13 3-coil array	100 x 55 x 4.5 mm	12.5	11.5	12.5	9	9	9	65	65	65	14	14	14	150

	Order Code	Datasheet	Simulation
	760308103148	SPEC
	760308103147	SPEC
	760308106	SPEC
	760308104119	SPEC
	760308104120	SPEC
	760308103145	SPEC
	760308103149	SPEC
	760308103113	SPEC

Samples

	Order Code	Datasheet	Simulation	Downloads	Status	Compliance	Size	L₁ (µH)	L₂ (µH)	L₃ (µH)	I_{R DC1} (A)	I_{R DC2} (A)	I_{R DC3} (A)	R_{DC max.} (mΩ)	R_{DC2 max.} (mΩ)	R_{DC3 max.} (mΩ)	f_{res 1} (MHz)	f_{res 2} (MHz)	f_{res 3} (MHz)	P (W)	Samples
