WE-XTAL Watch Crystals

Size	L (mm)	W (mm)	H (mm)

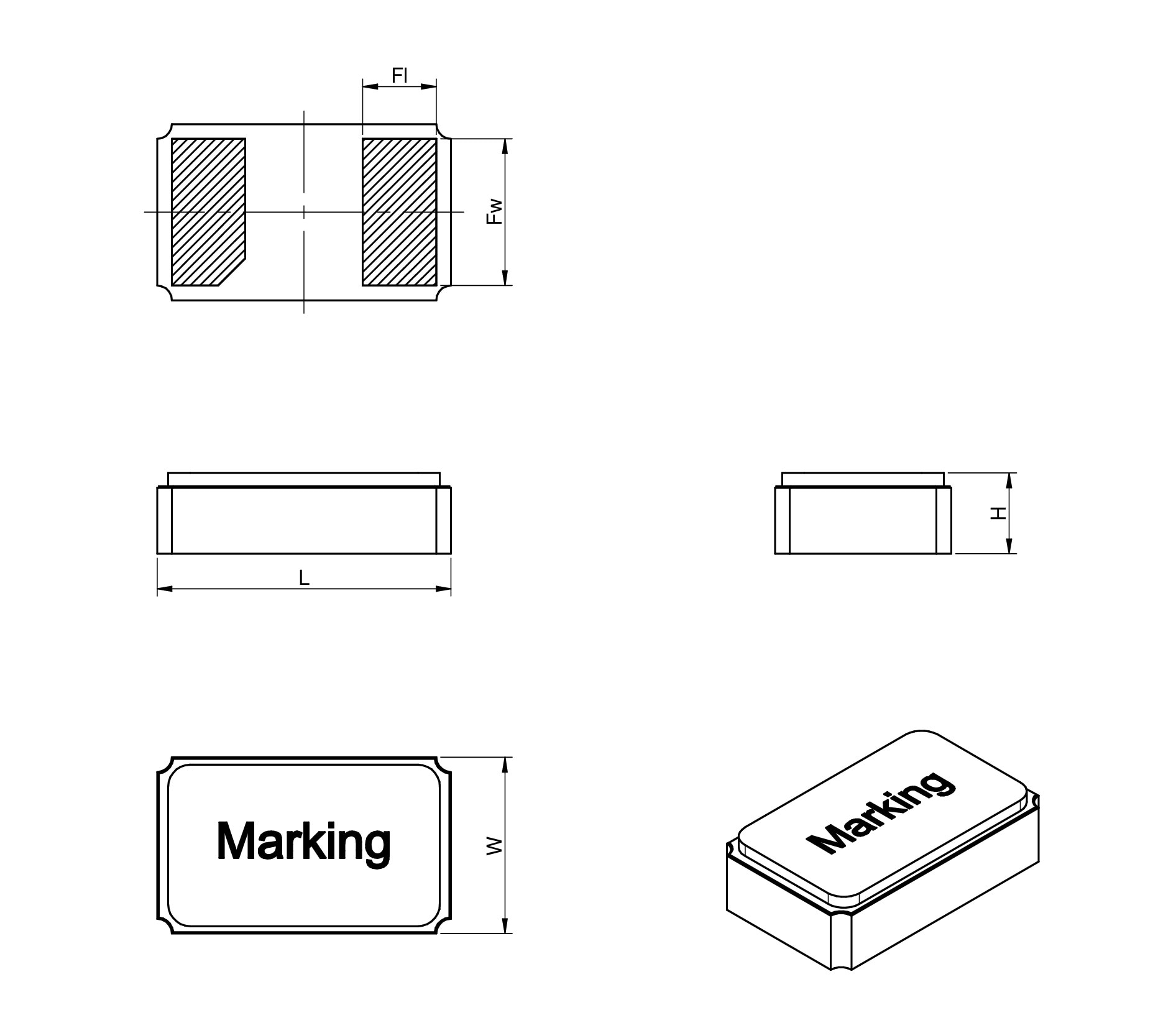

IQXC-25	2	1.2	0.6

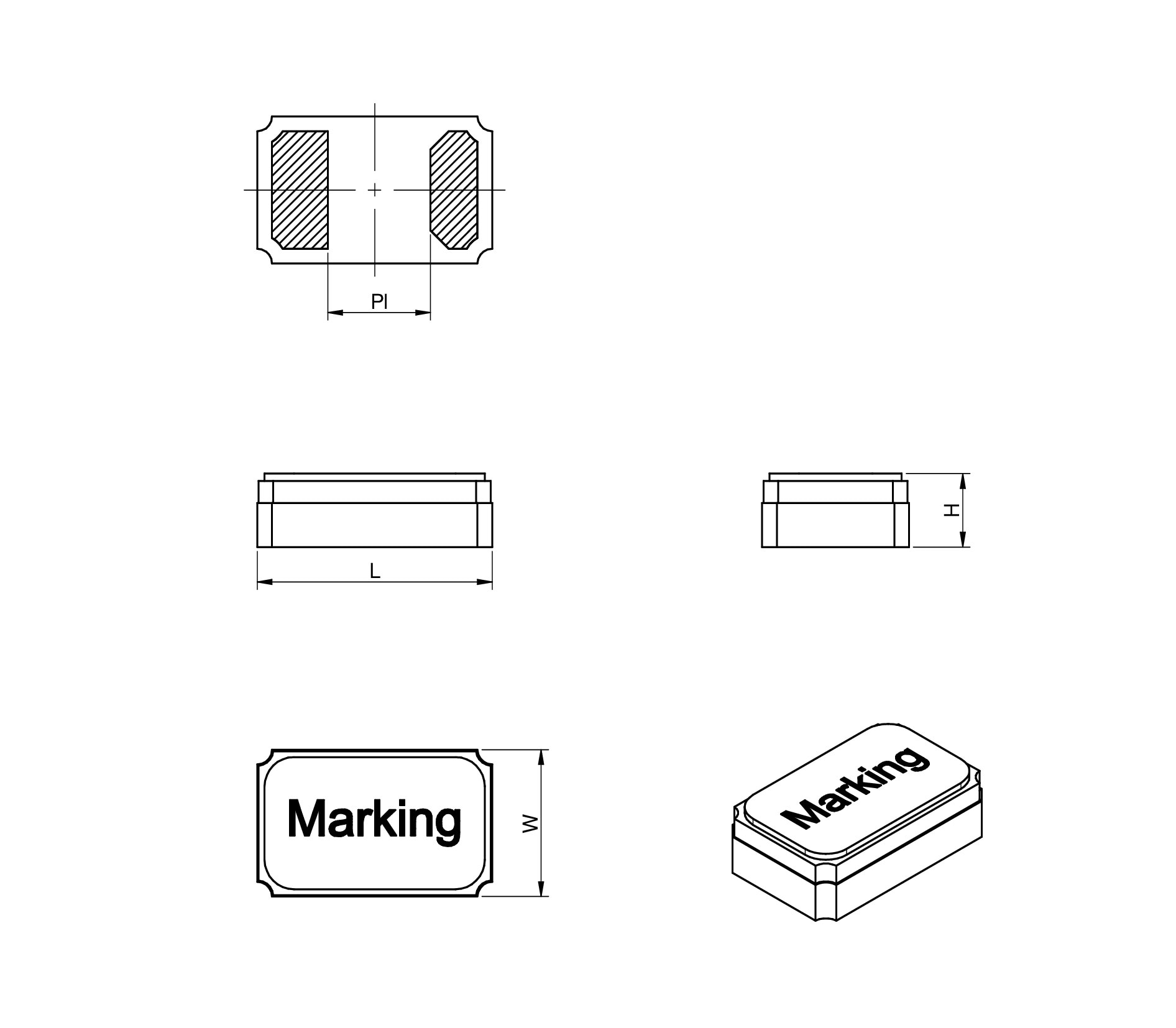

IQXC-90	1.6	1	0.5

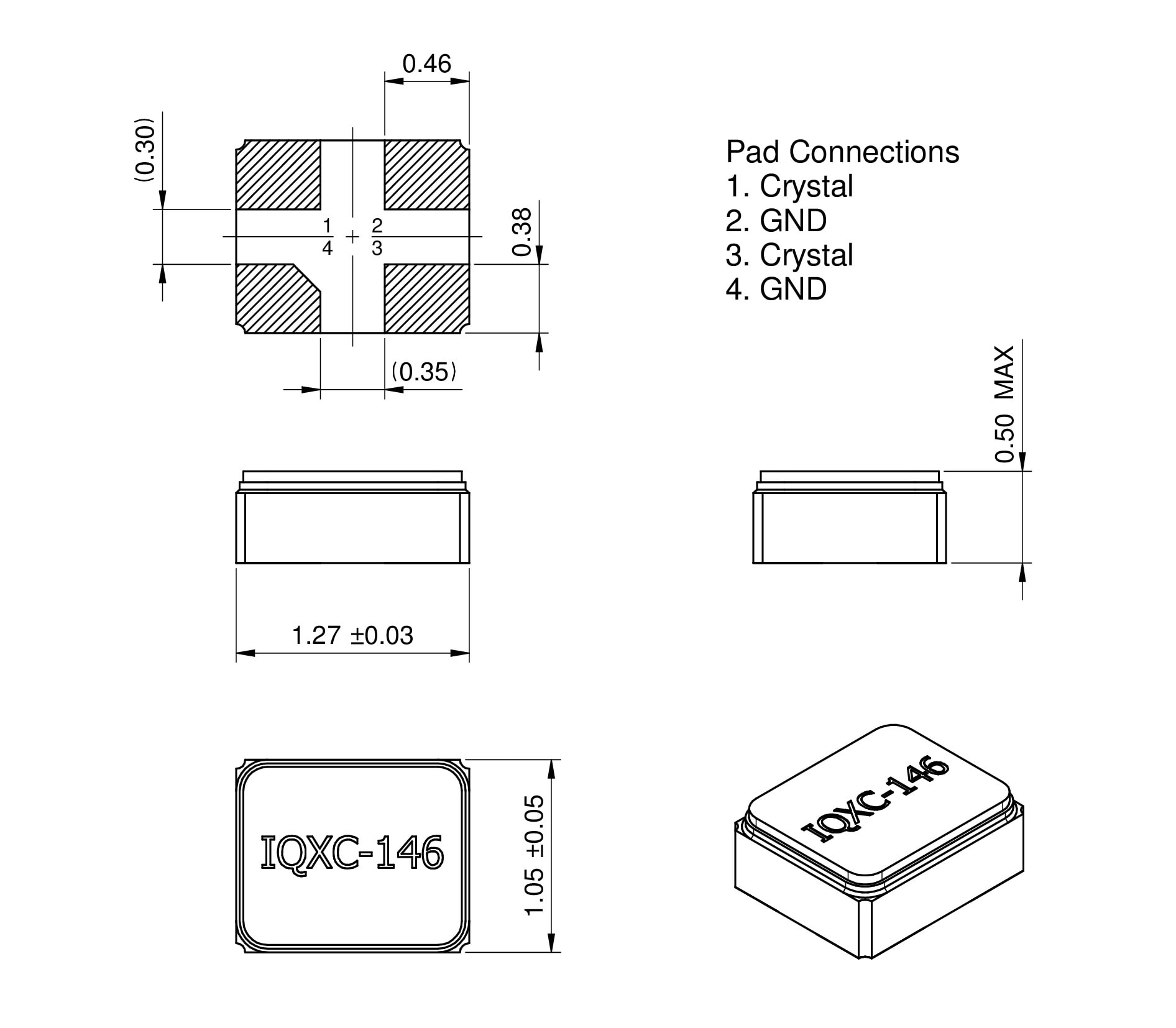

IQXC-146	1.2	1	0.5

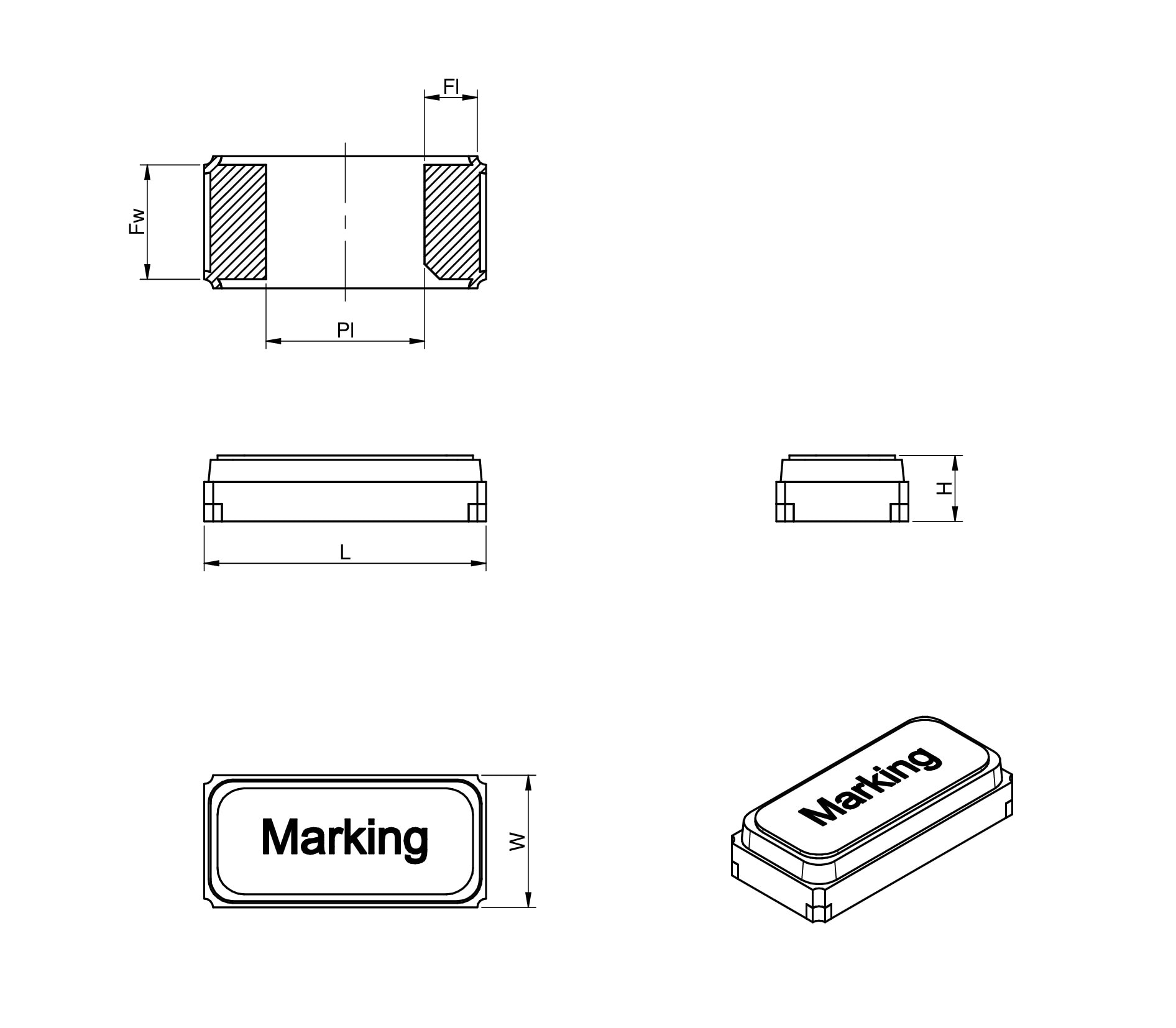

CFPX-217	3.2	1.5	0.9

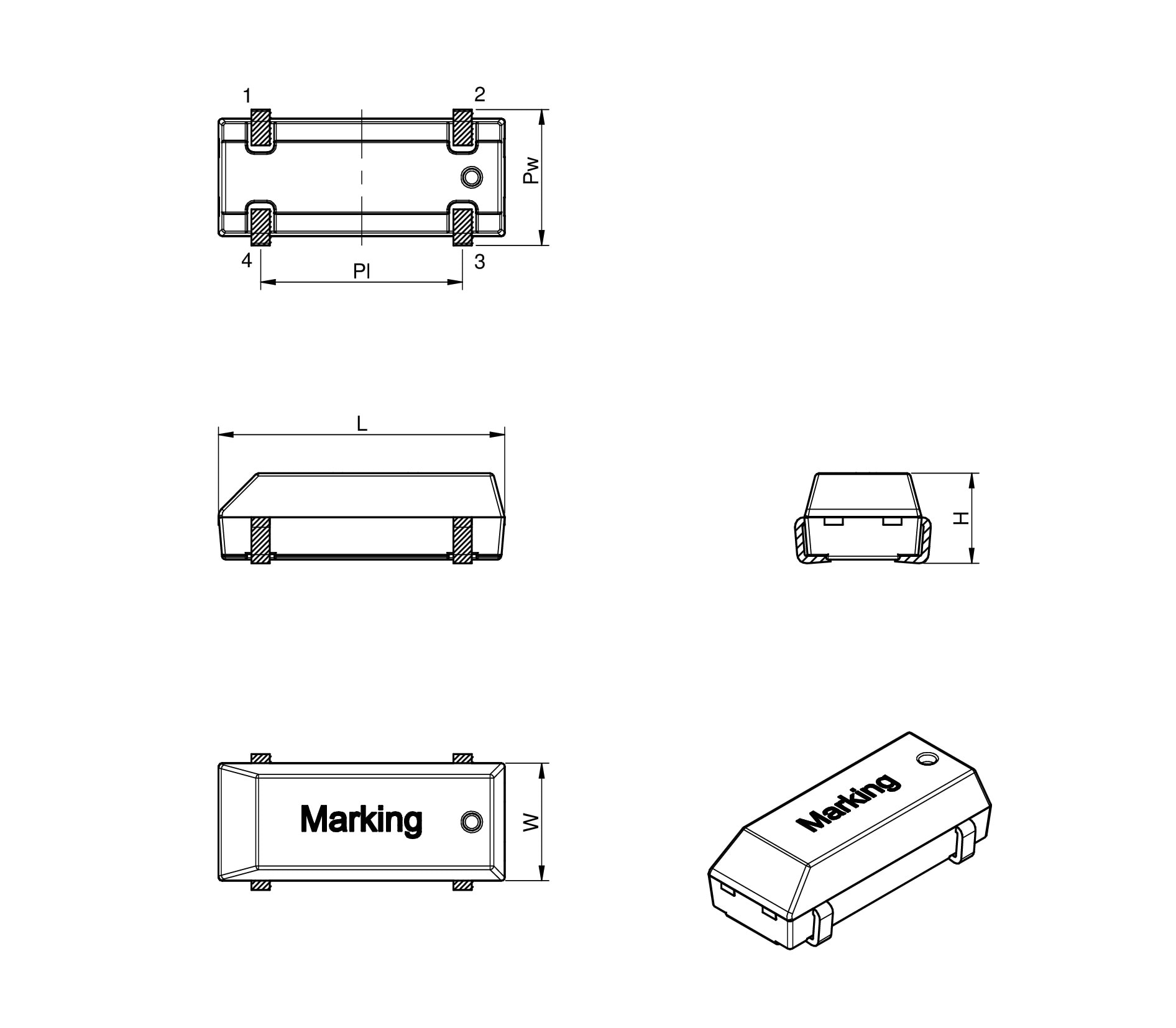

85SMX	8.7	3.7	2.5

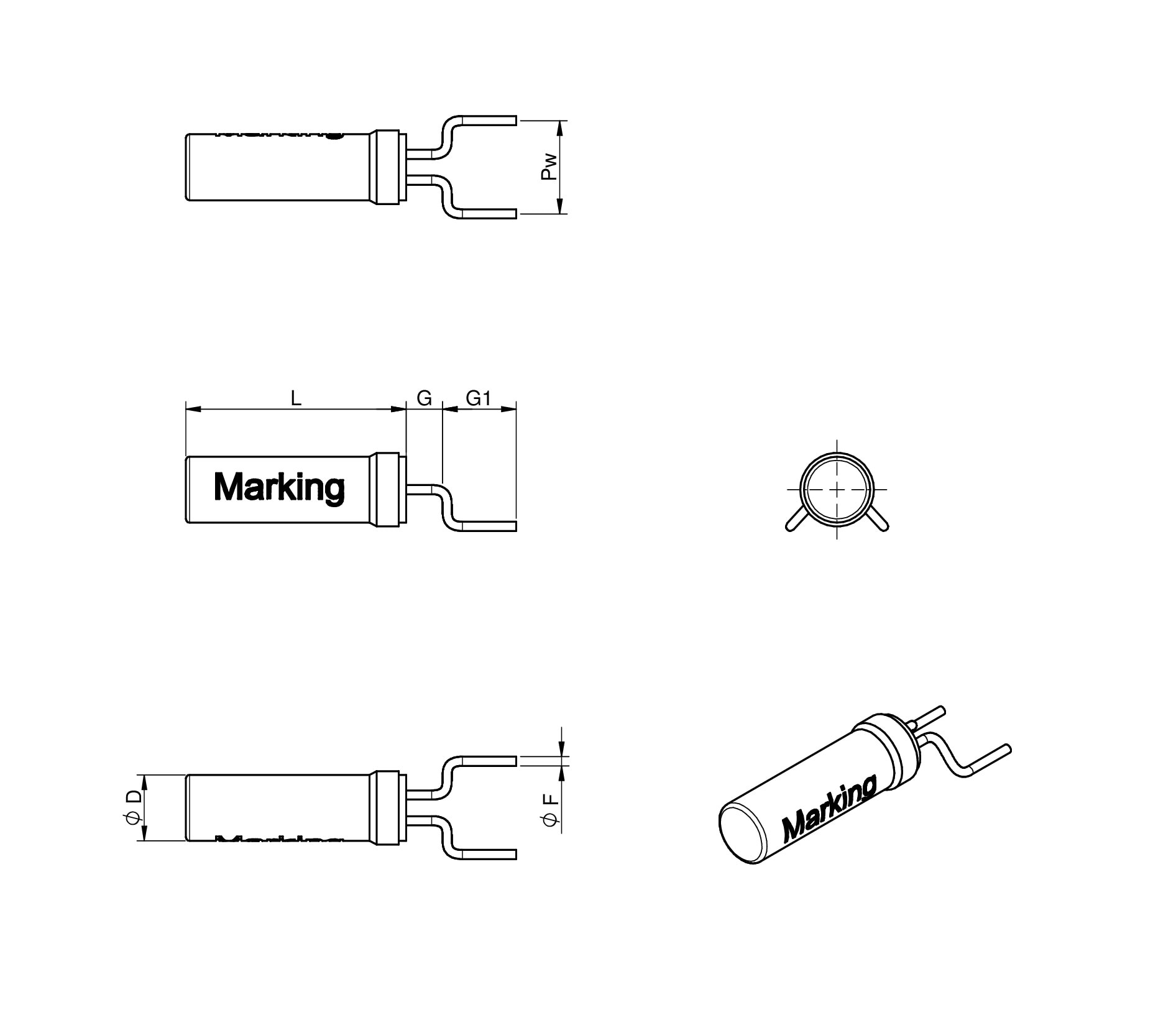

CFPX-56	9.5	2.54	2.54

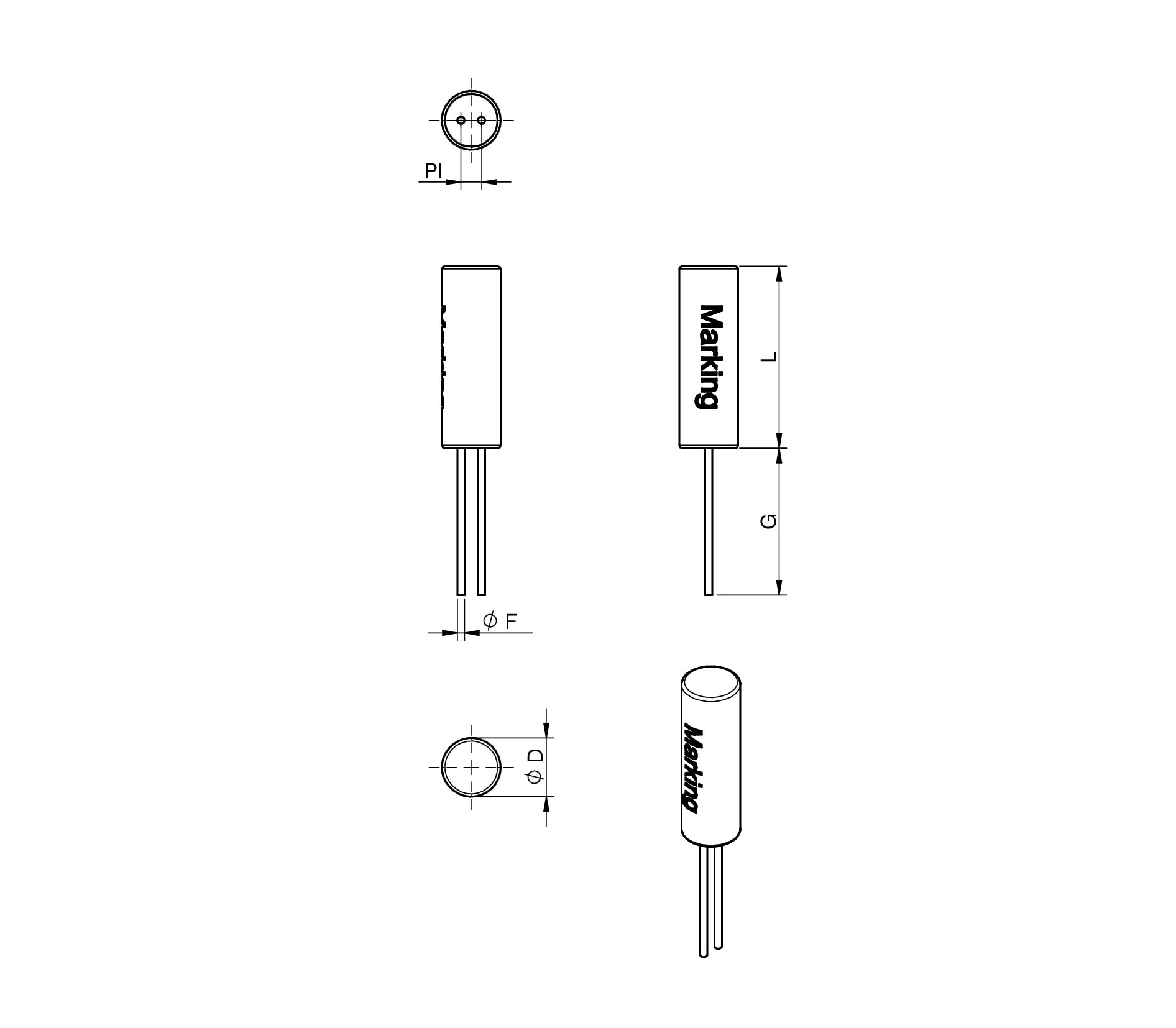

WATCH	-	-	-

Characteristics

SMT and THT models
Hermetically sealed
Frequency: 32.768 kHz
Tolerances down to ±10 ppm available

Applications

Microprocessor
Real Time Clocks
Test and Measurement Equipment
Battery powered Applications

Products

All

IQXC-25

IQXC-90

IQXC-146

CFPX-217

85SMX

CFPX-56

WATCH
