Metis Analyzer Tool

Size	Dimensions	L (mm)	W (mm)	H (mm)
WIRL-EVAL		74	23.65	12

Characteristics

The software only works in combination with a licensed USB radio stick AT2 which comes included in this package. The USB radio stick acts the receiver for telegrams from intelligent meters and supports the S,T,C modes.
The Analyzer tool package includes the following:
- 1 x USB RF stick AT2 ( Caution : This is NOT the Mimas-I , Metis-I or Metis-II radio stick )
- 1 x SMA antenna
- 1 x USB data stick with Analyzer Software and Documentation
Tool for monitoring and analysis of wireless M-BUS communication
Packet content visualization
Supports data records according to EN13757-3:2013 standard
OMS (Open metering System) parser (according to OMS 4.1.0 draft 06/2016)
Message parser for deep packet analysis incl. M-BUS application layer
Decryption function (AES128) for security profiles A and B (encryption modes 5 and 7)
Log feature (.xlsx, MS Excel) for offline analysis
Various wireless M-BUS modes supported (S-, T- and C-Mode)
Colorful presentation of the possible information

Application Notes

See what the firmware developed by Würth Elektronik can do - the WE-ProWare

Products

WIRL-EVAL

Order Code	Datasheet	Simulation	Manual	Downloads	Status	Description	Frequency Range (MHz)	d_LoS (m)	P_{Tx, 50 Ω} (dBm)	Rx_{sens, 50 Ω} (dBm)	R_{b max.} (kbps)	L (mm)	W (mm)	H (mm)	Antenna	Offer
2607057283011	SPEC		PDF	–	Active i\| Production is active. Expected lifetime: >10 years.	Metis - Analyzer Tool	868.3 - 869.525	800	14	-106	100	74	23.65	12	Hyperion-I

Order Code	Datasheet	Simulation
2607057283011	SPEC

Offer

Order Code	Datasheet	Simulation	Manual	Downloads	Status	Description	Frequency Range (MHz)	d_LoS (m)	P_{Tx, 50 Ω} (dBm)	Rx_{sens, 50 Ω} (dBm)	R_{b max.} (kbps)	L (mm)	W (mm)	H (mm)	Antenna	Offer

Software Downloads

Software for Analyzer Tool

The USB data stick that comes with this package contains the Analyzer tool software. The Analyzer is an excellent tool for analyzing wireless M-Bus packages. Thanks to the simplified representation and an integrated logging function, data can also be analyzed at a later time. Simply extract the files out of the data stick to a location on your hard disk where you have full read/write access. This directory will contain all required files and folders as well as the associated documentation and licenses. It must be accessible (full access) by any user which is about to use this software.

Wireless Connectivity SDK

The aim of the Wireless Connectivity Software Development Kit (SDK) is to minimize the effort required on customer side to enable his host MCU to communicate with Würth Elektronik eiSos radio modules. It contains the implementation of all available commands in pure C-code. In order to integrate any Würth Elektronik eiSos wireless module, the user has to simply port the corresponding C-code to his host processor. This significantly reduces the time needed for developing the software interface to the radio module.

Download now on GitHub

ACC Tool

The "ACC V3" is a tool to update and configure certain Würth Elektronik eiSos modules. The supported features will include the search and upload of new firmwares as well as the modification of the available configuration parameters. It allows full user control over all supported products, as in the range of the producer’s intentions, always referring to the respective manual of the connected module.

Due to current export legal restrictions, we are required to control the provision of software. To download the software, please contact our technical support or your local sales representative directly. Thank you for your understanding.

Wireless M-Bus

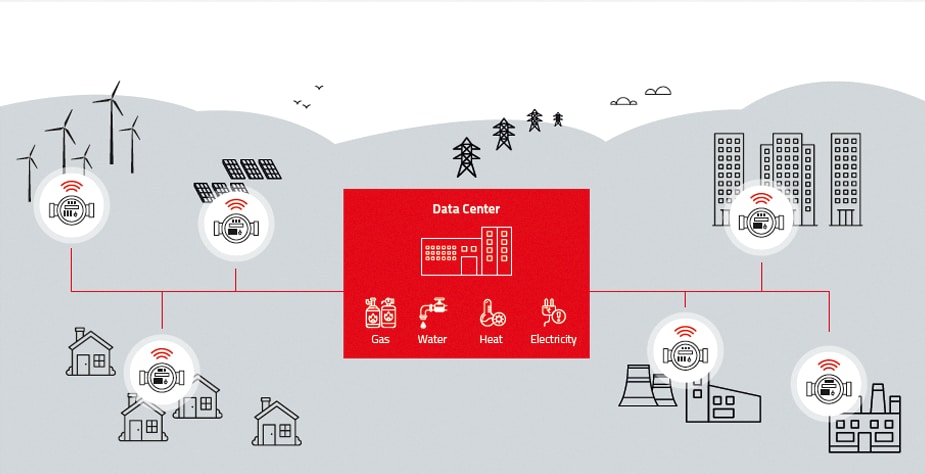

Wireless Meter Bus (wM-BUS) is the extension of the meter Bus (M-BUS) with a wireless protocol and role scheme for handling communication over a standardized wireless communication interface between meters and data loggers – so called smart meter gateways (SMGW). This scheme is specified by the European standard EN 13757 and its sub-standards. The motivation of this standard is to allow an automated measuring and processing of data, track the usage of resources and to optimize provisioning in order to create an “Advanced Metering Infrastructure” (AMI).

Such Smart grid / meter devices are typically battery operated and in need for a long range and robust wireless communication. This is the reason for using the Sub GHz frequencies in the free ISM Bands. EN13757-4 is specifying radio options in the 169 MHz, 434 MHz or 868 MHz band, regarding to the region.

User Application

Advantages for the Customers

„Almost live“ data access on his currently use of resources including a “live” cost estimation instead of yearly billing
Comparison on a day-by-day basis when data is available
No costs for the manual readout, no huddle with a yearly appointment for manual meter readout person
Secure due to encryption, only the owner of the data knows the key required for decrypting the messages of the meters
Several metering providers can share a single Smart meter Gateway (water, gas, electricity, heat cost, …)

Disadvantages for the Customers

High initial costs: Smart meter gateway and meters with wireless interface
Battery lifetime requires exchanging devices each 7 - 10 years in case of battery operated devices – due to security reasons “just” changing the battery is often prevented
