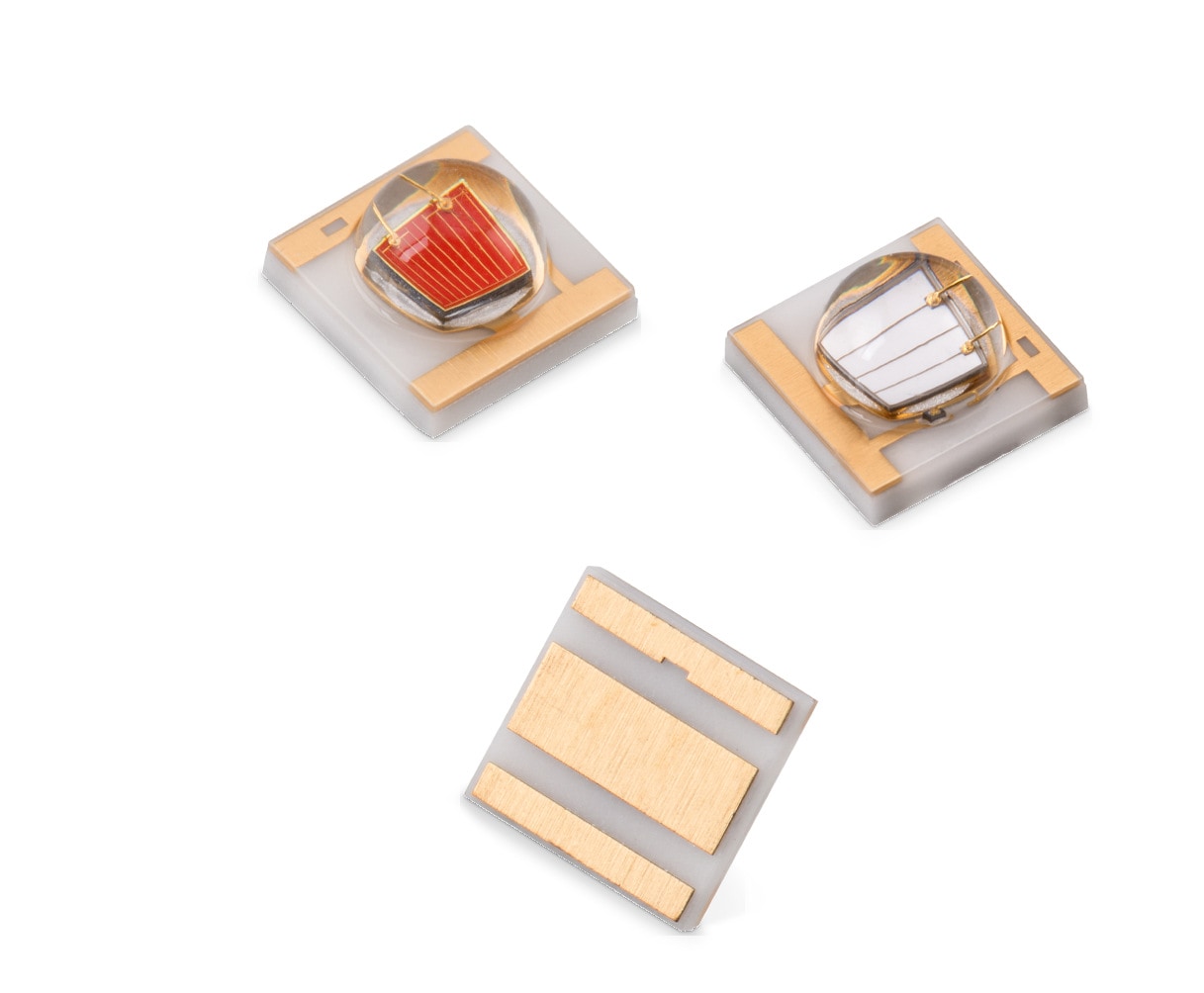

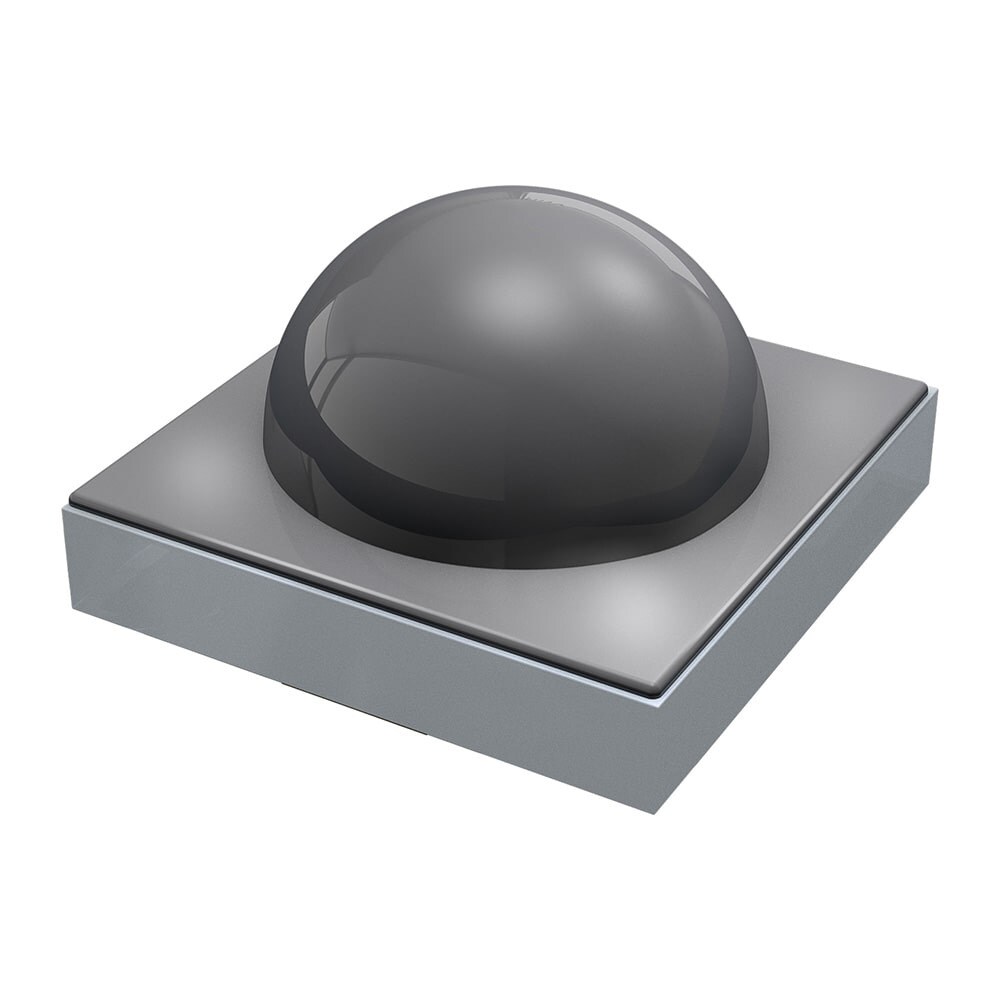

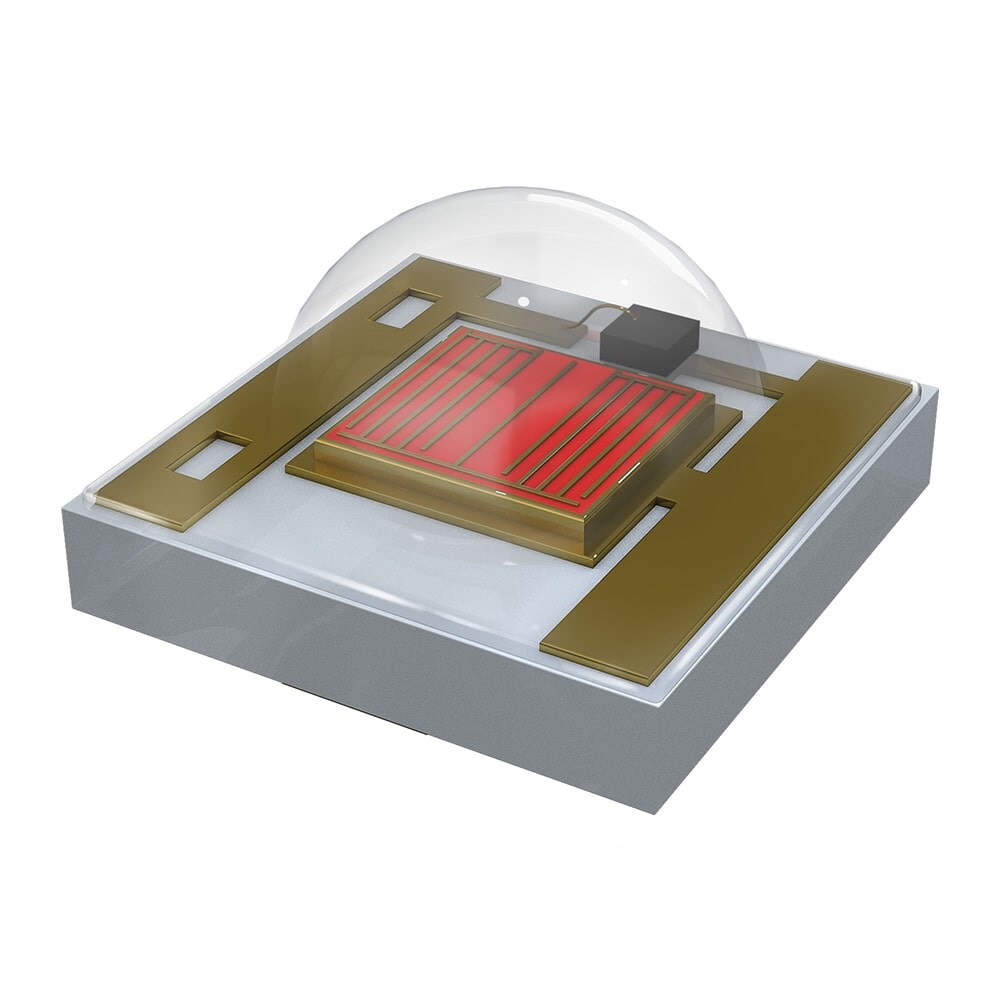

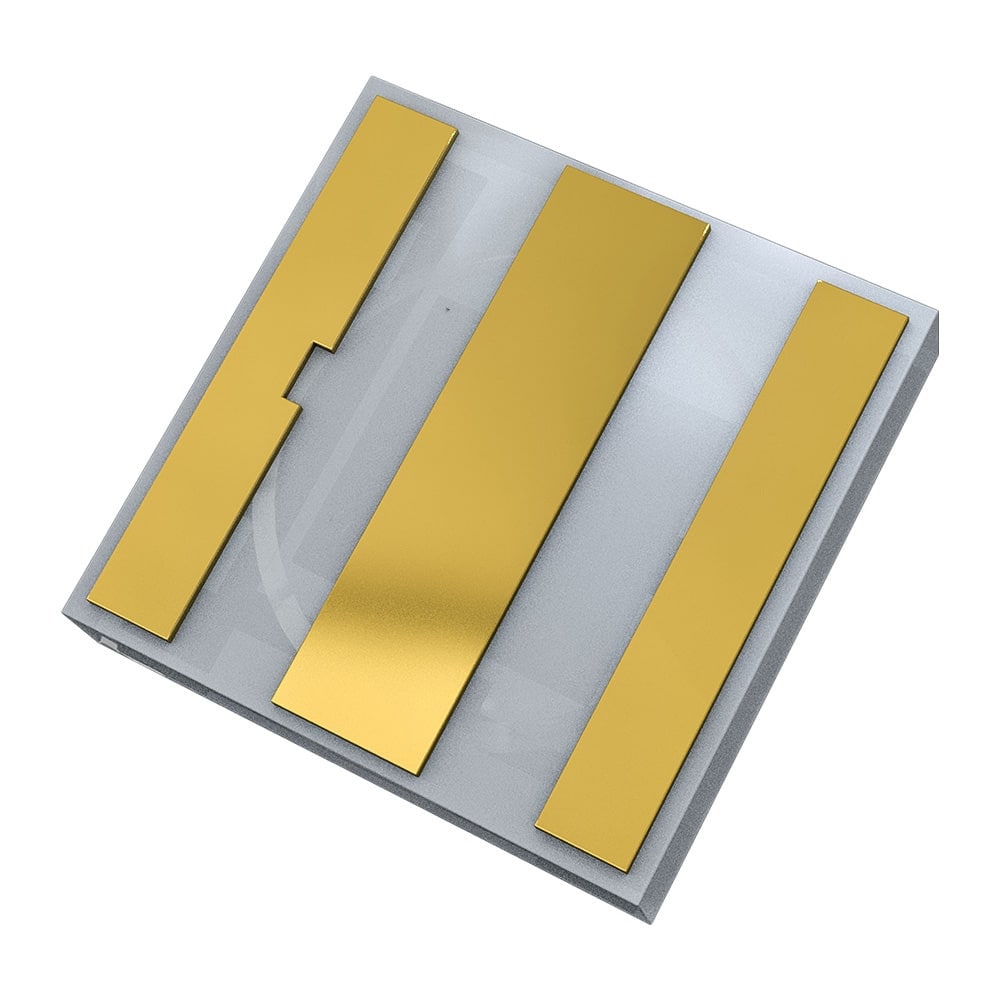

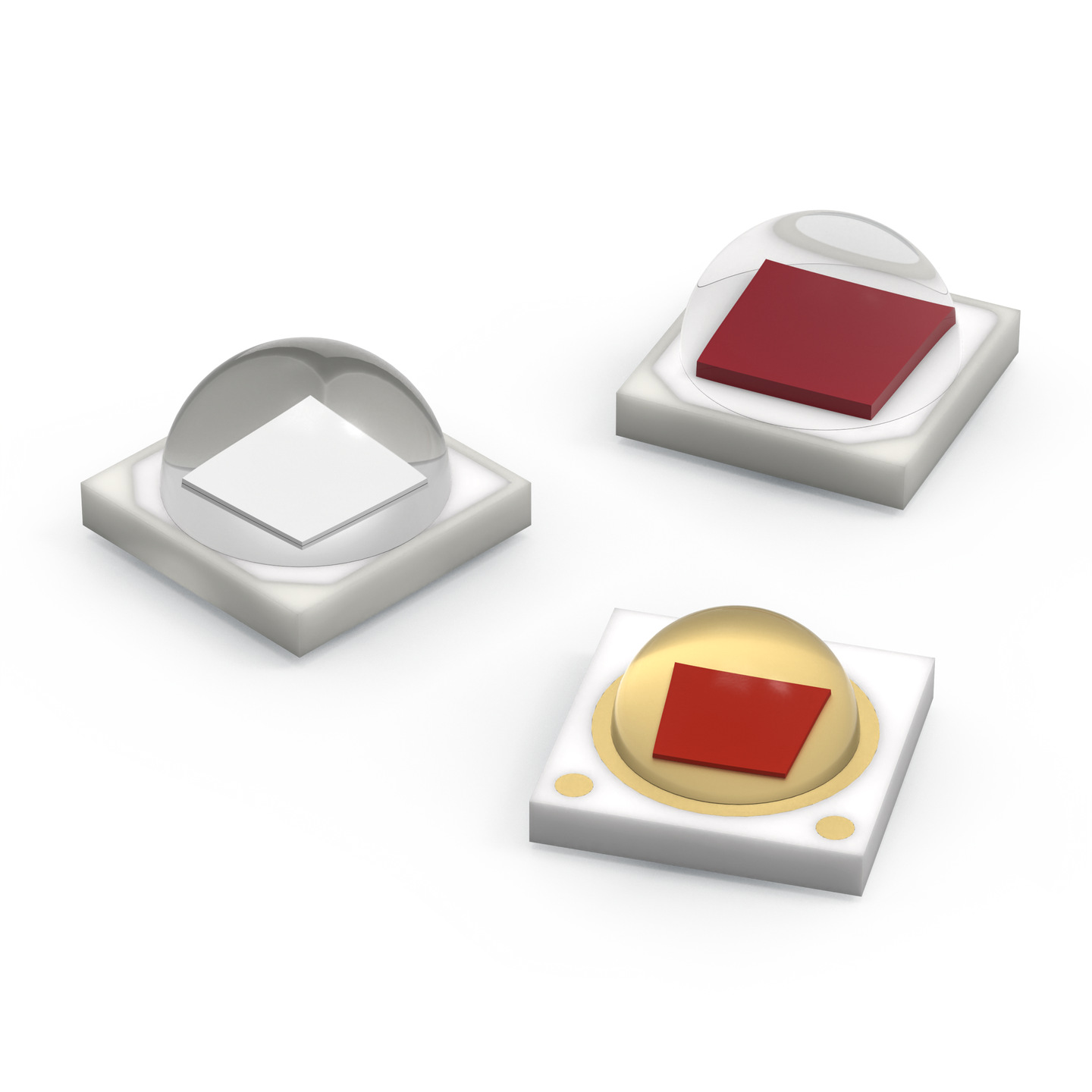

WL-SMDC SMT Mono-color Ceramic LED Waterclear

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount
3535		3.4	3.4	2.1	SMT

LTSpice files

LT
LTSpice_WL-SMDC (rev22a).zip
|
2 KB

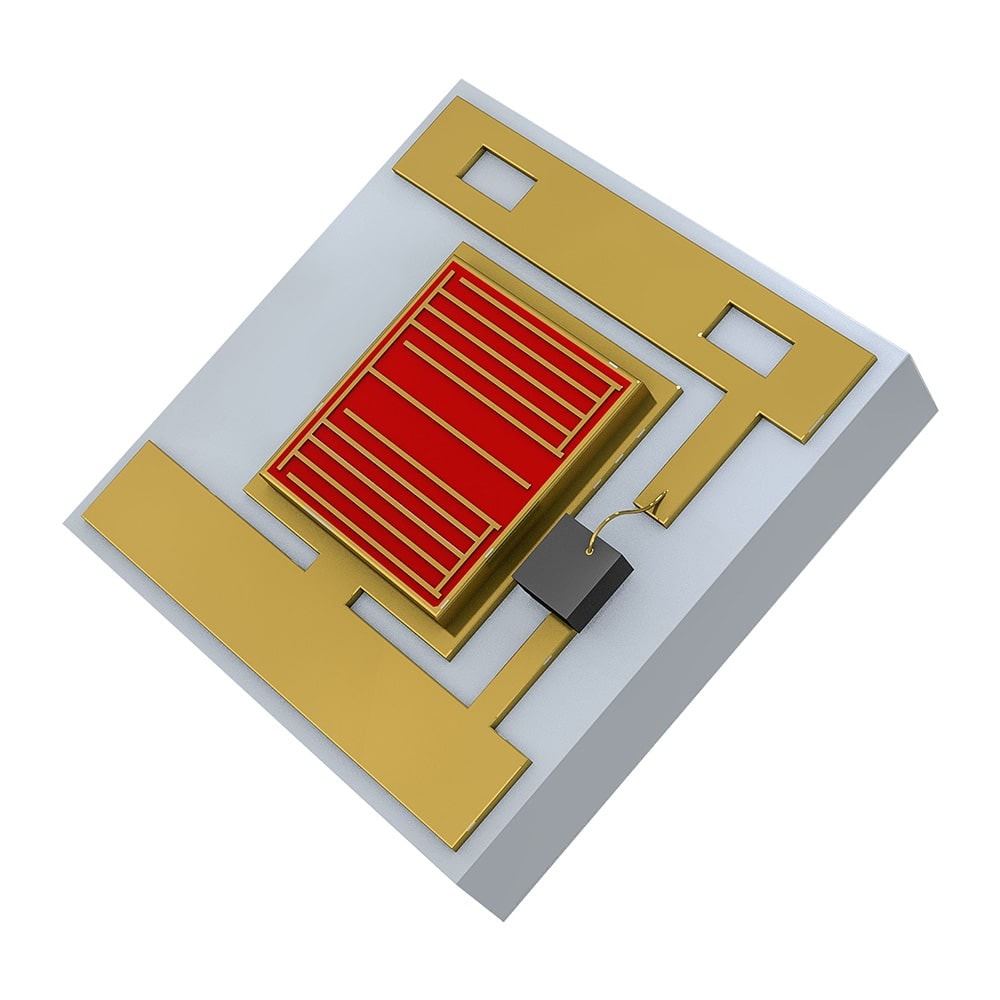

Characteristics

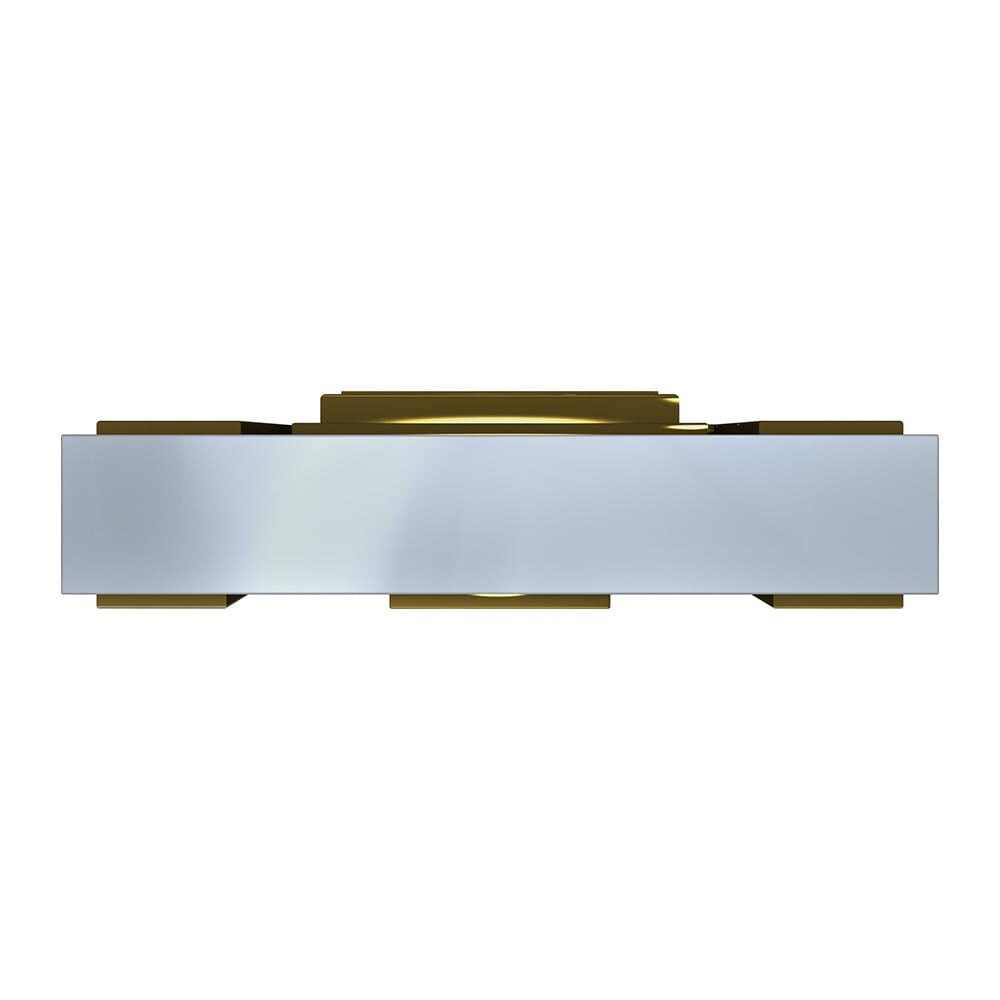

SMT ceramic package with high efficiency
Waterclear silicone lense
High brightness with minimal side emission
Flexible coupling with secondary optic
Viewing angle: 125°
Moisture Sensitivity Level: 2

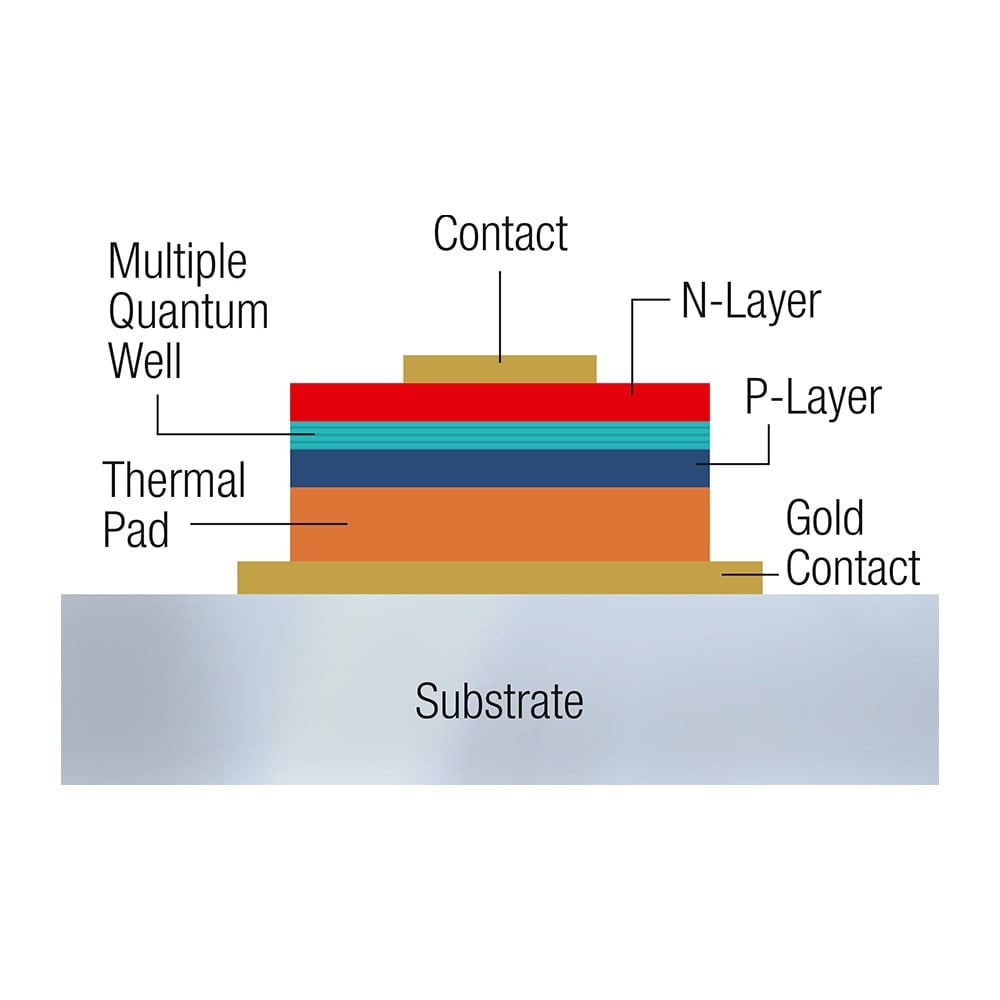

Electrically neutral thermal path
Low thermal resistance: 8/10 K/W
LED junction temperature: 125°C/ 150°C

Applications

Horticultural lighting
Aquarium lighting
Grow box lamps
Vertical indoor farming

Application Notes

Products

3535

Order Code	Datasheet	Downloads	Status	Emitting Color	λ_{Peak typ.} (nm)	Φ_{e typ.} (mW)	V_{F typ.} (V)	Chip Technology	2θ_{50% typ.} (°)
150353DS74500	SPEC	25 files EDA models: Components ZIP ALT Altium_WL-SMDC (rev22b).IntLib \| 55 KB CDS CADENCE_WL-SMDC (rev19a).zip \| 384.6 KB EAG Eagle_WL-SMDC (rev22a).lbr \| 22.1 KB CAD files ZIP IGS Download_IGS_WL-SMDC-3535 (rev1).igs \| 777.8 KB STP Download_STP_WL-SMDC-3535 (rev1).stp \| 316.1 KB Electric models ZIP PSP PSpice_WL-SMDC (rev22a).zip \| 3.7 KB RAY files RIR Photopia_rir_150353DS74500_5M (rev1p1).zip \| 120.5 MB SRC Lucaray-maker_src_150353DS74500_5M (rev1p1).zip \| 120.5 MB ASA ASAP-and-APEX_dis_150353DS74500_5M (rev1p1).zip \| 120.5 MB COD CodeV_ray_150353DS74500_5M (rev1p1).zip \| 120.5 MB FRE Fred_dat_150353DS74500_5M (rev1p1).zip \| 120.5 MB FRE Fred_txt_150353DS74500_5M (rev1p1).zip \| 188.4 MB LIG LightTools_ray_150353DS74500_5M (rev1p1).zip \| 120.5 MB LIG LightTools_txt_150353DS74500_5M (rev1).zip \| 189.3 MB LUC LucidShape_ray_150353DS74500_5M (rev1p1).zip \| 120.5 MB LUC LucidShape_txt_150353DS74500_5M (rev1p1).zip \| 188.4 MB OPT OpTaliX_dis_150353DS74500_5M (rev1p1).zip \| 120.5 MB OPT OpTaliX_txt_150353DS74500_5M (rev1p1).zip \| 188.4 MB OPT OptiCAD_dat_150353DS74500_5M (rev1p1).zip \| 120.5 MB OPT OptiCAD_txt_150353DS74500_5M (rev1p1).zip \| 188.4 MB SIM Simulux_ray_150353DS74500_5M (rev1p1).zip \| 120.5 MB SPE Speos_ray_150353DS74500_5M (rev1p1).zip \| 125 MB TRA TracePro_txt_150353DS74500_5M (rev1p1).zip \| 188.3 MB ZEM Zemax_dat_150353DS74500_5M (rev1p1).zip \| 188.4 MB ZEM ZemaxBin_dat_150353DS74500_5M (rev1p1).zip \| 120.5 MB	Active i\| Production is active. Expected lifetime: >10 years.	Deep Blue	450	600	3.2	InGaN	125
150353FS74500	SPEC	25 files EDA models: Components ZIP ALT Altium_WL-SMDC (rev22b).IntLib \| 55 KB CDS CADENCE_WL-SMDC (rev19a).zip \| 384.6 KB EAG Eagle_WL-SMDC (rev22a).lbr \| 22.1 KB CAD files ZIP IGS Download_IGS_WL-SMDC-3535 (rev1).igs \| 777.8 KB STP Download_STP_WL-SMDC-3535 (rev1).stp \| 316.1 KB Electric models ZIP PSP PSpice_WL-SMDC (rev22a).zip \| 3.7 KB RAY files RIR Photopia_rir_150353FS74500_5M (rev1p1).zip \| 120.6 MB SRC Lucaray-maker_src_150353FS74500_5M (rev1p1).zip \| 120.6 MB ASA ASAP-and-APEX_dis_150353FS74500_5M (rev1p1).zip \| 120.6 MB COD CodeV_ray_150353FS74500_5M (rev1p1).zip \| 120.6 MB FRE Fred_dat_150353FS74500_5M (rev1p1).zip \| 120.6 MB FRE Fred_txt_150353FS74500_5M (rev1p1).zip \| 189.4 MB LIG LightTools_ray_150353FS74500_5M (rev1p1).zip \| 120.6 MB LIG LightTools_txt_150353FS74500_5M (rev1).zip \| 188.7 MB LUC LucidShape_ray_150353FS74500_5M (rev1p1).zip \| 120.6 MB LUC LucidShape_txt_150353FS74500_5M (rev1p1).zip \| 189.4 MB OPT OpTaliX_dis_150353FS74500_5M (rev1p1).zip \| 120.6 MB OPT OpTaliX_txt_150353FS74500_5M (rev1p1).zip \| 189.4 MB OPT OptiCAD_dat_150353FS74500_5M (rev1p1).zip \| 120.6 MB OPT OptiCAD_txt_150353FS74500_5M (rev1p1).zip \| 189.4 MB SIM Simulux_ray_150353FS74500_5M (rev1p1).zip \| 120.6 MB SPE Speos_ray_150353FS74500_5M (rev1p1).zip \| 125.1 MB TRA TracePro_txt_150353FS74500_5M (rev1p1).zip \| 189.3 MB ZEM Zemax_dat_150353FS74500_5M (rev1p1).zip \| 189.4 MB ZEM ZemaxBin_dat_150353FS74500_5M (rev1p1).zip \| 120.6 MB	Active i\| Production is active. Expected lifetime: >10 years.	Far Red	730	350	1.8	AlInGaP	125
150353HS74500	SPEC	25 files EDA models: Components ZIP ALT Altium_WL-SMDC (rev22b).IntLib \| 55 KB CDS CADENCE_WL-SMDC (rev19a).zip \| 384.6 KB EAG Eagle_WL-SMDC (rev22a).lbr \| 22.1 KB CAD files ZIP IGS Download_IGS_WL-SMDC-3535 (rev1).igs \| 777.8 KB STP Download_STP_WL-SMDC-3535 (rev1).stp \| 316.1 KB Electric models ZIP PSP PSpice_WL-SMDC (rev22a).zip \| 3.7 KB RAY files RIR Photopia_rir_150353HS74500_5M (rev1p1).zip \| 120.5 MB SRC Lucaray-maker_src_150353HS74500_5M (rev1p1).zip \| 120.5 MB ASA ASAP-and-APEX_dis_150353HS74500_5M (rev1p1).zip \| 120.5 MB COD CodeV_ray_150353HS74500_5M (rev1p1).zip \| 120.5 MB FRE Fred_dat_150353HS74500_5M (rev1p1).zip \| 120.5 MB FRE Fred_txt_150353HS74500_5M (rev1p1).zip \| 189.4 MB LIG LightTools_ray_150353HS74500_5M (rev1p1).zip \| 120.5 MB LIG LightTools_txt_150353HS74500_5M (rev1).zip \| 189.2 MB LUC LucidShape_ray_150353HS74500_5M (rev1p1).zip \| 120.5 MB LUC LucidShape_txt_150353HS74500_5M (rev1p1).zip \| 189.4 MB OPT OpTaliX_dis_150353HS74500_5M (rev1p1).zip \| 120.5 MB OPT OpTaliX_txt_150353HS74500_5M (rev1p1).zip \| 189.4 MB OPT OptiCAD_dat_150353HS74500_5M (rev1p1).zip \| 120.5 MB OPT OptiCAD_txt_150353HS74500_5M (rev1p1).zip \| 189.4 MB SIM Simulux_ray_150353HS74500_5M (rev1p1).zip \| 120.5 MB SPE Speos_ray_150353HS74500_5M (rev1p1).zip \| 124.8 MB TRA TracePro_txt_150353HS74500_5M (rev1p1).zip \| 189.4 MB ZEM Zemax_dat_150353HS74500_5M (rev1p1).zip \| 189.4 MB ZEM ZemaxBin_dat_150353HS74500_5M (rev1p1).zip \| 120.5 MB	Active i\| Production is active. Expected lifetime: >10 years.	Hyper Red	660	440	2.2	AlInGaP	125

Order Code	Datasheet	Simulation
150353DS74500	SPEC
150353FS74500	SPEC
150353HS74500	SPEC

Samples

Order Code	Datasheet	Simulation	Downloads	Status	Emitting Color	λ_{Peak typ.} (nm)	Φ_{e typ.} (mW)	V_{F typ.} (V)	Chip Technology	2θ_{50% typ.} (°)	Samples

HortiCoolture. LED it grow!

Horticulture LED Lighting

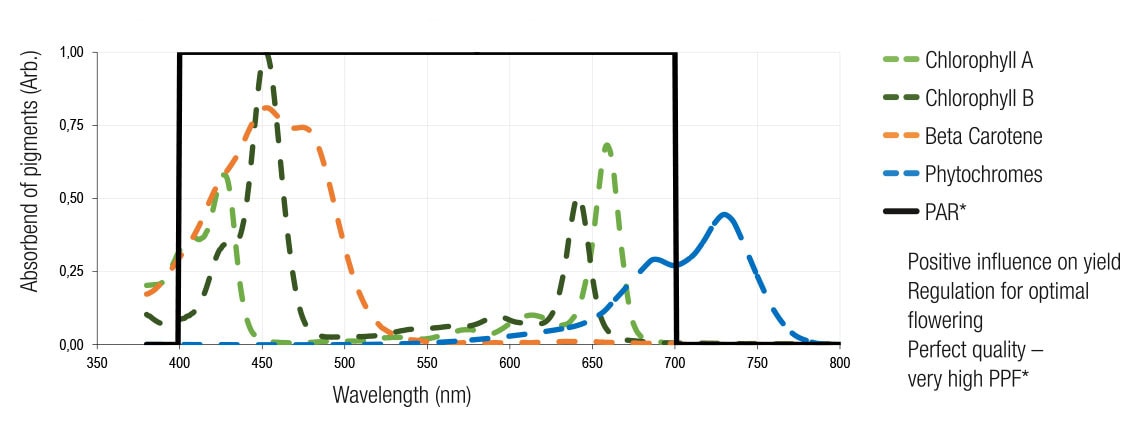

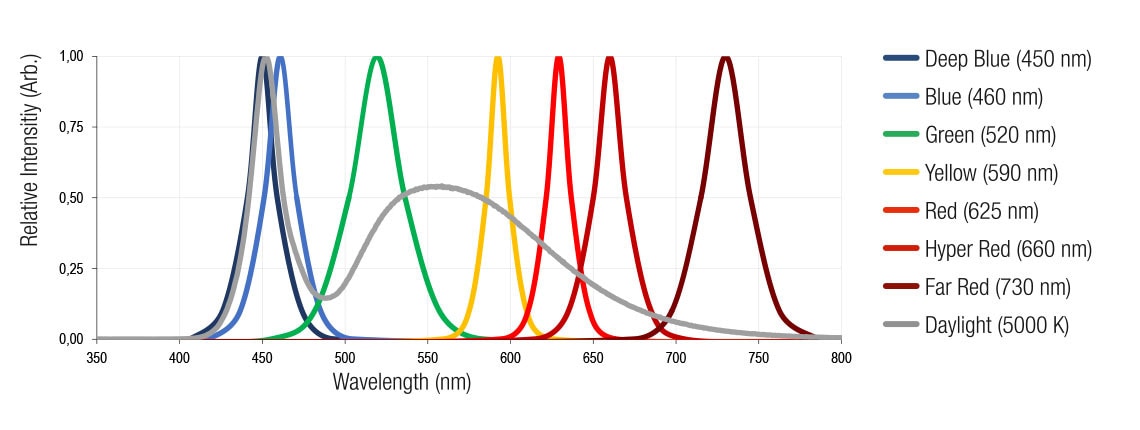

New Horticulture LEDs from the High Power Ceramic series. The wavelengths (450 nm, 660 nm, 730 nm) specially selected for plant cultivation promote photosynthesis and optimize plant development. The superior PPF values, small size and low power dissipation make the WL-SMDC series perfect as a future selection for Horticulture lighting. Item available from stock. Samples available free of charge.

Advantages:
