WP-TGCF REDCUBE PRESS-FIT two-part, ground terminal with circumference pin-plate

WP-TGCF REDCUBE PRESS-FIT two-part, ground terminal with circumference pin-plate
General Information
Operating Temperature-55 °C up to +150 °C
MaterialBrass
SurfaceTin
ExecutionPress-Fit
Packaging Properties
PackagingBulk

Application Notes

Products

Order Code Data­sheet DownloadsW
(mm)		H
(mm)		Ø ID
(mm)		IR
(A)		Pins (Value)
(pcs)		CrosslinkUse with Samples
74610704SPEC
6 files

EDA models: Components
ZIP

CAD files
ZIP

Download all 6 files as zip archive
ZIP

 9 3.1 5.5 175 12 Use with7461073
7461118
7461119
7461120
7461121
7461122
7461071SPEC
6 files

EDA models: Components
ZIP

CAD files
ZIP

Download all 6 files as zip archive
ZIP

 13 3.1 7.3 240 16 Use with7461123
7461082
7461126
7461074
7461124
7461127
Order Code Data­sheet
74610704SPEC
7461071SPEC
Samples
Order Code Data­sheet DownloadsW
(mm)		H
(mm)		Ø ID
(mm)		IR
(A)		Pins (Value)
(pcs)		CrosslinkUse with Samples

REDCUBE Terminals - Innovative High Power Contacts

REDCUBE Terminals - 4power!

REDCUBE terminals are the most reliable high-power contacts on the PCB level. Low contact resistance guarantees minimum self-heating. Four different designs cover all leading processing technologies and offer a wide range of applications.

Characteristic:

  • Flexibility in processing and connection technologies
  • Highest current ratings up to 500 A
  • Board-to-Board and Wire-to-Board solutions
  • Extremely low self-heating
  • Robust mechanical connection

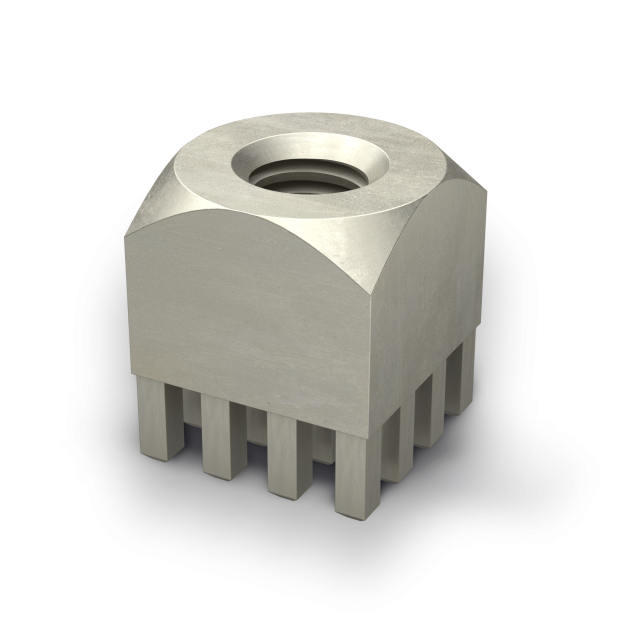

REDCUBE PRESS-FIT

Ampacity up to 500A
Ampacity up to 500A
Simple & Quick Processing
Simple & Quick Processing

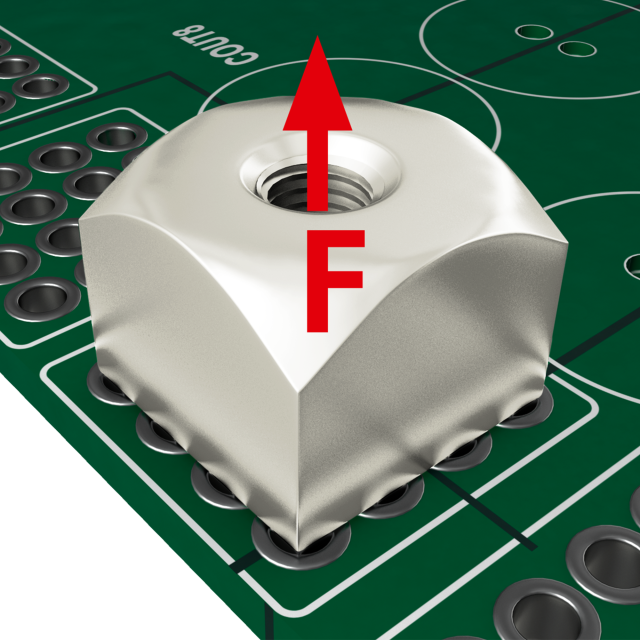

Extraction Force 10 kg/Pin
Extraction Force 10 kg/Pin
Press-Fit Technology
Press-Fit Technology
Lowest Heat Development
Lowest Heat Development
Cold Welding between Materials
Cold Welding between Materials

Applications, Performance & Press-Fit Process

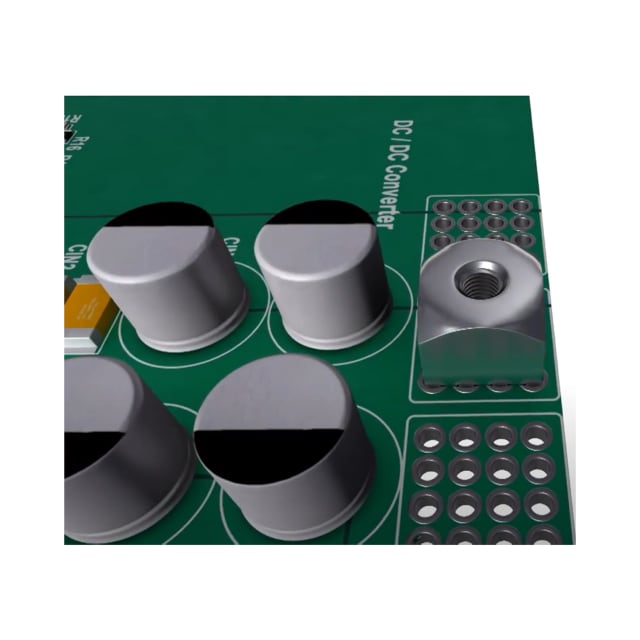

Applications

The current rating of REDCUBE PRESS-FIT is impressive. With the same ampacity, REDCUBE PRESS-FIT has the lowest heat development compared to other parts that supply power for PCBs.

  • High current Wire-to-Board & Board-to-Board
  • Mounting of copper bars
  • Angled assembling of cable, PCB and housing
  • Mounting of IGBT modules

Remarkable Performance

With the lowest Failure-In-Time value, REDCUBE PRESS-FIT is the most reliable technology on PCB. The FIT value is up to 30 times better than that of a SMD solder joint. REDCUBE PRESS-FIT is suitable for two-side mounting and allows very compact design of modules.

  • Simple & quick processing
  • No cold solder joints
  • High process safety
  • Low self heating
  • Two-sided mounting of PCBs

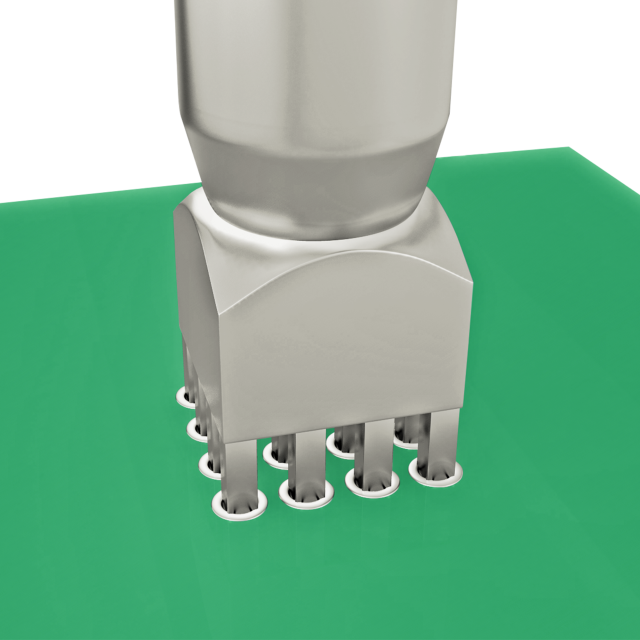

PRESS-FIT Process

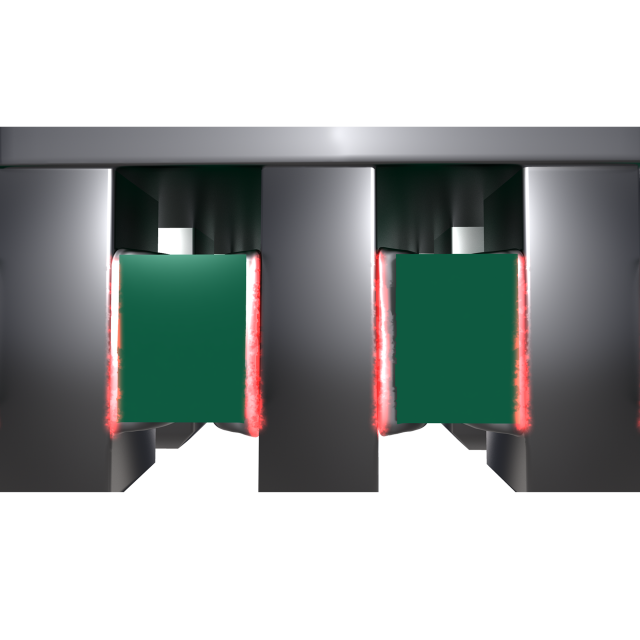

Pressing the pins into the PCB, a high friction between pin and plated through-hole generates a homogeneous cold-welding between materials. No other technology transfers power up to 500 A at this low heat development.

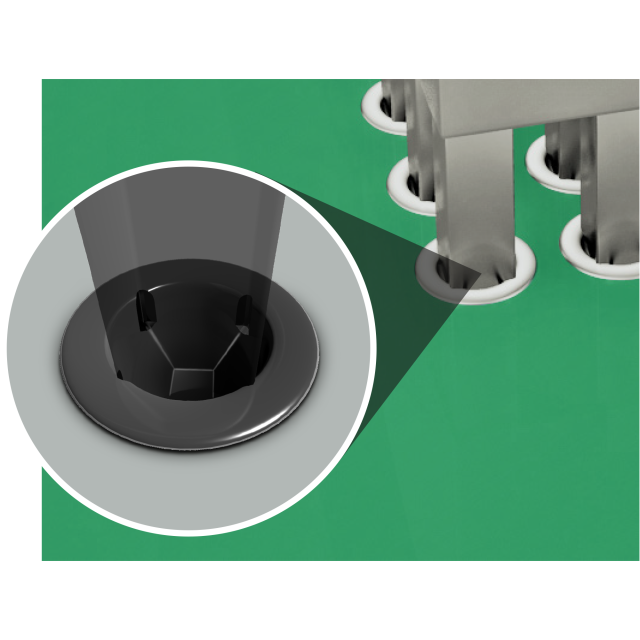

  • Homogeneous material transition between pin and through-hole plating
  • Contact resistance less than 200 μΩ
  • Gastight electrical and mechanical connection
  • Extremely strong mechanical connection

Mates with

WA-CLUG Tubular Cable Lugs

Support Terminal

WP-TPSE REDCUBE PRESS-FIT two-part, support element
