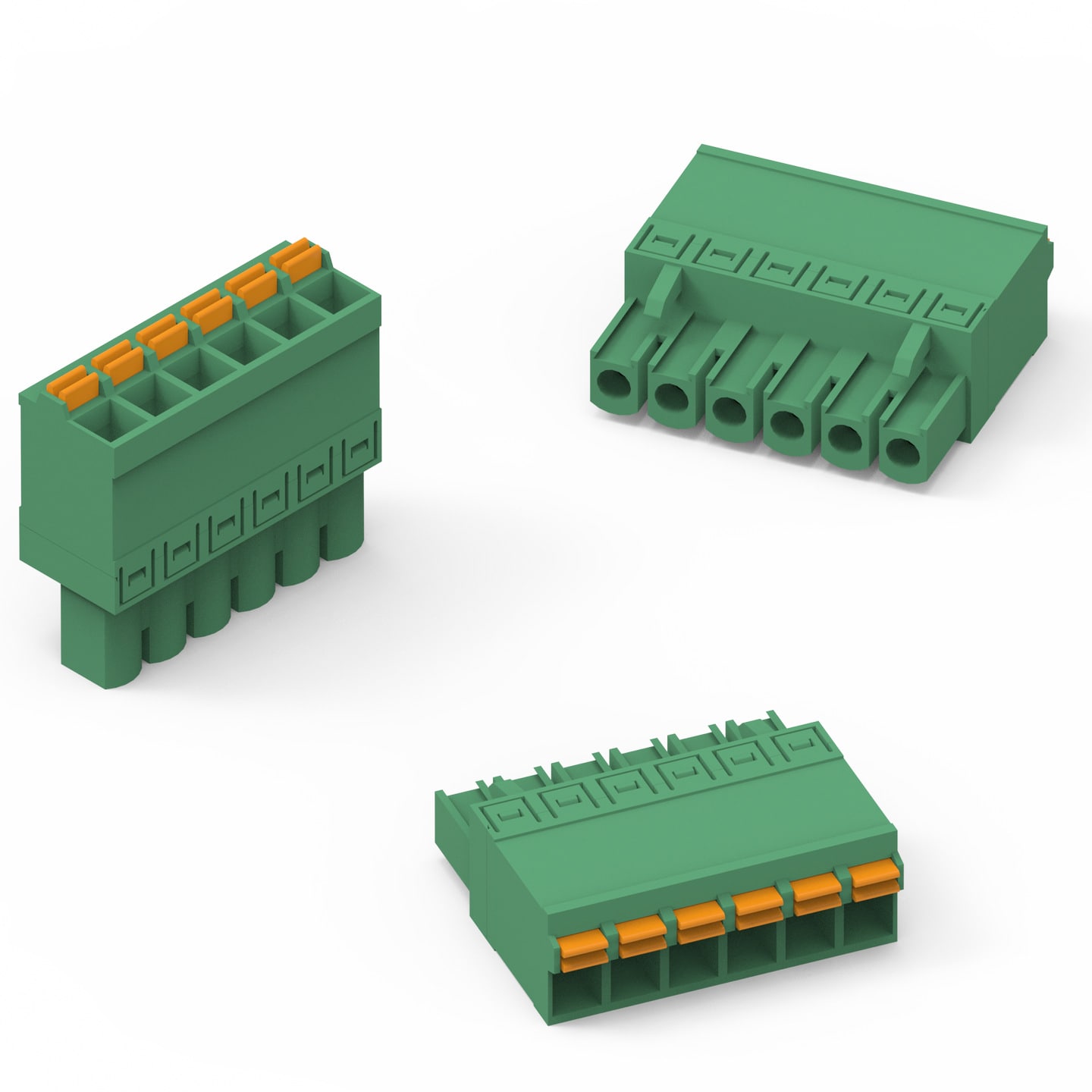

WR-TBL Series 3045 - 5.08 mm - Screwless Plug Vertical Entry without Plastic Latches | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Pitch	5.08 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Copper Alloy
Contact Plating	Tin over Nickel
Spring Material	Stainless Steel

Electrical Properties
I_R	12 A
Working Voltage	300 V
Withstanding Voltage	1600 V
Contact Resistance	20 mΩ

Mechanical Properties
Wire Strip Length	11 up to 12 (mm)

Wire Properties
Solid Wire Section (AWG)	26 to 14 (AWG)
Solid Wire Section (Metric)	0.2 to 1.5 (mm²)
Stranded Wire Section (AWG)	26 to 14 (AWG)
Stranded Wire Section (Metric)	0.2 to 1.5 (mm²)

Certification
cULus Approval	E315414

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit
691304500002	SPEC	3 files CAD files ZIP 3D 3D_691304500002 (rev1).pdf \| 245.2 KB IGS IGS_691304500002 (rev1).igs \| 3.6 MB STP STP_691304500002 (rev1).stp \| 829.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	Plug Screwless Push In	Cable	No	Vertical	26 to 14 (AWG) 0.2 to 1.5 (mm²)	–
691304500003	SPEC	3 files CAD files ZIP 3D 3D_691304500003 (rev1).pdf \| 309.3 KB IGS IGS_691304500003 (rev1).igs \| 4.7 MB STP STP_691304500003 (rev1).stp \| 1 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	Plug Screwless Push In	Cable	No	Vertical	26 to 14 (AWG) 0.2 to 1.5 (mm²)	691002
691304500004	SPEC	3 files CAD files ZIP 3D 3D_691304500004 (rev1).pdf \| 366.8 KB IGS IGS_691304500004 (rev1).igs \| 5.6 MB STP STP_691304500004 (rev1).stp \| 1.3 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	Plug Screwless Push In	Cable	No	Vertical	26 to 14 (AWG) 0.2 to 1.5 (mm²)	–
691304500005	SPEC	3 files CAD files ZIP 3D 3D_691304500005 (rev1).pdf \| 425.6 KB IGS IGS_691304500005 (rev1).igs \| 6.6 MB STP STP_691304500005 (rev1).stp \| 1.5 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	Plug Screwless Push In	Cable	No	Vertical	26 to 14 (AWG) 0.2 to 1.5 (mm²)	–
691304500006	SPEC	3 files CAD files ZIP 3D 3D_691304500006 (rev1).pdf \| 489.2 KB IGS IGS_691304500006 (rev1).igs \| 7.6 MB STP STP_691304500006 (rev1).stp \| 1.7 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	Plug Screwless Push In	Cable	No	Vertical	26 to 14 (AWG) 0.2 to 1.5 (mm²)	–
691304500007	SPEC	3 files CAD files ZIP 3D 3D_691304500007 (rev1).pdf \| 548.3 KB IGS IGS_691304500007 (rev1).igs \| 8.5 MB STP STP_691304500007 (rev1).stp \| 2 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	Plug Screwless Push In	Cable	No	Vertical	26 to 14 (AWG) 0.2 to 1.5 (mm²)	–
691304500008	SPEC	2 files CAD files ZIP 3D 3D_691304500008 (rev1).pdf \| 619.8 KB STP STP_691304500008 (rev1).stp \| 2.2 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	Plug Screwless Push In	Cable	No	Vertical	26 to 14 (AWG) 0.2 to 1.5 (mm²)	–
691304500009	SPEC	3 files CAD files ZIP 3D 3D_691304500009 (rev1).pdf \| 680 KB IGS IGS_691304500009 (rev1).igs \| 10.5 MB STP STP_691304500009 (rev1).stp \| 2.4 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9	Plug Screwless Push In	Cable	No	Vertical	26 to 14 (AWG) 0.2 to 1.5 (mm²)	–
691304500010	SPEC	3 files CAD files ZIP 3D 3D_691304500010 (rev1).pdf \| 712.1 KB IGS IGS_691304500010 (rev1).igs \| 11.4 MB STP STP_691304500010 (rev1).stp \| 2.7 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	Plug Screwless Push In	Cable	No	Vertical	26 to 14 (AWG) 0.2 to 1.5 (mm²)	–
691304500011	SPEC	3 files CAD files ZIP 3D 3D_691304500011 (rev1).pdf \| 768.7 KB IGS IGS_691304500011 (rev1).igs \| 12.4 MB STP STP_691304500011 (rev1).stp \| 2.9 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	11	Plug Screwless Push In	Cable	No	Vertical	26 to 14 (AWG) 0.2 to 1.5 (mm²)	–
691304500012	SPEC	3 files CAD files ZIP 3D 3D_691304500012 (rev1).pdf \| 827.6 KB IGS IGS_691304500012 (rev1).igs \| 13.4 MB STP STP_691304500012 (rev1).stp \| 3.1 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	Plug Screwless Push In	Cable	No	Vertical	26 to 14 (AWG) 0.2 to 1.5 (mm²)	–

Order Code	Datasheet
691304500002	SPEC
691304500003	SPEC
691304500004	SPEC
691304500005	SPEC
691304500006	SPEC
691304500007	SPEC
691304500008	SPEC
691304500009	SPEC
691304500010	SPEC
691304500011	SPEC
691304500012	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit	Samples

Terminal Blocks - Standard, Personalized & Highly Customized

Tailored to your needs

Custom & Standard Terminal Blocks

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.
