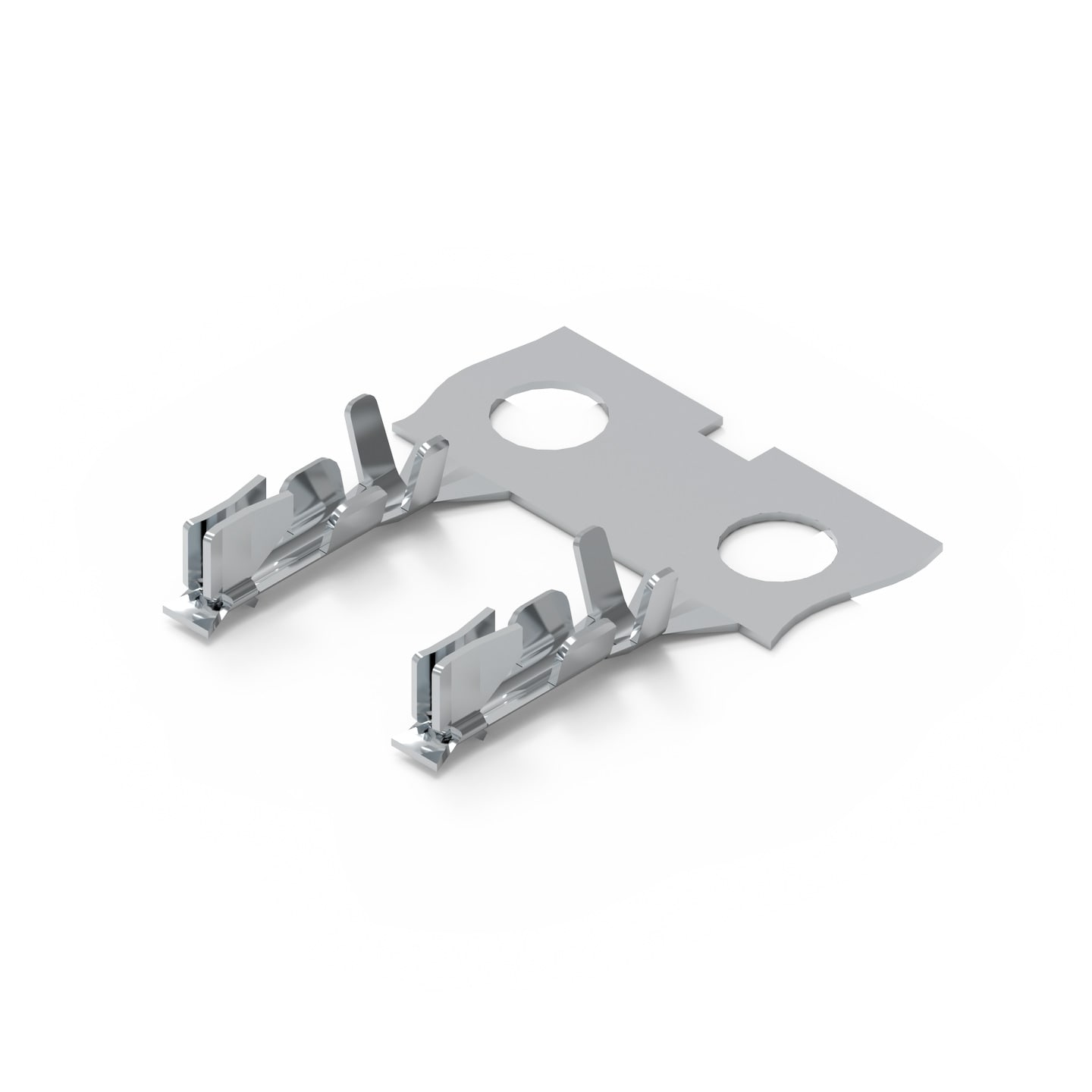

WR-WTB 1.00 mm Female Crimp Terminal

Material Properties
Contact Material	Phosphor Bronze
Contact Plating	Tin
Contact Type	Stamped

General Information
Operating Temperature	-25 °C up to +85 °C
Compliance	RoHS
I_R	1 A
Working Voltage	50 V (AC)
Contact Resistance	20 mΩ
Pitch	1 mm
Gender	Female
Type	Crimp Terminal

Wire Properties
Stranded Wire Section (AWG)	28 to 32 (AWG)
Stranded Wire Section (Metric)	0.081 to 0.032 (mm²)

Packaging Properties
Packaging	Bag; Big Reel; Small Reel

Products

Order Code	Datasheet	Downloads	Status	Gender	Stranded Wire Section (AWG)	Stranded Wire Section (Metric)	Packaging	Qty. (pcs)	Design Kit	Tools	Samples
66500113722	SPEC	3 files CAD files ZIP 3D 66500113722_1 (rev1).pdf \| 145.3 KB IGS 66500113722 (rev1).igs \| 1.7 MB STP 66500113722 (rev1).stp \| 641.1 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	28 to 32 (AWG)	0.081 to 0.032 (mm²)	Big Reel	15000	–	–
66500113722DEC	SPEC	3 files CAD files ZIP 3D 66500113722DEC_1 (rev1).pdf \| 69.5 KB IGS 66500113722DEC (rev1).igs \| 818 KB STP 66500113722DEC (rev1).stp \| 298.2 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	28 to 32 (AWG)	0.081 to 0.032 (mm²)	Bag	100	612690 645001	–
66510113722	SPEC	3 files CAD files ZIP 3D 66510113722_1 (rev1).pdf \| 145.3 KB IGS 66510113722 (rev1).igs \| 1.7 MB STP 66510113722 (rev1).stp \| 641.1 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	28 to 32 (AWG)	0.081 to 0.032 (mm²)	Small Reel	1000	–	600665401 600665232280

Order Code	Datasheet
66500113722	SPEC
66500113722DEC	SPEC
66510113722	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Gender	Stranded Wire Section (AWG)	Stranded Wire Section (Metric)	Packaging	Qty. (pcs)	Design Kit	Tools	Samples

Mates with

WR-WTB 1.00 mm Female Terminal Housing

Use with

WR-WTB 1.00 mm Female Terminal Housing

Tools

WR-WTB Automatic Crimping Tool: 600665401

WR-WTB Manual Crimping Tool: 600665232280
