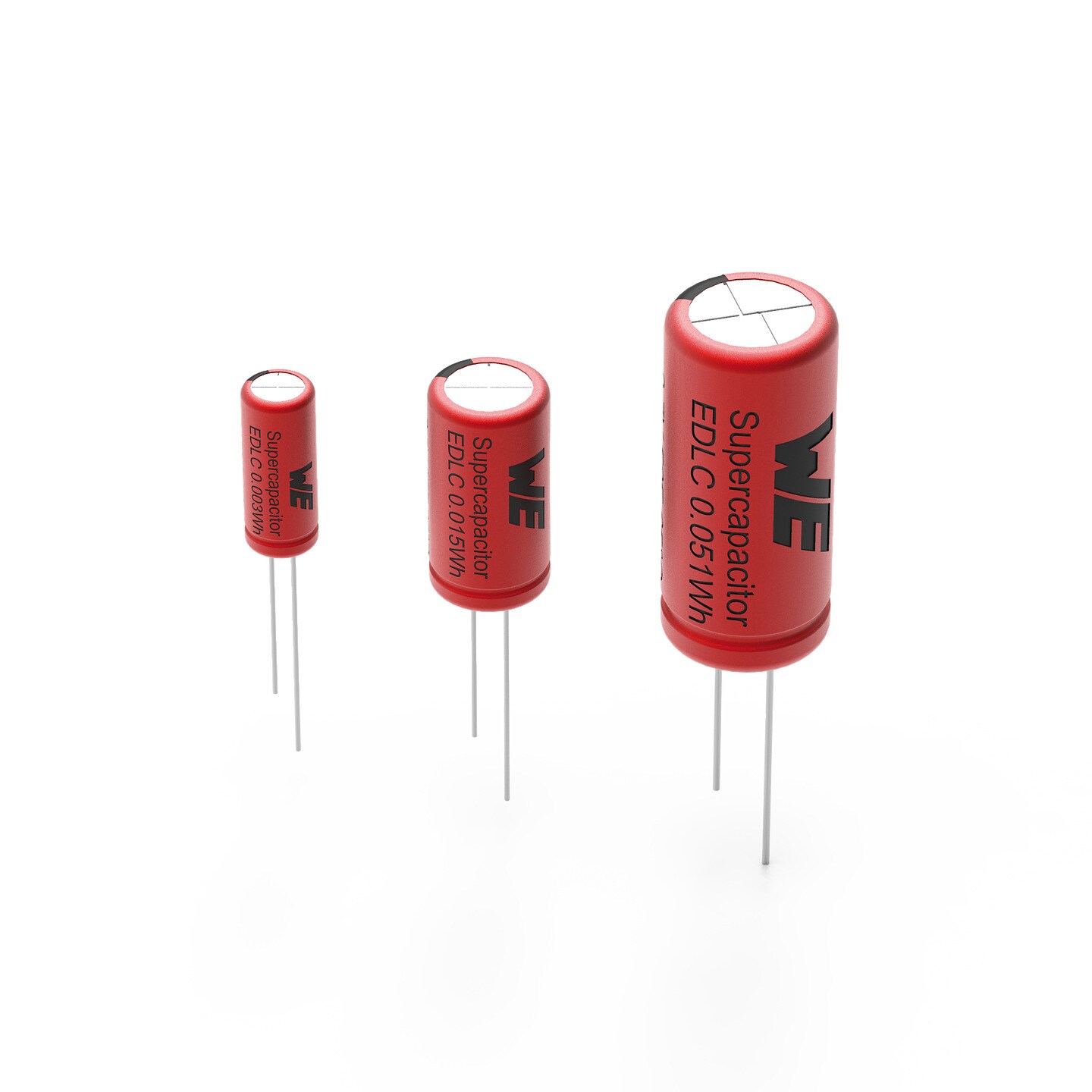

WCAP-STSC Supercapacitors (EDLCs)

Standard Cylindrical – THT

WCAP-STSC Superkondensatoren (EDLCs). Electric Double Layer Capacitors. Capacitance range: 3 F ‒ 50 F.

Characteristics

  • Product series with standard cylindrical size
  • Electric Double Layer Capacitors
  • Higher energy density than usual capacitors
  • Mounting style: Radial THT
  • Capacitance range: 3 F ‒ 50 F
  • Capacitance tolerance: -10 % / +30 %
  • Rated Voltage: 2.7 V(DC)
  • Operating temperature: -40 °C up to +65 °C
  • Life Cycles: 500000 Cycles
  • Dimensions (DxL) in mm: 8.0 x 20.0 up to 18.0 x 40.0
  • Recommended soldering: Wave soldering

Applications

  • Memory backup
  • Smart meter
  • Network equipment
  • UPS systems
  • Power assist
  • Energy harvesting

Products

Order Code Data­sheet Simu­lation Downloads StatusCVR
(V (DC))
Life Cycle (Value)
(Cycles)
Operating TemperatureRESR DC
(mΩ)
RESR AC
(mΩ)
ILeak
(mA)
IMax
(A)
IRated
(A)
P
(kW/ kg)
E
(Wh/ kg)
Pitch
(mm)
Ø D
(mm)
L
(mm)
Packaging Samples
850617030001SPEC
8 files Active i| Production is active. Expected lifetime: >10 years.3 F 2.7 500000 -40 °C up to +65 °C 70 60 0.008 3.3 0.7 18.08 2.1 3.5 8 20 Bulk
850617021001SPEC
8 files Active i| Production is active. Expected lifetime: >10 years.5 F 2.7 500000 -40 °C up to +65 °C 50 40 0.012 5.4 1.29 17.35 2.41 5 10 20 Bulk
850617021002SPEC
8 files Active i| Production is active. Expected lifetime: >10 years.7 F 2.7 500000 -40 °C up to +65 °C 45 35 0.02 7.1 1.7 18.92 3.3 5 10 20 Bulk
850617021004SPEC
8 files Active i| Production is active. Expected lifetime: >10 years.10 F 2.7 500000 -40 °C up to +65 °C 35 30 0.03 10 2.5 19.1 3.7 5 10 25 Bulk
850617021005SPEC
8 files Active i| Production is active. Expected lifetime: >10 years.15 F 2.7 500000 -40 °C up to +65 °C 33 30 0.06 13.5 3.6 12.27 3.3 5 13 25 Bulk
850617022001SPEC
8 files Active i| Production is active. Expected lifetime: >10 years.25 F 2.7 500000 -40 °C up to +65 °C 25 20 0.068 20.7 6 10.72 3.7 7.5 16 25 Bulk
850617022002SPEC
8 files Active i| Production is active. Expected lifetime: >10 years.50 F 2.7 500000 -40 °C up to +65 °C 20 15 0.105 33.7 11.2 8.13 4.5 7.5 18 40 Bulk
Order Code Data­sheet Simu­lation
850617030001SPEC
850617021001SPEC
850617021002SPEC
850617021004SPEC
850617021005SPEC
850617022001SPEC
850617022002SPEC
Samples
Order Code Data­sheet Simu­lation Downloads StatusCVR
(V (DC))
Life Cycle (Value)
(Cycles)
Operating TemperatureRESR DC
(mΩ)
RESR AC
(mΩ)
ILeak
(mA)
IMax
(A)
IRated
(A)
P
(kW/ kg)
E
(Wh/ kg)
Pitch
(mm)
Ø D
(mm)
L
(mm)
Packaging Samples

Supercapacitors

Supercapacitors, also known as EDLC for Electric Double Layer Capacitor, are energy storage devices that are easy to use and, in many ways, comparable to batteries. They close the gap between capacitors and batteries.Supercapacitors have:

  • Higher power density than batteries
  • Higher energy density than conventional capacitors

Available Series

Series WCAP-STSC

  • Mounting Style: Radial THT
  • Type: Standard Cylindrical
  • Capacitance: 3 – 50 F
  • Voltage: 2.7 V (DC)

Series WCAP-SISC

  • Mounting Style: Snap-In
  • Type: Standard Cylindrical
  • Capacitance: 100 & 350 F
  • Voltage: 2.7 V (DC)
