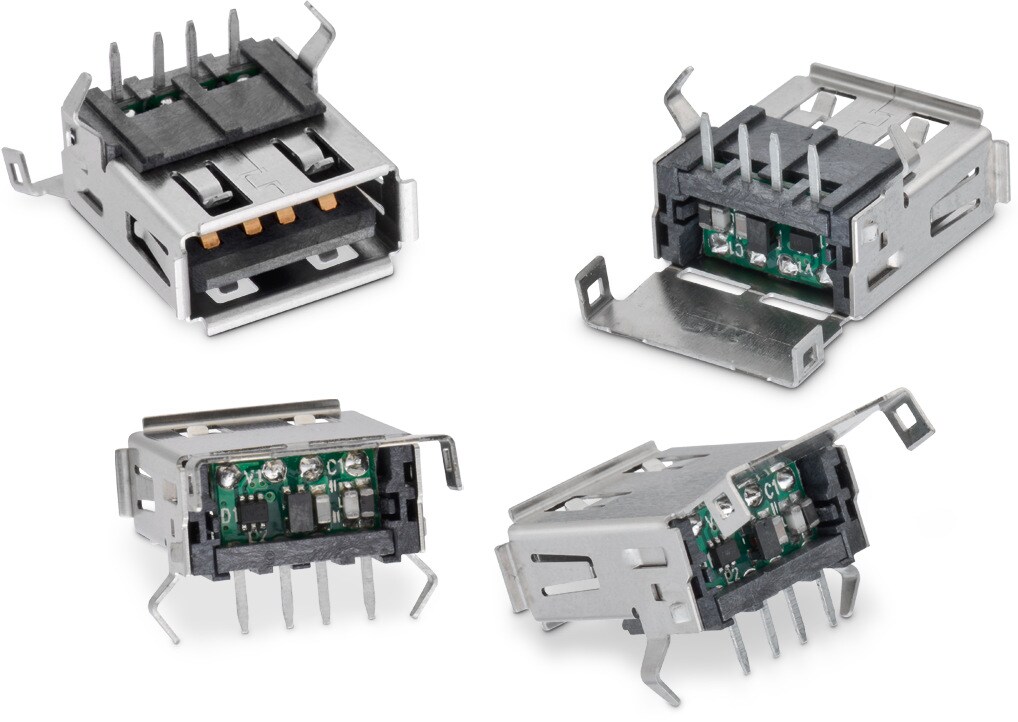

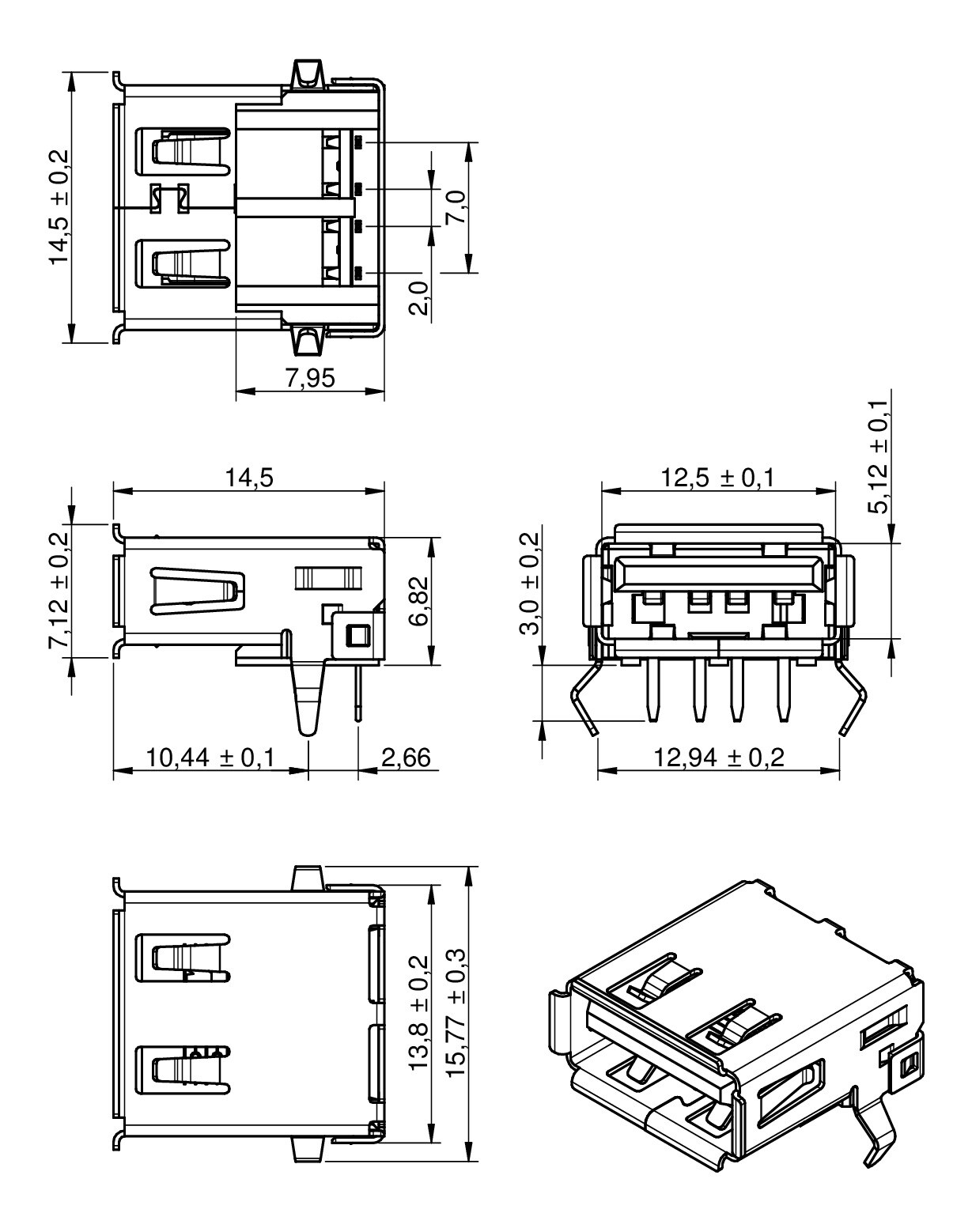

WE-EPLE USB 2.0 A Connector

Characteristics

  • USB 2.0 High Speed up to 480 MBit/s
  • ESD Protection of data channels and VDD
  • Common Mode Noise Rejection
  • VDD Differential Mode Noise Rejection
  • Common mode attenuation for data lines
  • Provides ESD protection for each channel to
    IEC 61000-4-2 (ESD) ±15 kV (air), ±8 kV (contact)
    IEC 61000-4-4 (EFT) (5/50 ns) 20 A (I/O), 40 A VDD
    IEC 61000-4-5 (Lightning) 6 A (8/20 µs)
  • Ultra low capacitance: 2 pF typical
  • Fast turn on and low clamping voltage

Applications

Products

Order Code Data­sheet DownloadsPortsZD+D-
(Ω)
RDC VDD
(mΩ)
RDC D+D-
(mΩ)
VDC
(V)
IR VDD
(A)
IR
(A)
VBR min.
(V)
VCh Clamp ESD D+D-
(V)
VCh Clamp ESD VDD
(V)
Samples
8492121SPEC
6 files 1 100 200 350 5 1 0.33 6 9.5 9
