WE-D-SUB Filter Solder Pin Straight

Size	Dimensions	W (mm)	H (mm)	Material	Mount

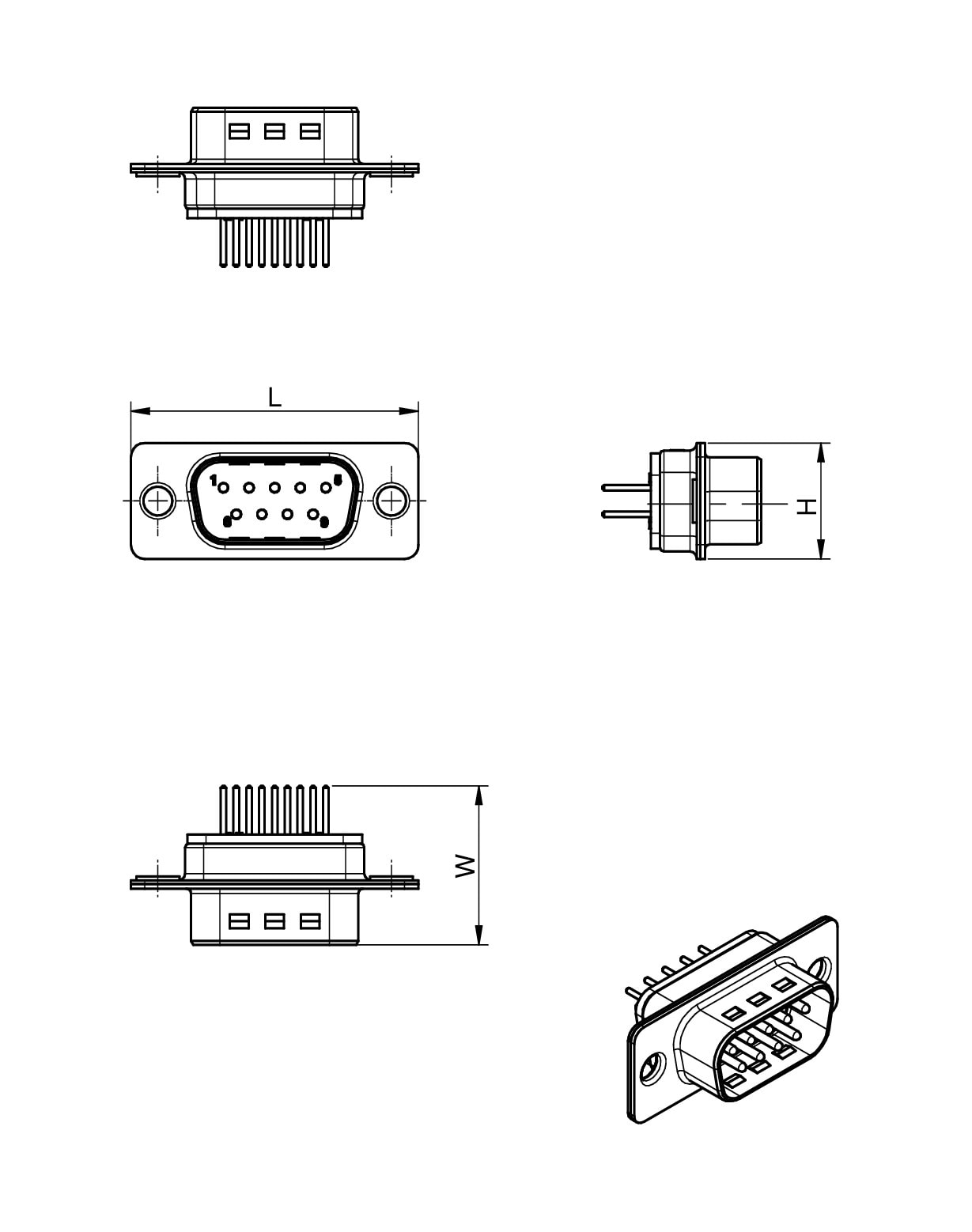

Through Hole		17	12.4	Steel with Tin	Solder

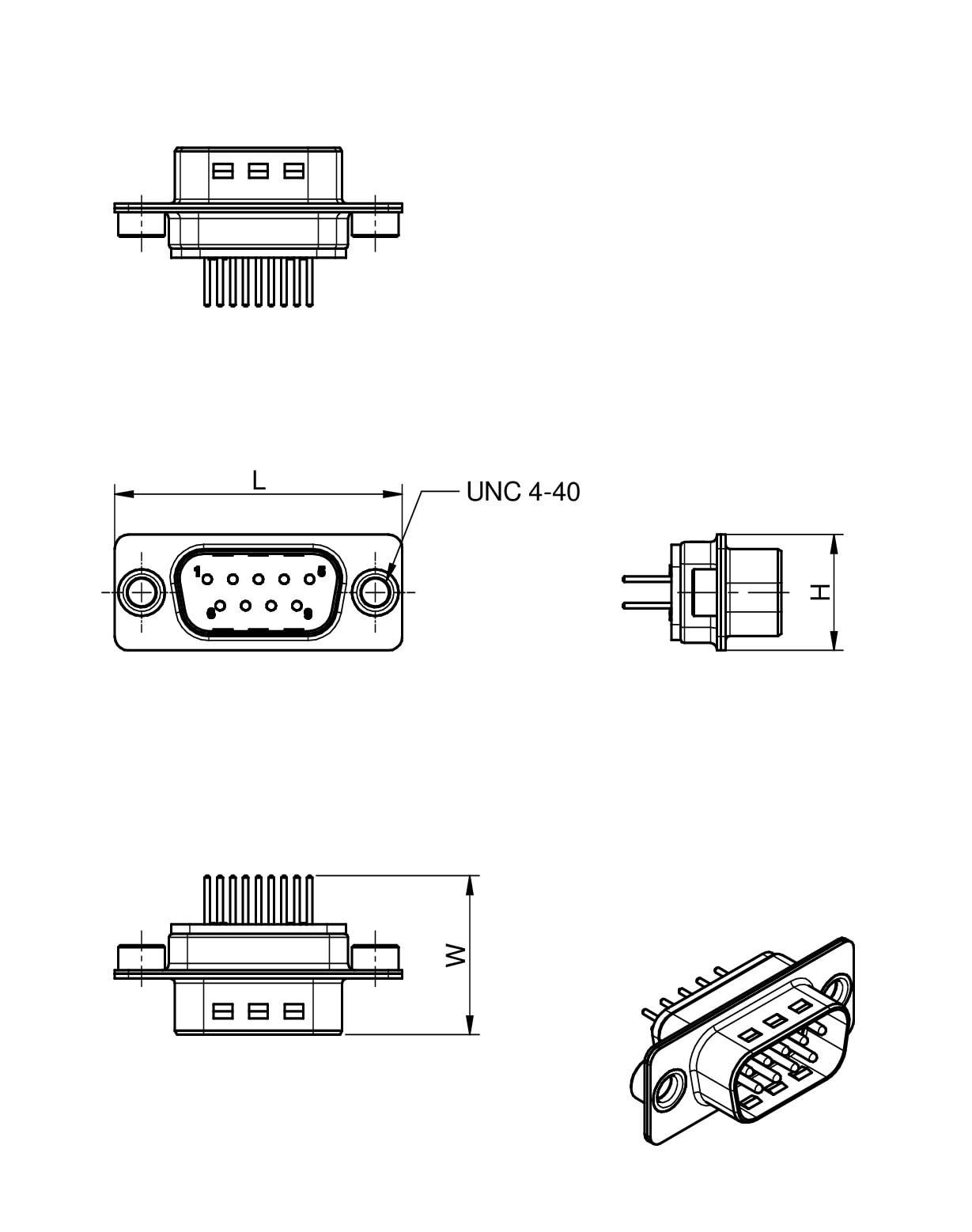

UNC 4/40		17	12.4	Steel with Tin	Solder

Characteristics

Standardized filter with 1000 pF (other values possible on request)
High attenuation of more than 40 dB @ 180 MHz
Rated current @ 20 ºC: 7,5 A
Insulation resistance: min. 1 GΩ
Operating temperature: –55 ºC to +125 ºC
Choice of UNC 4/40 or through hole
Working voltage: 100 VDC
Testing voltage: 250 VRMS

Applications

Filtering of interfaces
External connection to
– printer
– sensor
– display

Products

All

Through Hole

UNC 4/40

	Order Code	Datasheet	Downloads	Status	Number of Poles	Gender	L (mm)	W (mm)	H (mm)	Samples
	210111003	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS 210111003 (rev1).igs \| 12.2 MB STP 210111003 (rev1).stp \| 1.2 MB	Active i\| Production is active. Expected lifetime: >10 years.	9	Male	30.8	17	12.4
	210611003	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS 210611003 (rev1).igs \| 15.2 MB STP 210611003 (rev1).stp \| 1.2 MB	Active i\| Production is active. Expected lifetime: >10 years.	9	Female	30.8	17	12.4
	210111023	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS 210111023 (rev1).igs \| 12.3 MB STP 210111023 (rev1).stp \| 1.2 MB	Active i\| Production is active. Expected lifetime: >10 years.	9	Male	30.8	17	12.4
	210611023	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS 210611023 (rev1).igs \| 15.3 MB STP 210611023 (rev1).stp \| 1.3 MB	Active i\| Production is active. Expected lifetime: >10 years.	9	Female	30.8	17	12.4
	212111003	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS 212111003 (rev1).igs \| 19.1 MB STP 212111003 (rev1).stp \| 1.4 MB	Active i\| Production is active. Expected lifetime: >10 years.	15	Male	39.2	17	12.4
	212611003	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS 212611003 (rev1).igs \| 23.9 MB STP 212611003 (rev1).stp \| 1.4 MB	Active i\| Production is active. Expected lifetime: >10 years.	15	Female	39.2	17	12.4
	212111023	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS 212111023 (rev1).igs \| 19.2 MB STP 212111023 (rev1).stp \| 1.4 MB	Active i\| Production is active. Expected lifetime: >10 years.	15	Male	39.2	17	12.4
	212611023	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS 212611023 (rev1).igs \| 24 MB STP 212611023 (rev1).stp \| 1.4 MB	Active i\| Production is active. Expected lifetime: >10 years.	15	Female	39.2	17	12.4
	214111003	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS 214111003 (rev1).igs \| 31.4 MB STP 214111003 (rev1).stp \| 2.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	25	Male	53.1	17	12.4
	214611003	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS Download_IGS_WE-DsubFilter-SolderPinStraight (rev1).igs \| 7.7 MB STP Download_STP_WE-DSubFilter-SolderPinStraight (rev1).stp \| 1.7 MB	Active i\| Production is active. Expected lifetime: >10 years.	25	Female	53.1	17	12.4
	214111023	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS 214111023 (rev1).igs \| 31.5 MB STP 214111023 (rev1).stp \| 2.2 MB	Active i\| Production is active. Expected lifetime: >10 years.	25	Male	53.1	17	12.4
	214611023	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS Download_IGS_WE_DSubFilter-SolderPinStraight-214611023 (rev1).igs \| 7.7 MB STP Download_STP_WE-DSubFilter-SolderPinStraight-214611023 (rev1).stp \| 1.7 MB	Active i\| Production is active. Expected lifetime: >10 years.	25	Female	53.1	17	12.4
	216111003	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS Download_IGS_DSubFilter-SolderPinStraight-216111003 (rev1).igs \| 8.6 MB STP Download_STP_WE-DSubFilter-SolderPinStraight-216111003 (rev1).stp \| 2 MB	Active i\| Production is active. Expected lifetime: >10 years.	37	Male	69.5	17	12.4
	216611003	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS Download_IGS_216611003 (rev1).igs \| 8.9 MB STP Download_STP_216611003 (rev1).stp \| 1.9 MB	Active i\| Production is active. Expected lifetime: >10 years.	37	Female	69.5	17	12.4
	216111023	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS Download_IGS_216111023 (rev1).igs \| 8.6 MB STP Download_STP_216111023 (rev1).stp \| 2 MB	Active i\| Production is active. Expected lifetime: >10 years.	37	Male	69.5	17	12.4
	216611023	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS Download_IGS_216611023 (rev1).igs \| 8.9 MB STP Download_STP_216611023 (rev1).stp \| 1.9 MB	Active i\| Production is active. Expected lifetime: >10 years.	37	Female	69.5	17	12.4

	Order Code	Datasheet
	210111003	SPEC
	210611003	SPEC
	210111023	SPEC
	210611023	SPEC
	212111003	SPEC
	212611003	SPEC
	212111023	SPEC
	212611023	SPEC
	214111003	SPEC
	214611003	SPEC
	214111023	SPEC
	214611023	SPEC
	216111003	SPEC
	216611003	SPEC
	216111023	SPEC
	216611023	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Number of Poles	Gender	L (mm)	W (mm)	H (mm)	Samples

Use with

WA-PCCA Plastic Caps for D-SUB
