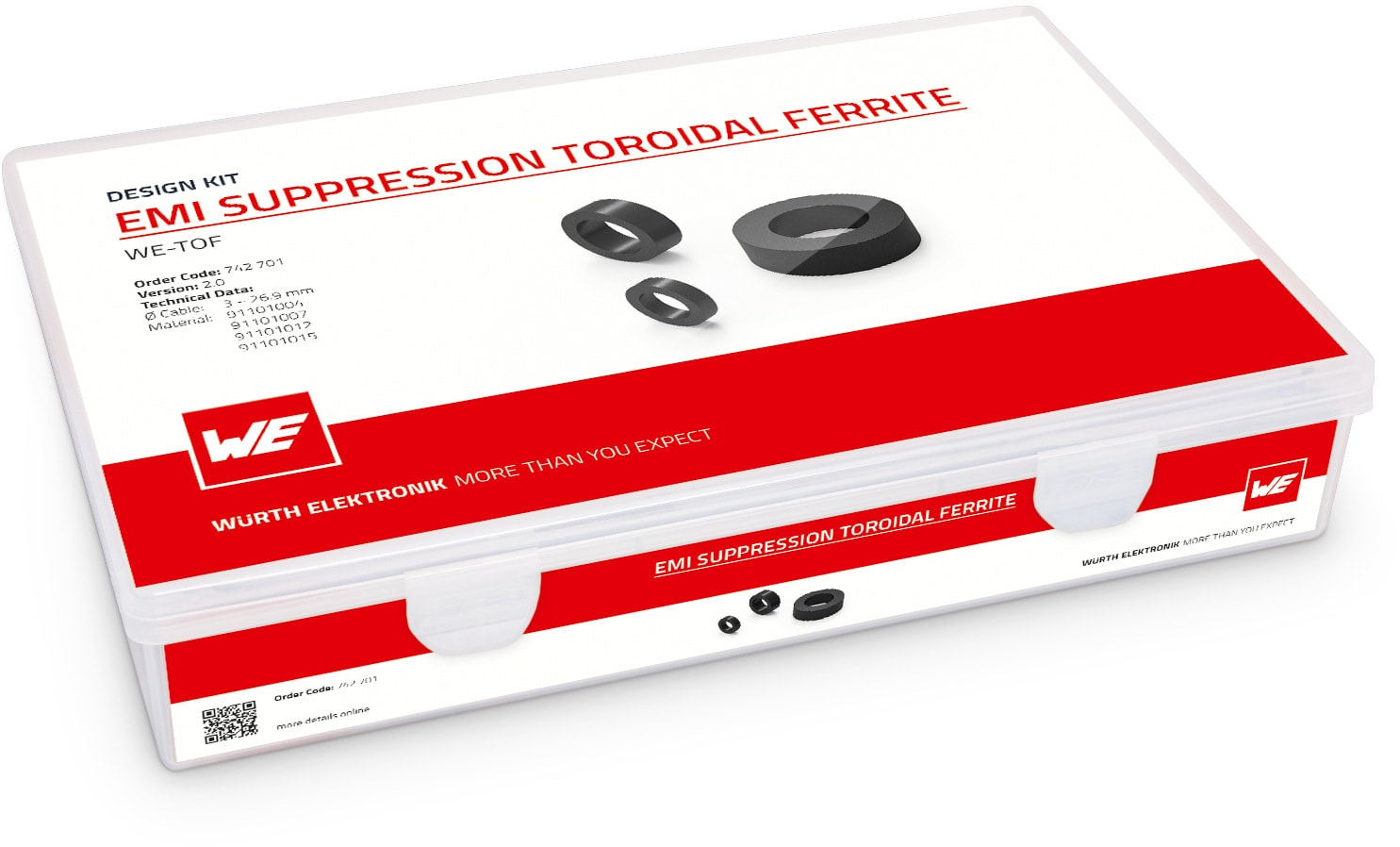

Design Kit WE-TOF EMI Suppression Toroidal Ferrite

Applications

Wires
Coaxial cables
Wire-wrapping cables
Multiconductor wires
Cable e.g. of power supplies, data and gage signal lines

Products

Order Code	Datasheet	Simulation	Downloads	Status	Product series	Ø Cable max. (mm)	Z @ 25 MHz 1 turn (Ω)	Z @ 100 MHz 1 turn (Ω)	Z @ 25 MHz 2 turns (Ω)	Z @ 100 MHz 2 turns (Ω)	Material	Version	Samples
74270111	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		2 files CAD files ZIP IGS 74270111 (rev1).igs \| 109.2 KB STP 74270111 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-TOF	3	30	50	123	151	4 W 620	Solid
74270113	SPEC		2 files CAD files ZIP IGS 74270113 (rev1).igs \| 114.7 KB STP 74270113 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-TOF	4.6	68	126	256	405	4 W 620	Solid
74270106	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		2 files CAD files ZIP IGS 74270106 (rev1).igs \| 111.1 KB STP 74270106 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-TOF	6.5	67	107	272	342	4 W 620	Solid
7427010	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		2 files CAD files ZIP IGS 7427010 (rev1).igs \| 113.2 KB STP 7427010 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-TOF	7.6	79	127	330	513	4 W 620	Solid
74270117	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		2 files CAD files ZIP IGS 74270117 (rev1).igs \| 119.8 KB STP 74270117 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-TOF	9.6	41	161	215	343	3 W 800	Solid
74270181	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		2 files CAD files ZIP IGS 74270181 (rev1).igs \| 116.5 KB STP 74270181 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-TOF	10.3	59	83	237	307	4 W 1500	Solid
7427012	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		2 files CAD files ZIP IGS 7427012 (rev1).igs \| 118.6 KB STP 7427012 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-TOF	11.8	76	148	342	471	4 W 620	Solid
74270120	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		2 files CAD files ZIP IGS 74270120 (rev1).igs \| 118.7 KB STP 74270120 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-TOF	12.5	47	88	174	290	4 W 620	Solid
74270119	SPEC		2 files CAD files ZIP IGS 74270119 (rev1).igs \| 119.9 KB STP 74270119 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-TOF	13.3	45	133	187	398	3 W 800	Solid
742701703	SPEC		2 files CAD files ZIP IGS 742701703 (rev1).igs \| 118.7 KB STP 742701703 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-TOF	14.5	50	125	195	379	7 W 380	Solid
7427014	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		2 files CAD files ZIP IGS 7427014 (rev1).igs \| 118.6 KB STP 7427014 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-TOF	15.5	99	200	411	550	3 W 800	Solid
74270115	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		2 files CAD files ZIP IGS 74270115 (rev1).igs \| 118.8 KB STP 74270115 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-TOF	18.5	80	167	221	350	3 W 800	Solid
74270151	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		2 files CAD files ZIP IGS 74270151 (rev1).igs \| 116.7 KB STP 74270151 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-TOF	20.4	56	101	207	416	4 W 620	Solid
7427015	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		2 files CAD files ZIP IGS 7427015 (rev1).igs \| 118.6 KB STP 7427015 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-TOF	26.9	54	108	217	399	4 W 620	Solid

Order Code	Datasheet	Simulation
74270111	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
74270113	SPEC
74270106	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
7427010	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
74270117	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
74270181	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
7427012	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
74270120	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
74270119	SPEC
742701703	SPEC
7427014	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
74270115	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
74270151	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
7427015	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document

Samples

Order Code	Datasheet	Simulation	Downloads	Status	Product series	Ø Cable max. (mm)	Z @ 25 MHz 1 turn (Ω)	Z @ 100 MHz 1 turn (Ω)	Z @ 25 MHz 2 turns (Ω)	Z @ 100 MHz 2 turns (Ω)	Material	Version	Samples

This assortment belongs to the following rack:

Alpha-Rack EMC: Ferrites
