| Size | Dimensions | L (mm) | W (mm) | H (mm) | Mount | ||
|---|---|---|---|---|---|---|---|

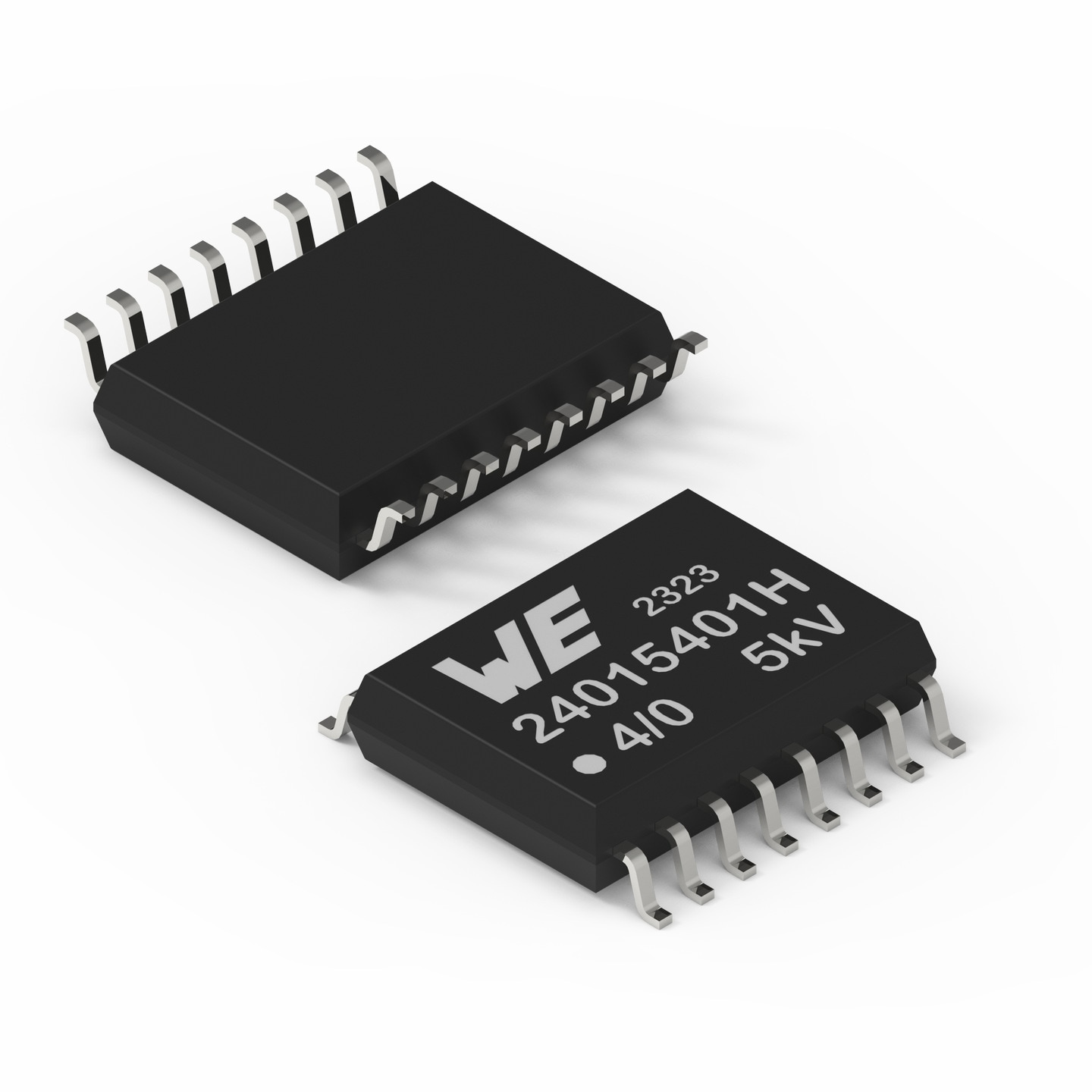

| NEW | SOIC 16WB | 10.3 | 7.5 | 2.5 | SMT |
Characteristics
- 4-channel digital isolators
- Isolation voltage up to 5000 VRMS
- 0.65W isolated integrated DC/DC power converter
- Reinforced insulation
- Signal transmission in high-speed applications (data rate up to 100 Mbps)
- High level of immunity to system noise (CMTI ±150 kV/µs)
- Industrial standard package and pin configuration
- UL 1577 Recognized
- DIN EN IEC 60747-17 (VDE 0884-17) certification
- Low conducted and radiated EMI (compliant to EN55032 class B / CISPR-32)
Applications
- Isolated communication interfaces (SPI, CAN, RS-232, RS-485)
- Motor Control
- Industrial SMPS
- Test and measurement systems
- Microcontroller and DSP application
- Industrial automation
- Programmable logic controller (PLC) interfaces
- Battery management systems
- Solar inverters
- Level shifters
Products
| Order Code | Datasheet | Simulation | Downloads | VCC min. (V) | VCC max. (V) | Channel Configuration | tPLH, tPHL (ns) | DR (Mbps) | CMTI (kV/µs) | VISO (V (RMS)) | Default Output | Evaluation Boards | Samples | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 18024015401H | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 6 files | 3.15 | 5.5 | 4/0 | 10 | 100 | 150 | 5000 | High | 18824015401H | ||
 | 18024015401L | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 6 files | 3.15 | 5.5 | 4/0 | 10 | 100 | 150 | 5000 | Low | 18824015401L | ||
 | 18024115401H | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 6 files | 3.15 | 5.5 | 3/1 | 10 | 100 | 150 | 5000 | High | 18824115401H | ||
 | 18024115401L | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 6 files | 3.15 | 5.5 | 3/1 | 10 | 100 | 150 | 5000 | Low | 18824115401L | ||
 | 18024215401H | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 6 files | 3.15 | 5.5 | 2/2 | 10 | 100 | 150 | 5000 | High | 18824215401H | ||
 | 18024215401L | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 6 files | 3.15 | 5.5 | 2/2 | 10 | 100 | 150 | 5000 | Low | 18824215401L |
| Order Code | Datasheet | Simulation | |
|---|---|---|---|
| 18024015401H | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
| 18024015401L | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
| 18024115401H | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
| 18024115401L | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
| 18024215401H | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
| 18024215401L | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. |
| Samples |
|---|
| Order Code | Datasheet | Simulation | Downloads | VCC min. (V) | VCC max. (V) | Channel Configuration | tPLH, tPHL (ns) | DR (Mbps) | CMTI (kV/µs) | VISO (V (RMS)) | Default Output | Evaluation Boards | Samples |
|---|
On-Off Keying (OOK)
Enhancing Digital Isolation
Keep Your Signal Noise-proof
Digital isolators play a Important role in modern electronics, ensuring the safe transfer of data and power between different circuits while maintaining electrical isolation. One of the key decisions when designing digital isolators is choosing the modulation scheme that best suits the application.
The WPME-CDIx series offer an On-Off Keying (OOK) modulation technique to transmit data from the Input to the Output side. It is a technique where data is encoded by switching the output between two distinct levels - typically high and low. This simplicity translates to lower complexity in both the transmitting and receiving ends of the isolator. The binary nature of OOK means that it is relatively resistant to amplitude variations caused by noise. This robustness ensures that data transmission remains reliable, even in noisy environments.
