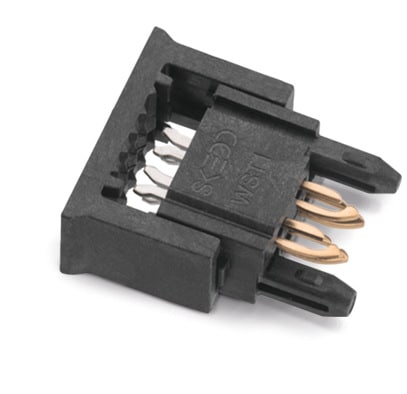

WR-WST REDFIT IDC SKEDD

Properties
Insulator Material	LCP
Insulator Flammability Rating	UL94 V-0
Insulator Color	Black
Contact Material	CuNiSi
Contact Plating	Au (SKEDD), Sn (IDC)
Pitch	2.54 mm
Operating Temperature	-25 °C up to +105 °C
Mount	SKEDD

Packaging Properties
Packaging	Tube

Electrical Properties
R_ISO	1000 MΩ
Withstanding Voltage	500 V (AC)
Contact Resistance	10 mΩ
I_R	1 A

Certification
UL Approval	[E323964]
REACh Approval	Conform or declared [(EC)1907/2006]
RoHS Approval	Compliant [2011/65/EU&2015/863]

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Pitch (mm)	Gender	L (mm)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Tol. R	Stranded Wire Section (AWG)	Packaging	I_R (A)
490107670412	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WST (rev22a).IntLib \| 6 MB CDS Cadence_WR-WST (rev19a).zip \| 7 MB EAG Eagle_WR-WST (rev19b).lbr \| 139.7 KB CAD files ZIP 3D 3D_490107670412 (rev1).pdf \| 495.6 KB IGS Download_IGS_490107670412 (rev1).igs \| 6.8 MB STP Download_STP_490107670412 (rev1).stp \| 1.5 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	2.54	Transition	12.67	100	10	max.	28 (AWG)	Tube	1
490107670612	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WST (rev22a).IntLib \| 6 MB CDS Cadence_WR-WST (rev19a).zip \| 7 MB EAG Eagle_WR-WST (rev19b).lbr \| 139.7 KB CAD files ZIP 3D 3D_490107670612 (rev1).pdf \| 555 KB IGS Download_IGS_490107670612 (rev1).igs \| 7.9 MB STP Download_STP_490107670612 (rev1).stp \| 1.8 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	2.54	Transition	15.21	100	10	max.	28 (AWG)	Tube	1
490107670812	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WST (rev22a).IntLib \| 6 MB CDS Cadence_WR-WST (rev19a).zip \| 7 MB EAG Eagle_WR-WST (rev19b).lbr \| 139.7 KB CAD files ZIP 3D 3D_490107670812 (rev1).pdf \| 610.9 KB IGS Download_IGS_490107670812 (rev1).igs \| 8.9 MB STP Download_STP_490107670812 (rev1).stp \| 2 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	2.54	Transition	17.75	100	10	max.	28 (AWG)	Tube	1
490107671012	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WST (rev22a).IntLib \| 6 MB CDS Cadence_WR-WST (rev19a).zip \| 7 MB EAG Eagle_WR-WST (rev19b).lbr \| 139.7 KB CAD files ZIP 3D 3D_490107671012 (rev1).pdf \| 671.5 KB IGS Download_IGS_490107671012 (rev1).igs \| 9.9 MB STP Download_STP_490107671012 (rev1).stp \| 2.2 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	2.54	Transition	20.29	100	10	max.	28 (AWG)	Tube	1
490107671212	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WST (rev22a).IntLib \| 6 MB CDS Cadence_WR-WST (rev19a).zip \| 7 MB EAG Eagle_WR-WST (rev19b).lbr \| 139.7 KB CAD files ZIP 3D 3D_490107671212 (rev1).pdf \| 734.3 KB IGS Download_IGS_490107671212 (rev1).igs \| 10.9 MB STP Download_STP_490107671212 (rev1).stp \| 2.5 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	2.54	Transition	22.83	100	10	max.	28 (AWG)	Tube	1
490107671412	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WST (rev22a).IntLib \| 6 MB CDS Cadence_WR-WST (rev19a).zip \| 7 MB EAG Eagle_WR-WST (rev19b).lbr \| 139.7 KB CAD files ZIP 3D 3D_490107671412 (rev1).pdf \| 799.1 KB IGS Download_IGS_490107671412 (rev1).igs \| 12 MB STP Download_STP_490107671412 (rev1).stp \| 2.7 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	14	2.54	Transition	25.37	100	10	max.	28 (AWG)	Tube	1
490107671612	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WST (rev22a).IntLib \| 6 MB CDS Cadence_WR-WST (rev19a).zip \| 7 MB EAG Eagle_WR-WST (rev19b).lbr \| 139.7 KB CAD files ZIP 3D 3D_490107671612 (rev1).pdf \| 862.5 KB IGS Download_IGS_490107671612 (rev1).igs \| 13 MB STP Download_STP_490107671612 (rev1).stp \| 2.9 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	2.54	Transition	27.91	100	10	max.	28 (AWG)	Tube	1
490107671812	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WST (rev22a).IntLib \| 6 MB CDS Cadence_WR-WST (rev19a).zip \| 7 MB EAG Eagle_WR-WST (rev19b).lbr \| 139.7 KB CAD files ZIP 3D 3D_490107671812 (rev1).pdf \| 923.8 KB IGS Download_IGS_490107671812 (rev1).igs \| 14.1 MB STP Download_STP_490107671812 (rev1).stp \| 3.2 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	18	2.54	Transition	30.45	100	10	max.	28 (AWG)	Tube	1
490107672012	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WST (rev22a).IntLib \| 6 MB CDS Cadence_WR-WST (rev19a).zip \| 7 MB EAG Eagle_WR-WST (rev19b).lbr \| 139.7 KB CAD files ZIP 3D 3D_490107672012 (rev1).pdf \| 985.6 KB IGS Download_IGS_490107672012 (rev1).igs \| 15.1 MB STP Download_STP_490107672012 (rev1).stp \| 3.4 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	2.54	Transition	32.99	100	10	max.	28 (AWG)	Tube	1

Order Code	Datasheet
490107670412	SPEC
490107670612	SPEC
490107670812	SPEC
490107671012	SPEC
490107671212	SPEC
490107671412	SPEC
490107671612	SPEC
490107671812	SPEC
490107672012	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Pitch (mm)	Gender	L (mm)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Tol. R	Stranded Wire Section (AWG)	Packaging	I_R (A)	Samples

Perfect Match

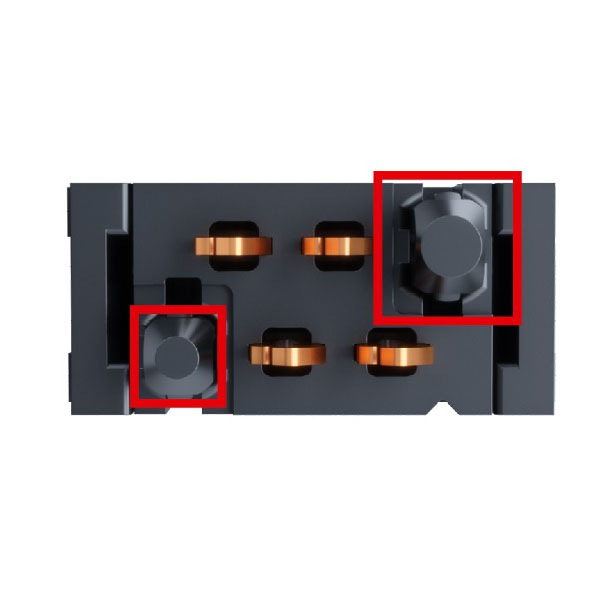

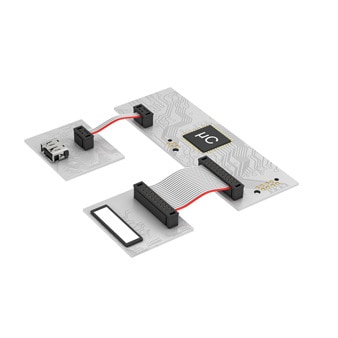

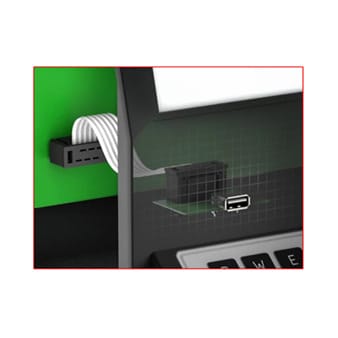

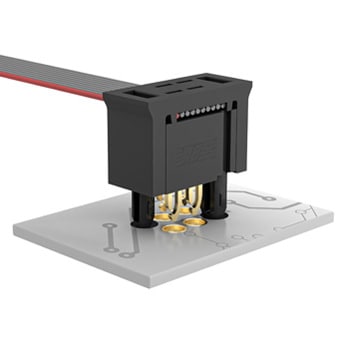

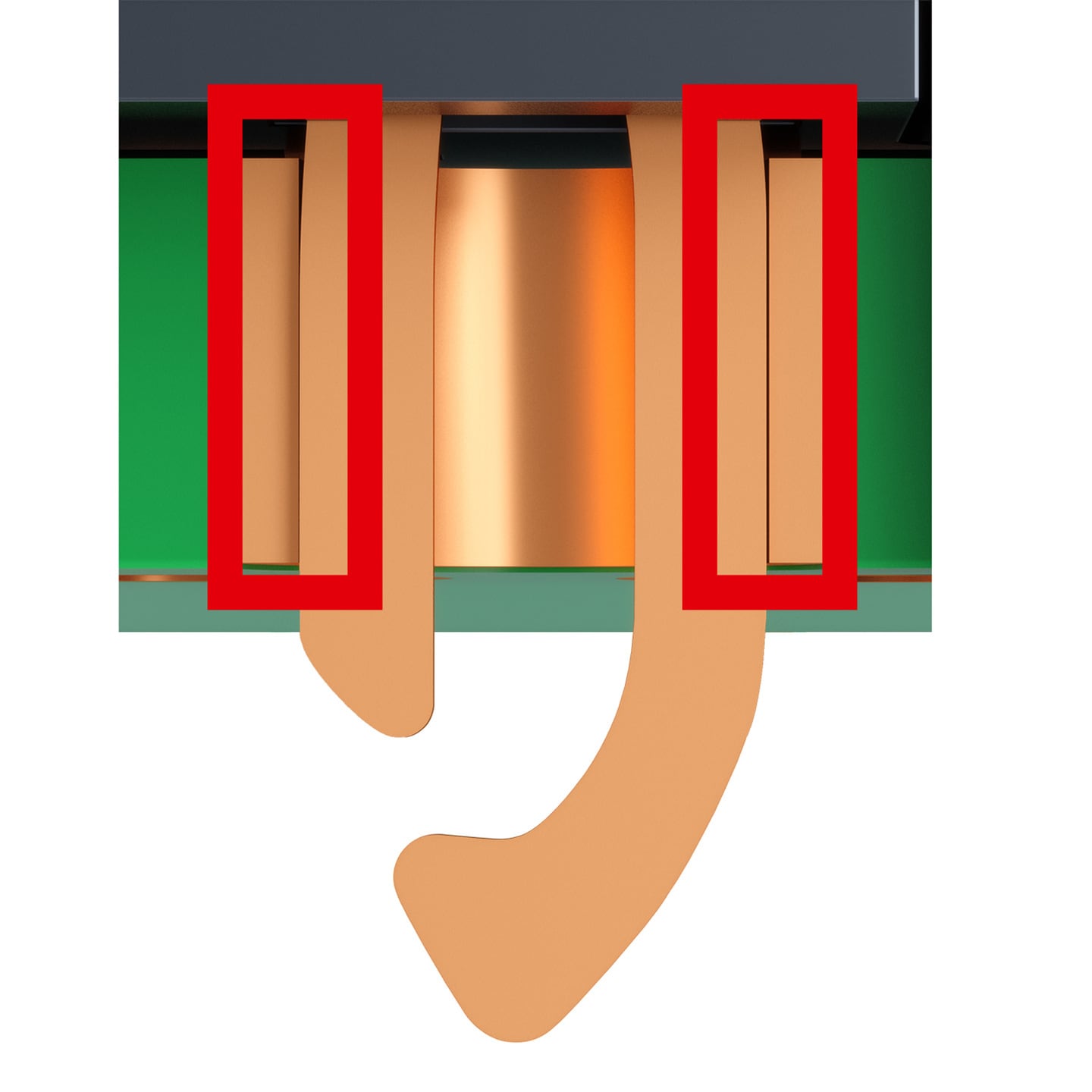

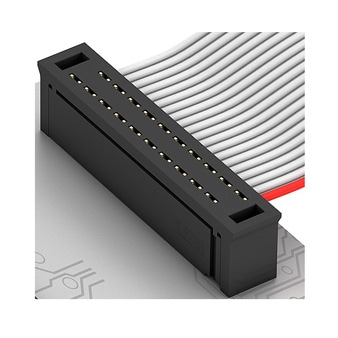

REDFIT IDC is a solderless reversible direct plug-in connector with SKEDD technology and insulation displacement connection. The SKEDD contacts are plugged directly into the plated through-holes of a PCB. A complete part and a potential error source is eliminated. This results directly in higher process reliability, savings in space, material and process costs.

REDFIT IDC – SKEDD Connector from Würth Elektronik eiSos

Behind the scenes: REDFIT IDC SKEDD Connector – Testing, production and in action

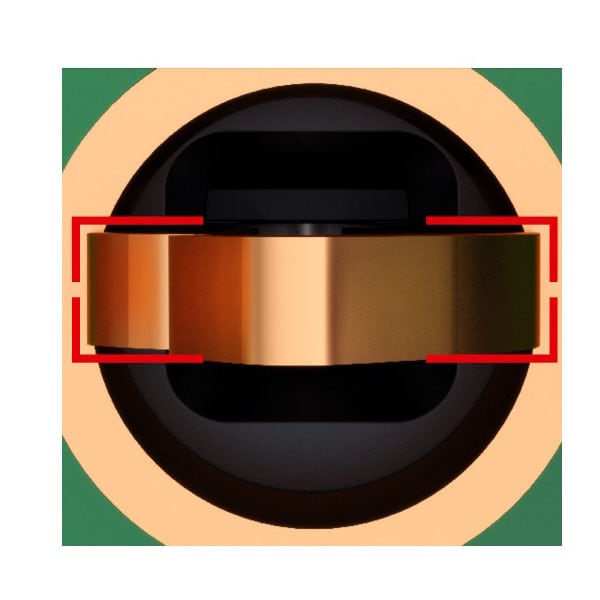

SKEDD Contact Advantages

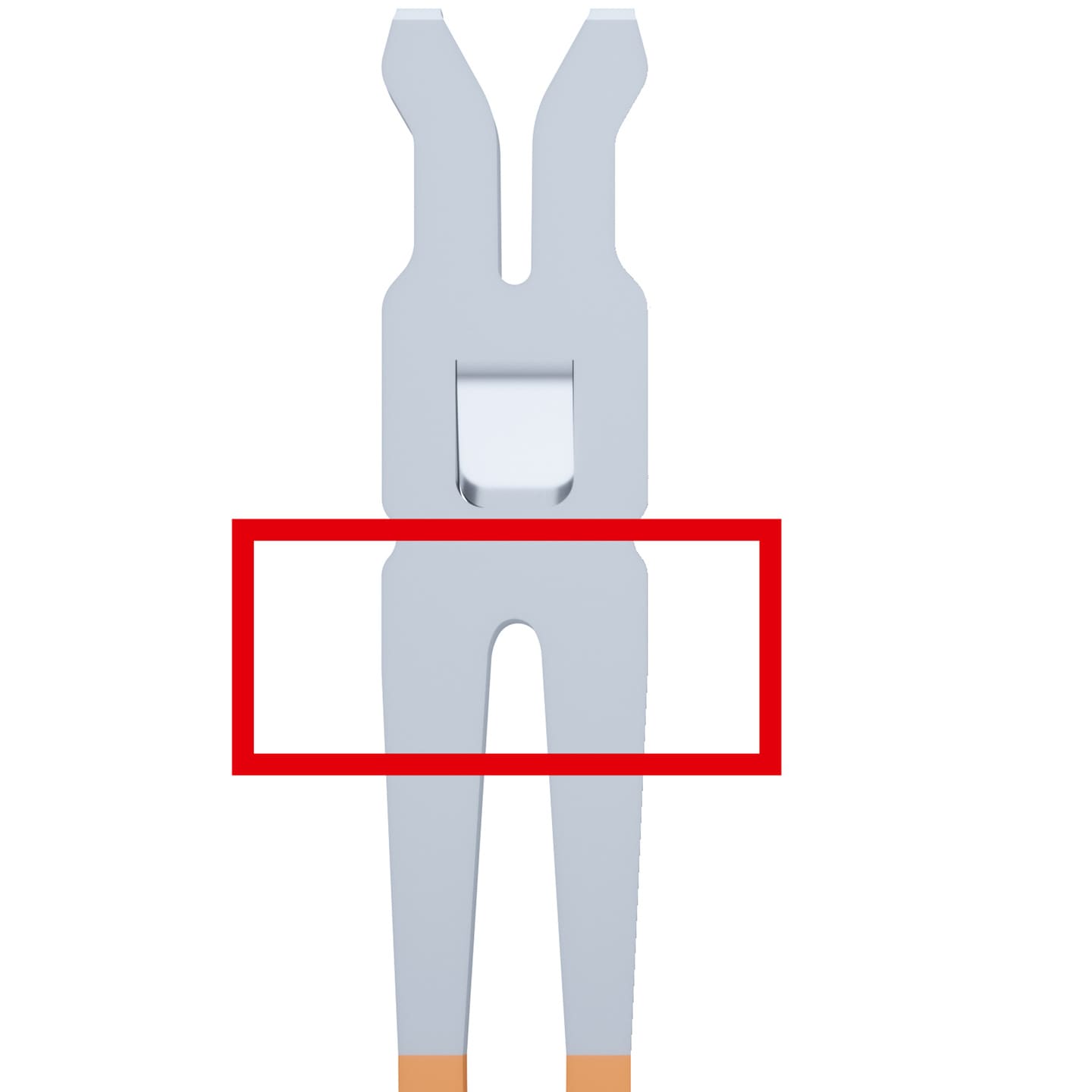

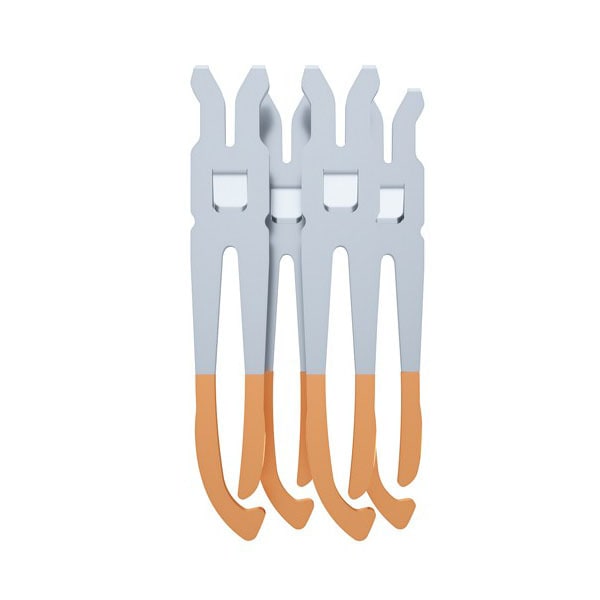

Easy and Simple Plug-in Process

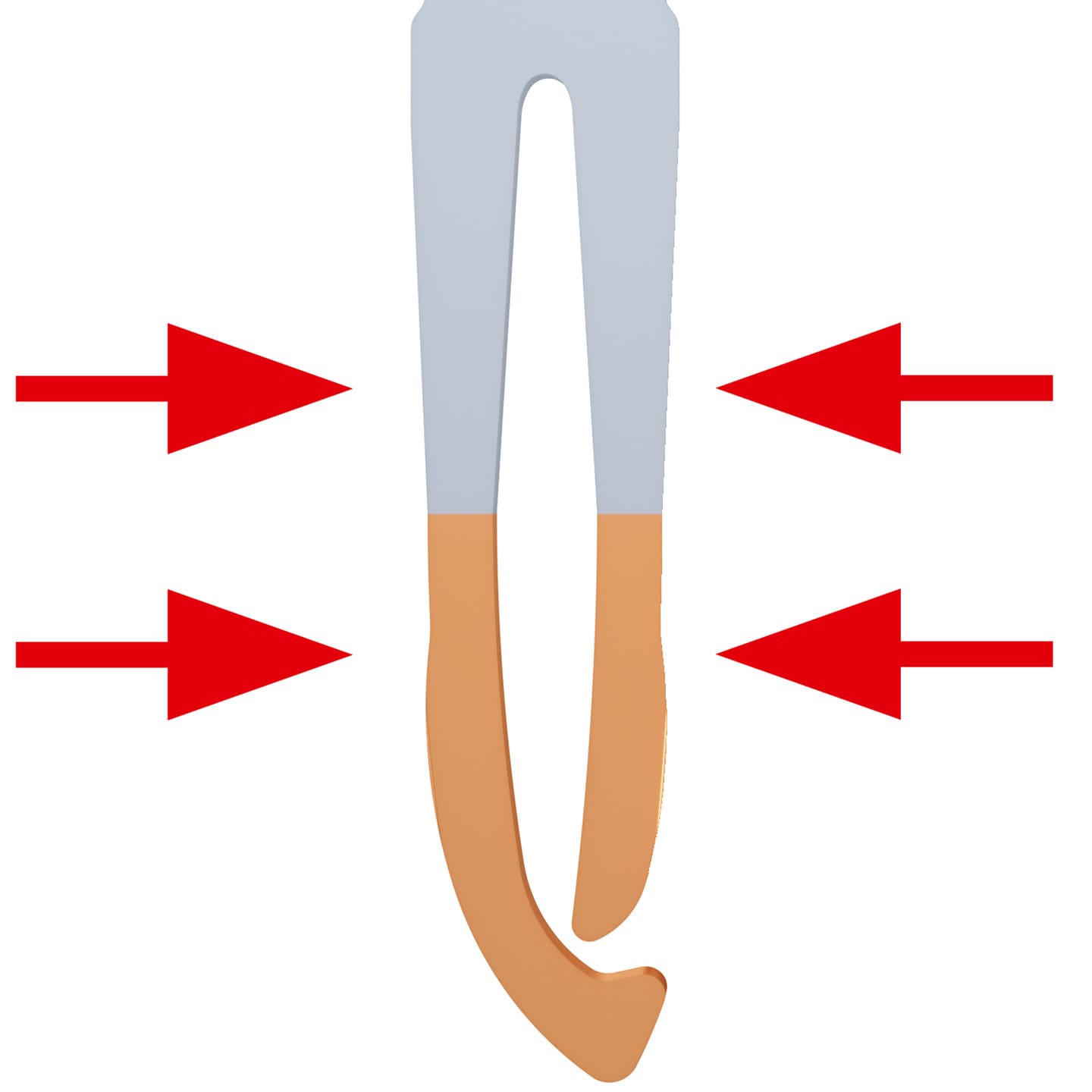

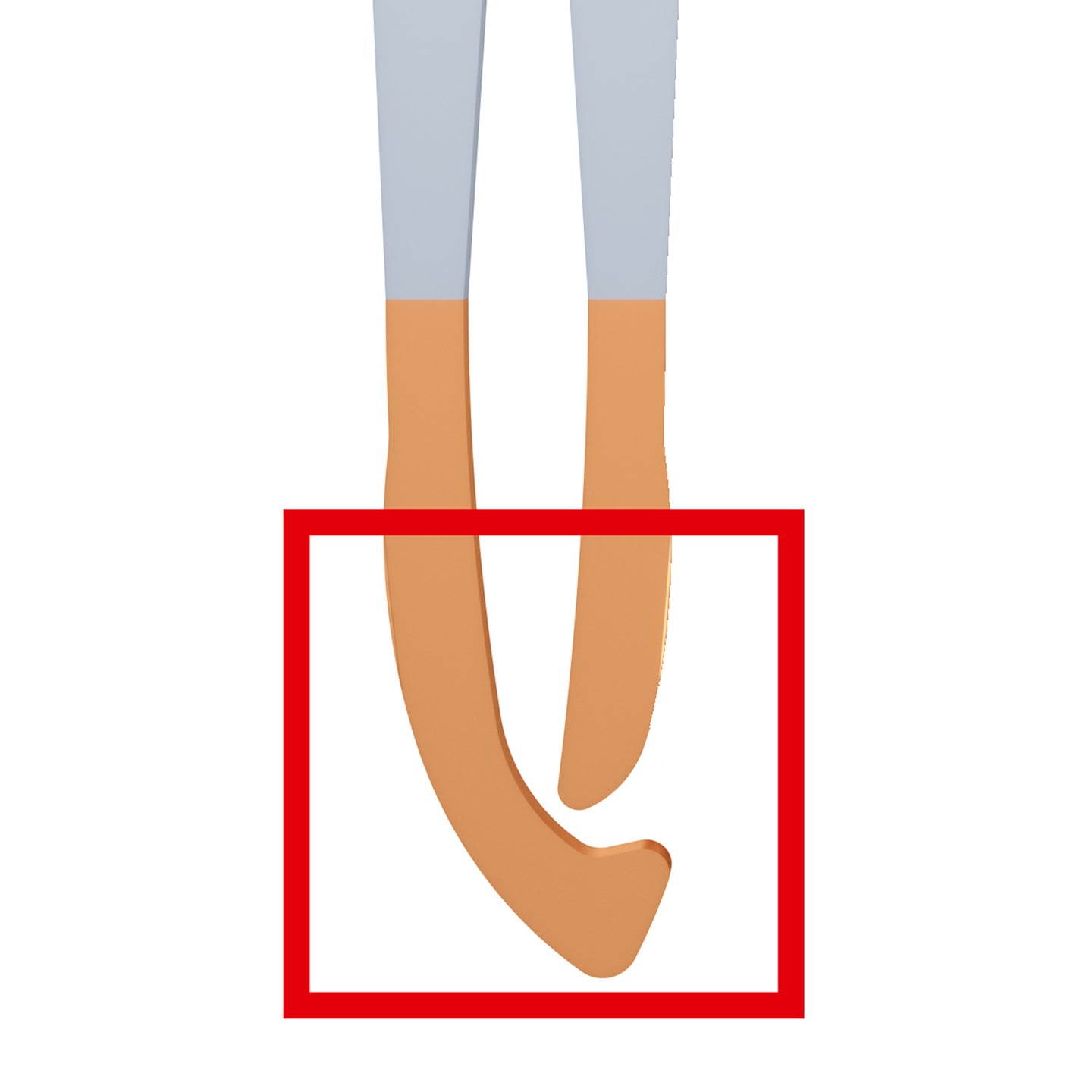

The precise design of the apex area keeps the SKEDD contact elastic to guarantee a low insertion force even for connectors with a high number of pins.
