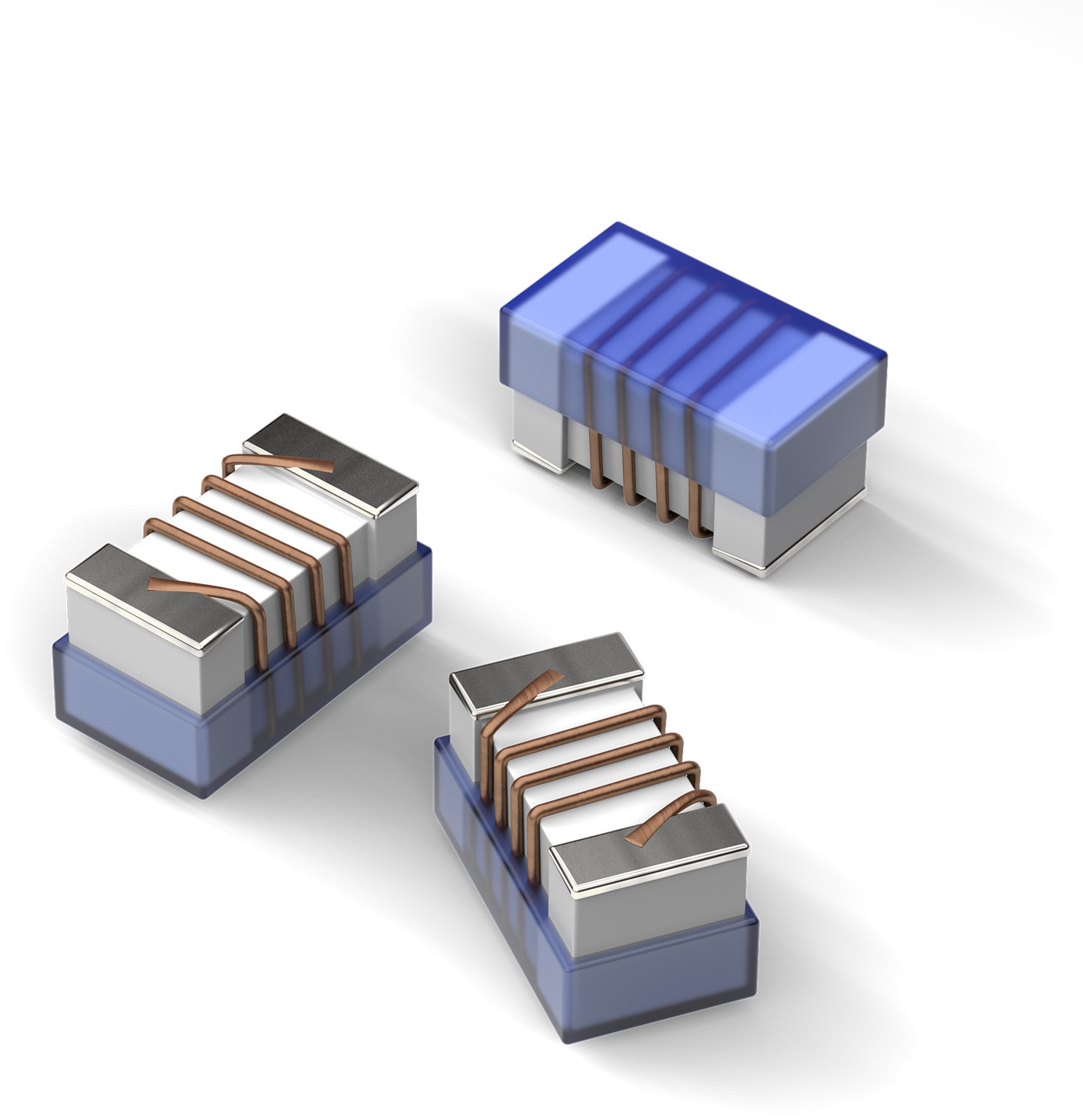

WE-KI HC SMT High Current Wire Wound Ceramic Inductor | Passive Components

Size	Dimensions	3D	L (mm)	W (mm)	H (mm)	Mount
0402			1.1	0.6	0.6	SMT
0603			1.6	1	0.8	SMT

LTSpice files

LT
LTSpice_WE-KI HC (rev22b).zip
|
8.5 KB

Characteristics

Inductance values from 1 nH up to 390 nH
High quality factor Q
High self-resonant frequency
High currents up to 2.3 A
2% Inductance tolerance
Operating temperature: -40 ° C to +125 ° C

Applications

Especially for RF application
Ideal for high current applications
Wideband filter
Decoupling

Application Notes

Modelithics Simulation Models

Incorporate this part into your design with Modelithics’ highly accurate measurement-based simulation models. Request a 90-day FREE trial! Modelithics libraries are available for Keysight Technologies’ Advanced Design System (ADS), NI/AWR Design Environment/Microwave Office™, Keysight Technologies’ Gensys, ASYSS® HFSS™, Sonnet® and Cadence.

Request a FREE 90-Day Trial!

Products

All

0402

0603

Order Code	Datasheet	Downloads	Status	L (nH)	Tol. L	Test Condition L	Q_min. (%)	Test Condition Q	R_{DC max.} (Ω)	I_R (mA)	f_res (MHz)	Design Kit
744916010	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916010 (rev23a).a3dcomp \| 716.4 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916010 (rev23a).s2p \| 79.5 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	±0.2nH	250 MHz	20	250 MHz	0.03	2300	16000	74476
744917018	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917018 (rev23a).a3dcomp \| 725.6 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917018 (rev23a).s2p \| 79.9 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1.8	±0.2nH	250 MHz	18	250 MHz	0.033	2100	16000	74476
744916020	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916020 (rev23a).a3dcomp \| 725.7 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916020 (rev23a).s2p \| 80.4 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	±0.2nH	250 MHz	24	250 MHz	0.038	2100	15200	–
744916022	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916022 (rev23a).a3dcomp \| 725.4 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916022 (rev23a).s2p \| 80.2 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.2	±0.2nH	250 MHz	25	250 MHz	0.038	2100	15100	74476
744917022	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917022 (rev23a).a3dcomp \| 719.6 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917022 (rev23a).s2p \| 83.9 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.2	±0.2nH	250 MHz	10	250 MHz	0.23	900	15000	–
744916027	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916027 (rev23a).a3dcomp \| 725.9 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916027 (rev23a).s2p \| 80.6 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.7	±0.2nH	250 MHz	24	250 MHz	0.56	1500	13000	–
744916033	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916033 (rev23a).a3dcomp \| 725.3 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916033 (rev23a).s2p \| 80.5 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.3	±0.2nH	250 MHz	28	250 MHz	0.045	1700	12800	74476
744917033	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917033 (rev23a).a3dcomp \| 725.3 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917033 (rev23a).s2p \| 80.2 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.3	±0.2nH	250 MHz	26	250 MHz	0.024	1900	9600	–
744916036	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916036 (rev23a).a3dcomp \| 725.9 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916036 (rev23a).s2p \| 80.5 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.6	±0.2nH	250 MHz	28	250 MHz	0.045	1700	11700	–
744917036	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917036 (rev23a).a3dcomp \| 725.8 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917036 (rev23a).s2p \| 83.5 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.6	±0.2nH	250 MHz	32	250 MHz	0.031	1900	9700	–
744916039	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916039 (rev23a).a3dcomp \| 714 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916039 (rev23a).s2p \| 80 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.9	±0.2nH	250 MHz	28	250 MHz	0.045	1700	9500	–
744917039	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917039 (rev23a).a3dcomp \| 725.4 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917039 (rev23a).s2p \| 79.9 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.9	±0.2nH	250 MHz	28	250 MHz	0.039	1600	7500	74476
744916043	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916043 (rev23a).a3dcomp \| 725.5 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916043 (rev23a).s2p \| 80.5 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.3	±0.2nH	250 MHz	27	250 MHz	0.04	1600	7150	74476
744917043	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917043 (rev23a).a3dcomp \| 716.1 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917043 (rev23a).s2p \| 80 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.3	±0.2nH	250 MHz	24	250 MHz	0.08	1300	7500	–
744916047	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916047 (rev23a).a3dcomp \| 725.4 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916047 (rev23a).s2p \| 80.6 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.7	±0.2nH	250 MHz	23	250 MHz	0.06	1500	6850	–
744916051	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916051 (rev23a).a3dcomp \| 725.7 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916051 (rev23a).s2p \| 80.6 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5.1	±0.2nH	250 MHz	20	250 MHz	0.1	1200	6800	74476
744917051	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917051 (rev23a).a3dcomp \| 728.4 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917051 (rev23a).s2p \| 80.5 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5.1	±0.2nH	250 MHz	32	250 MHz	0.036	1700	8900	–
744916056	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916056 (rev23a).a3dcomp \| 713.9 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916056 (rev23a).s2p \| 80.1 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5.6	±0.2nH	250 MHz	29	250 MHz	0.048	1600	6500	–
744917056	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917056 (rev23a).a3dcomp \| 728.4 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917056 (rev23a).s2p \| 80.3 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5.6	±0.2nH	250 MHz	38	250 MHz	0.036	1700	6600	74476
744917060	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917060 (rev23a).a3dcomp \| 728.7 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917060 (rev23a).s2p \| 79.8 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	±0.2nH	250 MHz	39	250 MHz	0.036	1700	6000	–
744916062	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916062 (rev23a).a3dcomp \| 714 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916062 (rev23a).s2p \| 79.8 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6.2	±0.2nH	250 MHz	29	250 MHz	0.05	1600	5800	74476
744916068	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916068 (rev23a).a3dcomp \| 726.2 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916068 (rev23a).s2p \| 80.3 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6.8	±2%	250 MHz	28	250 MHz	0.055	1500	5800	74476
744917068	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917068 (rev23a).a3dcomp \| 717.7 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917068 (rev23a).s2p \| 79.8 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6.8	±2%	250 MHz	34	250 MHz	0.042	1400	5800	74476
744917072	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917072 (rev23a).a3dcomp \| 725.9 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917072 (rev23a).s2p \| 79.9 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7.2	±2%	250 MHz	38	250 MHz	0.07	1400	5400	–
744917075	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917075 (rev23a).a3dcomp \| 725.3 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917075 (rev23a).s2p \| 83.2 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7.5	±2%	250 MHz	33	250 MHz	0.08	1300	5300	–
744916082	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916082 (rev23a).a3dcomp \| 727.5 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916082 (rev23a).s2p \| 79.9 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8.2	±2%	250 MHz	28	250 MHz	0.058	1500	5400	–
744917082	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917082 (rev23a).a3dcomp \| 715.8 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917082 (rev23a).s2p \| 84.4 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8.2	±2%	250 MHz	37	250 MHz	0.054	1400	5900	–
744916087	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916087 (rev23a).a3dcomp \| 727 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916087 (rev23a).s2p \| 80.7 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8.7	±2%	250 MHz	29	250 MHz	0.065	1500	5000	74476
744917087	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917087 (rev23a).a3dcomp \| 717.5 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917087 (rev23a).s2p \| 80 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8.7	±2%	250 MHz	46	250 MHz	0.054	1400	5500	–
744916090	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916090 (rev23a).a3dcomp \| 727.1 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916090 (rev23a).s2p \| 80.6 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9	±2%	250 MHz	27	250 MHz	0.073	1400	5000	–
744917091	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917091 (rev23a).a3dcomp \| 716.3 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917091 (rev23a).s2p \| 79.8 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9.1	±2%	250 MHz	32	250 MHz	0.058	1400	5100	74476
744916095	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916095 (rev23a).a3dcomp \| 715.7 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916095 (rev23a).s2p \| 79.9 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9.5	±2%	250 MHz	28	250 MHz	0.075	1400	4700	–
744917095	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917095 (rev23a).a3dcomp \| 718.8 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917095 (rev23a).s2p \| 80 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9.5	±2%	250 MHz	39	250 MHz	0.053	1400	4900	–
744916110	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916110 (rev23a).a3dcomp \| 715.9 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916110 (rev23a).s2p \| 80 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	±2%	250 MHz	26	250 MHz	0.085	1300	4700	74476
744917110	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917110 (rev23a).a3dcomp \| 726.6 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917110 (rev23a).s2p \| 79.6 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	±2%	250 MHz	39	250 MHz	0.048	1400	4300	–
744916111	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916111 (rev23a).a3dcomp \| 727.1 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916111 (rev23a).s2p \| 80 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	11	±2%	250 MHz	29	250 MHz	0.065	1400	4700	–
744917111	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917111 (rev23a).a3dcomp \| 725.8 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917111 (rev23a).s2p \| 79.8 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	11	±2%	250 MHz	33	250 MHz	0.058	1400	4100	–
744916112	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916112 (rev23a).a3dcomp \| 727.4 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916112 (rev23a).s2p \| 80.4 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	±2%	250 MHz	28	250 MHz	0.07	1200	4400	74476
744917112	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917112 (rev23a).a3dcomp \| 715.9 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917112 (rev23a).s2p \| 79.6 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	±2%	250 MHz	30	250 MHz	0.115	1100	4100	–
744916113	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916113 (rev23a).a3dcomp \| 715.8 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916113 (rev23a).s2p \| 80.1 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	13	±2%	250 MHz	27	250 MHz	0.14	870	4200	–
744916115	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916115 (rev23a).a3dcomp \| 715.6 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916115 (rev23a).s2p \| 80.4 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15	±2%	250 MHz	28	250 MHz	0.13	1100	3900	74476
744917115	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917115 (rev23a).a3dcomp \| 728.9 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917115 (rev23a).s2p \| 79.8 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15	±2%	250 MHz	38	250 MHz	0.078	1200	3600	74476
744916116	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916116 (rev23a).a3dcomp \| 715.6 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916116 (rev23a).s2p \| 80.1 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	±2%	250 MHz	27	250 MHz	0.13	850	3700	–
744917116	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917116 (rev23a).a3dcomp \| 714 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917116 (rev23a).s2p \| 79.7 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	±2%	250 MHz	36	250 MHz	0.085	1100	3500	–
744916118	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916118 (rev23a).a3dcomp \| 715.4 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916118 (rev23a).s2p \| 80.3 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	18	±2%	250 MHz	26	250 MHz	0.12	900	3550	74476
744917118	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917118 (rev23a).a3dcomp \| 725.3 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917118 (rev23a).s2p \| 83.3 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	18	±2%	250 MHz	33	250 MHz	0.066	1200	3300	–
744916119	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916119 (rev23a).a3dcomp \| 715.8 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916119 (rev23a).s2p \| 80.2 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	19	±2%	250 MHz	26	250 MHz	0.175	850	3500	–
744916121	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916121 (rev23a).a3dcomp \| 710.8 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916121 (rev23a).s2p \| 80.2 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	21	±2%	250 MHz	25	250 MHz	0.46	450	1700	–
744916122	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916122 (rev23a).a3dcomp \| 715.9 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916122 (rev23a).s2p \| 80.3 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	±2%	250 MHz	28	250 MHz	0.25	800	3300	74476
744917122	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917122 (rev23a).a3dcomp \| 717.1 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917122 (rev23a).s2p \| 79.7 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	±2%	250 MHz	35	250 MHz	0.14	850	3150	74476
744916123	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916123 (rev23a).a3dcomp \| 715.6 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916123 (rev23a).s2p \| 80.2 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	23	±2%	250 MHz	28	250 MHz	0.16	800	3300	–
744917123	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917123 (rev23a).a3dcomp \| 717.4 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917123 (rev23a).s2p \| 79.6 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	23	±2%	250 MHz	32	250 MHz	0.19	850	3000	–
744916124	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916124 (rev23a).a3dcomp \| 715 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916124 (rev23a).s2p \| 80.1 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	24	±2%	250 MHz	27	250 MHz	0.29	700	3150	–
744917124	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917124 (rev23a).a3dcomp \| 725.9 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917124 (rev23a).s2p \| 79.8 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	24	±2%	250 MHz	34	250 MHz	0.074	1100	2950	–
744916125	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916125 (rev23a).a3dcomp \| 715.5 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916125 (rev23a).s2p \| 80.3 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	25	±2%	250 MHz	26	250 MHz	0.3	700	3150	74476
744916126	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916126 (rev23a).a3dcomp \| 710.2 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916126 (rev23a).s2p \| 80.3 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	26	±2%	250 MHz	27	250 MHz	0.275	700	3150	–
744916127	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916127 (rev23a).a3dcomp \| 710.6 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916127 (rev23a).s2p \| 80.4 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	27	±2%	250 MHz	27	250 MHz	0.33	450	3200	–
744917127	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917127 (rev23a).a3dcomp \| 714.2 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917127 (rev23a).s2p \| 79.7 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	27	±2%	250 MHz	35	250 MHz	0.2	780	2800	74476
744916130	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916130 (rev23a).a3dcomp \| 710.2 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916130 (rev23a).s2p \| 80.3 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	30	±2%	250 MHz	25	250 MHz	0.4	450	2900	–
744917130	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917130 (rev23a).a3dcomp \| 717.4 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917130 (rev23a).s2p \| 80 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	30	±2%	250 MHz	39	250 MHz	0.16	920	2800	–
744916133	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916133 (rev23a).a3dcomp \| 711 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916133 (rev23a).s2p \| 80.2 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	33	±2%	250 MHz	28	250 MHz	0.33	490	2800	74476
744917133	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917133 (rev23a).a3dcomp \| 713.8 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917133 (rev23a).s2p \| 79.9 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	33	±2%	250 MHz	36	250 MHz	0.22	680	2700	–
744916136	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916136 (rev23a).a3dcomp \| 710.6 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916136 (rev23a).s2p \| 80.2 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	36	±2%	250 MHz	26	250 MHz	0.36	480	2800	–
744917136	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917136 (rev23a).a3dcomp \| 710.7 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917136 (rev23a).s2p \| 79.9 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	36	±2%	250 MHz	35	250 MHz	0.225	720	2500	74476
744916137	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916137 (rev23a).a3dcomp \| 710.8 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916137 (rev23a).s2p \| 80.2 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	37	±2%	250 MHz	26	250 MHz	0.48	470	2700	–
744916139	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916139 (rev23a).a3dcomp \| 710.8 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916139 (rev23a).s2p \| 80.5 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	39	±2%	250 MHz	28	250 MHz	0.43	450	2600	74476
744917139	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917139 (rev23a).a3dcomp \| 714.2 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917139 (rev23a).s2p \| 79.9 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	39	±2%	250 MHz	38	250 MHz	0.25	680	2450	–
744916140	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916140 (rev23a).a3dcomp \| 710.5 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916140 (rev23a).s2p \| 80.4 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	40	±2%	250 MHz	28	250 MHz	0.52	450	2600	–
744916143	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916143 (rev23a).a3dcomp \| 710.7 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916143 (rev23a).s2p \| 80.4 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	43	±2%	250 MHz	26	250 MHz	0.52	450	2500	–
744917143	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917143 (rev23a).a3dcomp \| 714.2 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917143 (rev23a).s2p \| 79.9 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	43	±2%	250 MHz	36	250 MHz	0.225	810	2450	–
744916147	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916147 (rev23a).a3dcomp \| 710.7 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916147 (rev23a).s2p \| 80.4 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	47	±2%	250 MHz	28	250 MHz	0.58	420	2400	74476
744917147	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917147 (rev23a).a3dcomp \| 712.2 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917147 (rev23a).s2p \| 80 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	47	±2%	200 MHz	38	250 MHz	0.24	680	2300	–
744916151	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744916151 (rev23a).a3dcomp \| 710.7 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0402 (rev1).igs \| 409.2 KB STP Download_STP_WE-KIHC-0402 (rev1).stp \| 286.2 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744916151 (rev23a).s2p \| 80.2 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	51	±2%	250 MHz	26	250 MHz	0.7	360	2300	74476
744917151	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917151 (rev23a).a3dcomp \| 712.2 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917151 (rev23a).s2p \| 79.9 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	51	±2%	200 MHz	39	250 MHz	0.28	660	2300	74476
744917156	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917156 (rev23a).a3dcomp \| 712.1 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917156 (rev23a).s2p \| 80 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	56	±2%	200 MHz	40	250 MHz	0.3	610	2200	–
744917168	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917168 (rev23a).a3dcomp \| 709.4 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917168 (rev23a).s2p \| 80 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	68	±2%	200 MHz	37	250 MHz	0.33	600	2000	–
744917172	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917172 (rev23a).a3dcomp \| 712.7 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917172 (rev23a).s2p \| 79.9 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	72	±2%	150 MHz	37	250 MHz	0.42	550	1900	–
744917175	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917175 (rev23a).a3dcomp \| 709.5 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917175 (rev23a).s2p \| 80 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	75	±2%	150 MHz	37	250 MHz	0.52	500	1900	74476
744917182	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917182 (rev23a).a3dcomp \| 712.1 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917182 (rev23a).s2p \| 79.9 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	82	±2%	150 MHz	35	250 MHz	0.46	510	1800	–
744917191	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917191 (rev23a).a3dcomp \| 712.7 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917191 (rev23a).s2p \| 83.8 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	91	±2%	150 MHz	36	250 MHz	0.58	440	1650	–
744917210	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917210 (rev23a).a3dcomp \| 709.2 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917210 (rev23a).s2p \| 80.1 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	100	±2%	150 MHz	35	250 MHz	0.54	470	1700	74476
744917211	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917211 (rev23a).a3dcomp \| 712.4 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917211 (rev23a).s2p \| 79.9 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	110	±2%	150 MHz	38	250 MHz	0.58	440	1600	–
744917212	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917212 (rev23a).a3dcomp \| 712.4 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917212 (rev23a).s2p \| 79.9 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	120	±2%	150 MHz	32	250 MHz	0.72	420	1550	–
744917215	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917215 (rev23a).a3dcomp \| 712.6 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917215 (rev23a).s2p \| 80 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	150	±2%	150 MHz	38	250 MHz	0.82	390	1350	74476
744917218	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917218 (rev23a).a3dcomp \| 709.1 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917218 (rev23a).s2p \| 80 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	180	±2%	100 MHz	25	250 MHz	1.5	310	1300	–
744917220	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917220 (rev23a).a3dcomp \| 712.4 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917220 (rev23a).s2p \| 79.9 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	200	±2%	100 MHz	38	250 MHz	2	280	1250	74476
744917221	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917221 (rev23a).a3dcomp \| 712.5 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917221 (rev23a).s2p \| 79.8 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	210	±2%	100 MHz	24	250 MHz	2	280	1200	–
744917222	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917222 (rev23a).a3dcomp \| 712.5 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917222 (rev23a).s2p \| 80 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	220	±2%	100 MHz	25	250 MHz	2	280	1100	74476
744917225	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917225 (rev23a).a3dcomp \| 708.9 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917225 (rev23a).s2p \| 80 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	250	±2%	100 MHz	25	250 MHz	3	240	1050	–
744917227	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917227 (rev23a).a3dcomp \| 712.1 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917227 (rev23a).s2p \| 80 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	270	±2%	100 MHz	25	250 MHz	2.25	260	1050	74476
744917230	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917230 (rev23a).a3dcomp \| 719.5 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917230 (rev23a).s2p \| 80.1 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	300	±2%	100 MHz	25	250 MHz	2.8	220	990	–
744917233	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917233 (rev23a).a3dcomp \| 722.5 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917233 (rev23a).s2p \| 79.7 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	330	±2%	100 MHz	25	250 MHz	3.6	180	930	74476
744917236	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917236 (rev23a).a3dcomp \| 719.5 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917236 (rev23a).s2p \| 84 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	360	±2%	100 MHz	25	250 MHz	4.6	170	930	–
744917239	SPEC	10 files EDA models: Components ZIP ALT Altium_WE-KI HC (rev24a).IntLib \| 266.5 KB ANS ANSYS_744917239 (rev23a).a3dcomp \| 719.4 KB ZUK Cadstar_WE-KIHC (rev19a).zip \| 8.9 KB CDS Cadence_WE-KI HC (rev24a).zip \| 1.2 MB EAG Eagle_WE-KIHC (rev24a).lbr \| 69 KB CAD files ZIP IGS Download_IGS_WE-KIHC-0603 (rev1).igs \| 340.4 KB STP Download_STP_WE-KIHC-0603 (rev1).stp \| 218.6 KB Electric models ZIP ADS ADS_WE-KIHC (rev24a).zip \| 7.6 MB S S-Parameter_744917239 (rev23a).s2p \| 80 KB PSP PSpice_WE-KI HC (rev22b).zip \| 21.4 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	390	±2%	100 MHz	25	250 MHz	4.7	170	880	74476

Order Code	Datasheet	Simulation
744916010	SPEC
744917018	SPEC
744916020	SPEC
744916022	SPEC
744917022	SPEC
744916027	SPEC
744916033	SPEC
744917033	SPEC
744916036	SPEC
744917036	SPEC
744916039	SPEC
744917039	SPEC
744916043	SPEC
744917043	SPEC
744916047	SPEC
744916051	SPEC
744917051	SPEC
744916056	SPEC
744917056	SPEC
744917060	SPEC
744916062	SPEC
744916068	SPEC
744917068	SPEC
744917072	SPEC
744917075	SPEC
744916082	SPEC
744917082	SPEC
744916087	SPEC
744917087	SPEC
744916090	SPEC
744917091	SPEC
744916095	SPEC
744917095	SPEC
744916110	SPEC
744917110	SPEC
744916111	SPEC
744917111	SPEC
744916112	SPEC
744917112	SPEC
744916113	SPEC
744916115	SPEC
744917115	SPEC
744916116	SPEC
744917116	SPEC
744916118	SPEC
744917118	SPEC
744916119	SPEC
744916121	SPEC
744916122	SPEC
744917122	SPEC
744916123	SPEC
744917123	SPEC
744916124	SPEC
744917124	SPEC
744916125	SPEC
744916126	SPEC
744916127	SPEC
744917127	SPEC
744916130	SPEC
744917130	SPEC
744916133	SPEC
744917133	SPEC
744916136	SPEC
744917136	SPEC
744916137	SPEC
744916139	SPEC
744917139	SPEC
744916140	SPEC
744916143	SPEC
744917143	SPEC
744916147	SPEC
744917147	SPEC
744916151	SPEC
744917151	SPEC
744917156	SPEC
744917168	SPEC
744917172	SPEC
744917175	SPEC
744917182	SPEC
744917191	SPEC
744917210	SPEC
744917211	SPEC
744917212	SPEC
744917215	SPEC
744917218	SPEC
744917220	SPEC
744917221	SPEC
744917222	SPEC
744917225	SPEC
744917227	SPEC
744917230	SPEC
744917233	SPEC
744917236	SPEC
744917239	SPEC

Samples

Order Code	Datasheet	Simulation	Downloads	Status	L (nH)	Tol. L	Test Condition L	Q_min. (%)	Test Condition Q	R_{DC max.} (Ω)	I_R (mA)	f_res (MHz)	Design Kit	Samples

Würth Elektronik offers several product series with different construction technology

RF Inductors selection guide

WE-KI Wire Wound Ceramic Inductor

Inductance values from 1nH up to 1800nH
High Q factor
Up to 12.5GHz self resonant frequency
Up to ± 2% inductance tolerance
High thermal stability
Design Kits available for the different sizes

WE-KI High Current Wire Wound Ceramic Inductor

Inductance values from 1nH up to 390nH
Excellent Q factor
High current up to 2.3 A
± 2% Inductance Tolerance
High thermal stability
Design Kit available

WE-MK Multilayer Ceramic Inductor

Inductance values from 1nH up to 470nH
Extremly small size (up to 0201)
Up to ±2% (or ±0.1nH) inductance tolerance
Robust structure
Polarity marking available
Design Kits available for the different sizes
High thermal stability

WE-CAIR Air Core Inductor

Inductance values from 1.65nH up to 538nH
Extremly high Q factor (Q>100)
Very high current up to 4 A
High self resonant frequency
Design Kit available
High thermal stability

WE-TCI Thin Film Inductor

Inductance values from 1nH up to 27nH
High self resonant frequency
Tight tolerance of 2 % (1% on request) or ± 0.1
Very small size (up to 0201)

WE-RFI Wire Wound ferrite inductor

High inductance values available from 20 nH up to 47 µH
Operating temperature:–40 °C to +85 °C
Size: 0402 to 1008
Design Kit available

What is the Quality Factor Q?

The quality factor Q is an essential characteristic parameter and one of the first creterias that every RF engineer should take into account. The Q factor is given either as minimum or as typical value at a defined frequency point. In the case of Würth Elektronik, the Q factor is given as the minimum value in order to guarantee customers a reliable minimum level.

Basically, the Q factor is the ratio between the inductive reactance X_L and the losses R_S and is an indicator of how ideal an inductor is. For inductors with air or ceramic cores, the resistance R_S is mainly due to the resistivity of the conductor in the inductor device. A higher Q factor means less losses in the component.

Self Resonant Frequency

Because the winding structure of any coil of wire will exhibit some capacitance, the inductor will serve as a parallel resonant tank circuit with an associated self-resonance frequency (SRF). As with conventional inductors, SRF indicates up to which frequency the inductor behaves as an inductor.

Exactly at the SRF the inductor with its parasitic capacitance behaves as a resonance circuit with an almost infinite high impedance, only circuit losses limit the high value of the impedance. Beyond the SRF the “inductor” behaves like a capacitor

Increasing the inductance and/or the parasitic capacitance lowers the SRF, and vice versa. This is the reason why the higher the inductance value, the lower the SRF.

In case of choke applications in which inductors are used, the best signal blocking occurs shortly below the SRF, where the impedance is very high and thus the attenuation reaches its maximum. For filter or impedance-matching applications, it is more important to have constant inductance in the relevant frequency range, which means the SRF of the inductor should be well above the operating frequency of the circuit.

Rated Current in high frequency application

The rated current is specified as the maximum DC current (A or mA) that causes a defined temperature rise (i.e. ΔT = 40 K). The temperature rise plus the ambient temperature must not exceed the maximum operating temperature. For high current applications, please select the specific air core inductors: WE-KI HC, WE-ACHC and WE-CAIR.

RF inductors and Antenna Matching

How Antenna Matching works

With the help of the Smith chart, the complex antenna feed point impedance, consisting of resistive and reactive values, can be represented graphically. In a matched antenna, the impedance at the operating frequency is close to the middle of the Smith chart and therefore close to the impedance of 50 Ω. This can be achieved by using RF inductors and RF capacitors. A pi matching network is particularly useful for this purpose, since it can be used flexibly for antenna matching from almost any other impedance. In practice, antenna matching works through iterative steps.

In addition to the WE-MCA Antennas, we offer our customers a development-accompanying antenna service. We support from the antenna selection over the antenna placement up to the antenna matching.

Website: www.we-online.com/antenna-matching

E-Mail: antenna.matching@we-online.com

We are also offering an Antenna Matching Design Kit that contains all the components needed for your antenna matching. This Design Kit with order code 748001, contains chip antennas WE-MCA, multilayer ceramic inductors WE-MK size 0402, high frequency chip capacitors WCAP-CSRF in size 0402 and RF coaxial cables WR-CXARY working up to 18 GHz

Suitable for

WE-MCA Antennas

WCAP-CSRF High Frequency

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WE-KI HC SMT High Current Ceramic Inductor 0402/0603 - ±2% Tol.
