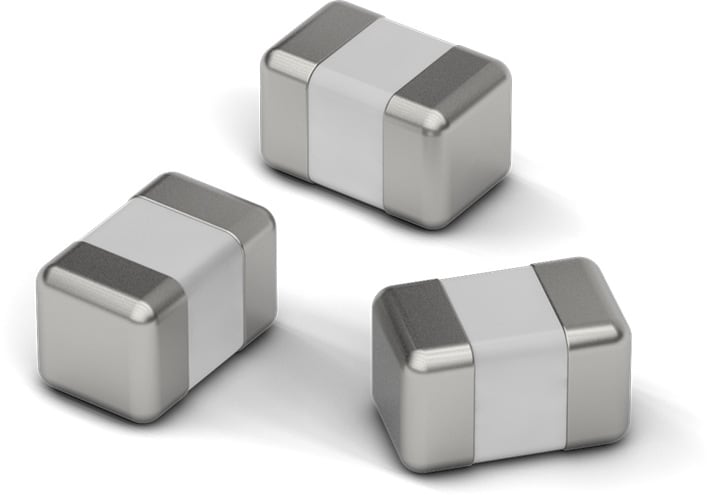

WCAP-CSRF High Frequency

LTSpice files

LT
LTSpice_WCAP-CSRF (rev25a).zip
|
2.6 KB

Characteristics

High frequency product series
Mounting style: SMT-Chip
Ceramic: NP0 (Class I)
Temperature Coefficient: ±30 ppm/°C
Sizes: 0201 / 0402
Termination: Cu/Ni/Sn
Recommended soldering: Reflow soldering

Applications

High frequency applications
Antenna matching

Application Notes

Products

All

0201

0402

Order Code	Datasheet	Simulation	Downloads	Status	C	Tol. C	V_R (V (DC))	Size	Operating Temperature	R_ISO	Ceramic Type	L (mm)	W (mm)	H (mm)	Fl (mm)	Packaging	Design Kit
885392004001	SPEC		9 files EDA models: Components ZIP ALT Altium_WCAP-CSRF (rev24b).IntLib \| 79 KB CDS Cadence_WCAP-CSRF (rev24b).zip \| 60.4 KB EAG Eagle_WCAP-CSRF (rev24a).lbr \| 47.1 KB KIC KiCad_WCAP-CSRF (rev25a).zip \| 22.3 KB ZUK Cadstar_WCAP-CSRF (rev19a).zip \| 5.4 KB CAD files ZIP STP Download_STP_8853x2010000x (rev1).stp \| 22.6 KB RF & Microwave simulation models MDL Modelithics Electric models ZIP PSP Pspice_WCAP-CSRF (rev25a).zip \| 10.5 KB S S-Parameter_WCAP-CSRF (rev25a).zip \| 6.8 MB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.2 pF	±0.05pF	25	0201	-55 °C up to +125 °C	10 GΩ	NP0 Class I	0.6	0.3	0.3	0.15	7" Tape & Reel	–
