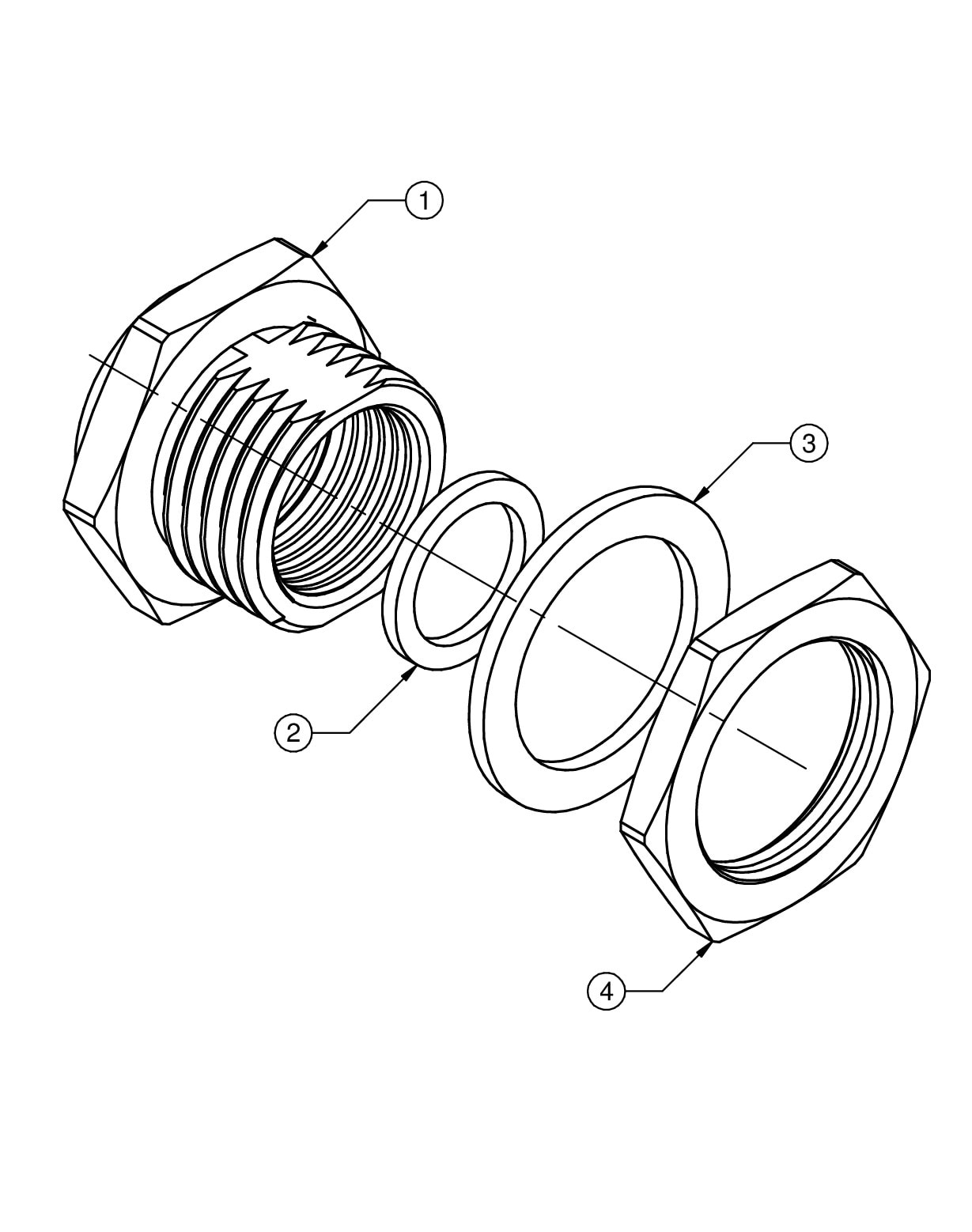

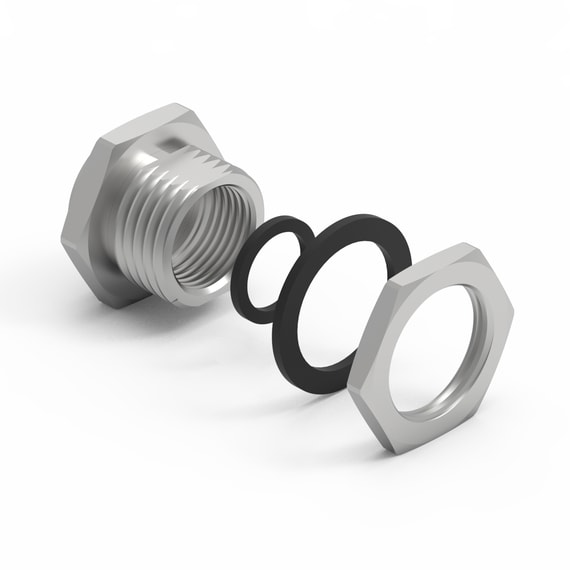

WE-LANMX Assembly

Characteristics

IP67 robust against dust and water
M12 thread
High mechanical stability
Operating temperature: -40 °C up to +85 °C

Applications

Industrial applications e.g. factory automation, robotics, transportation technology, wind power plants
Standards as EtherNet/IP, Profinet, EtherCAT, Ethernet Powerlink

Products

Order Code	Datasheet	Downloads	Status	Base Material	Plating	Mount	Use with	Samples
749699910	SPEC	2 files CAD files ZIP IGS IGS_749699910 (rev1).igs \| 1.6 MB STP STP_749699910 (rev1).stp \| 1001.6 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Brass	Nickel	rear	749600010

Order Code	Datasheet
749699910	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Base Material	Plating	Mount	Use with	Samples

High mechanical robustness with excellent signal integrity

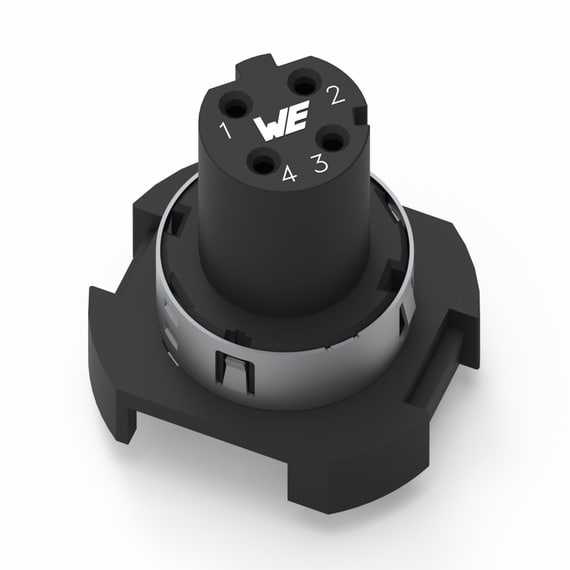

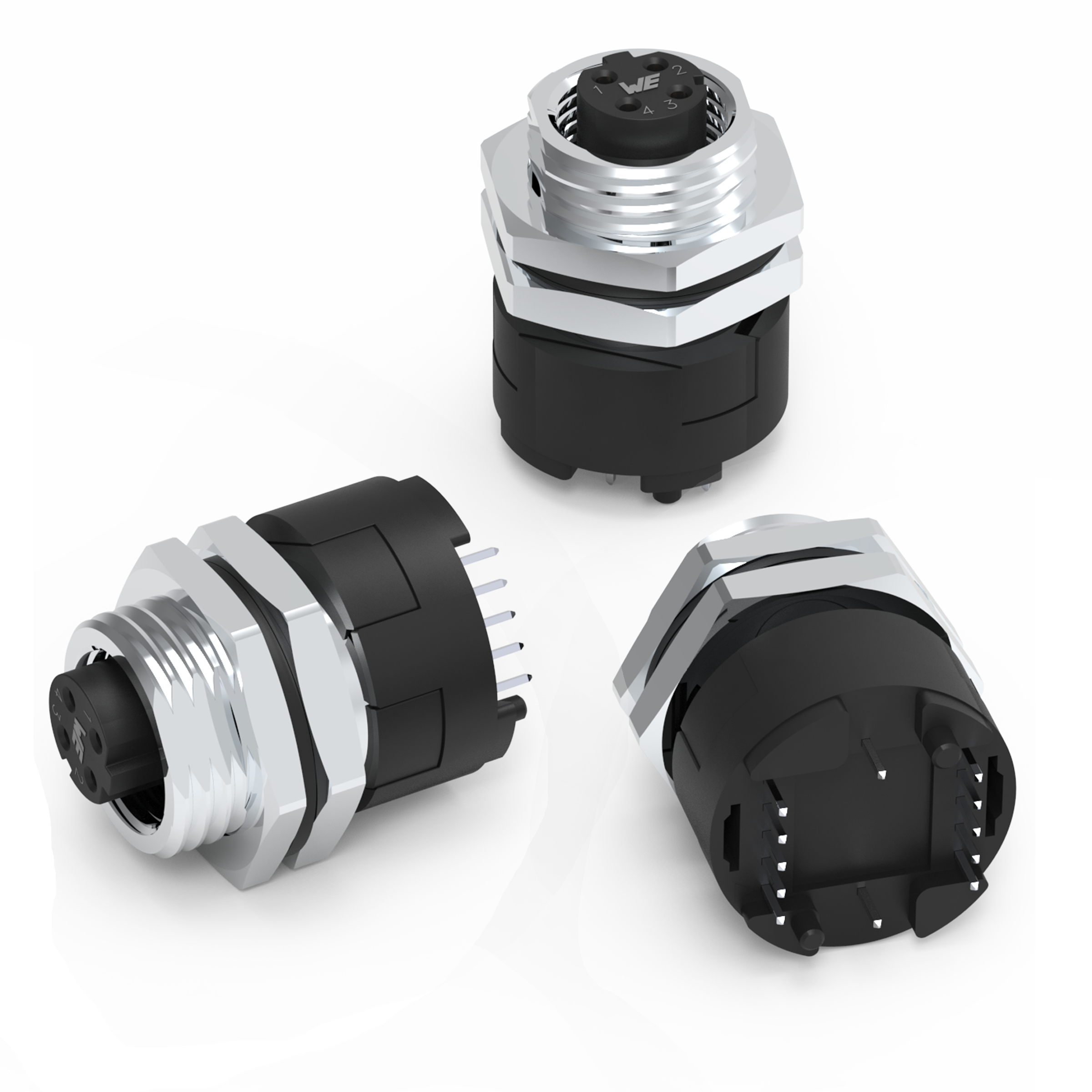

WE-LANMX M12 Connector

With WE-LANMX, Ethernet connections are powerful even in tough environments. The screw-type circular connector sockets defy environmental influences such as vibration, dust and water due to their stable and at the same time space-saving design.

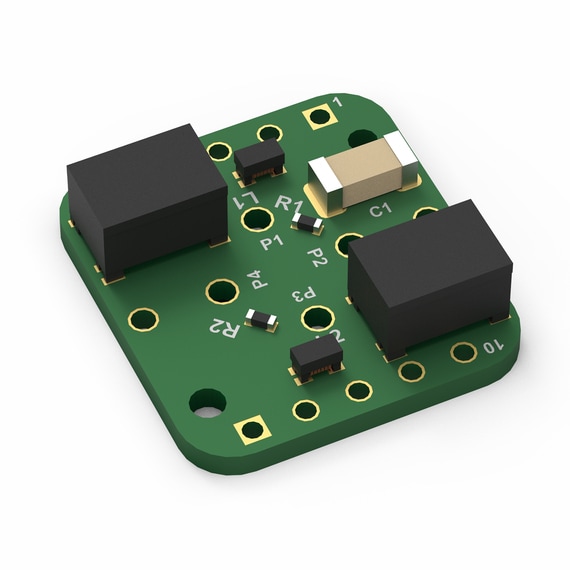

Due to the integrated transformers and common mode chokes, the LAN-MX combines high mechanical robustness with excellent signal integrity in one component.
