WE-LANMX Connector

WE-LANMX M12 connector with integrated transformer and common mode choke

Characteristics

M12 connector with integrated transformer / common mode choke
Slim design
High mechanical stability
Through Hole Reflow (THR) soldering
Compliant with standard IEEE 802.3u
Operating temperature: -40 °C up to +85 °C

Applications

Industrial applications e.g. factory automation, robotics, transportation technology, wind power plants
Standards as EtherNet/IP, Profinet, EtherCAT, Ethernet Powerlink

Application Notes

ANP078 WE-RJ45 LAN for Through-Hole Reflow
PDF

Products

Order Code	Datasheet	Downloads	Status	Data rate	PoE	Orientation Type	Code	Operating Temperature	Use with	Samples

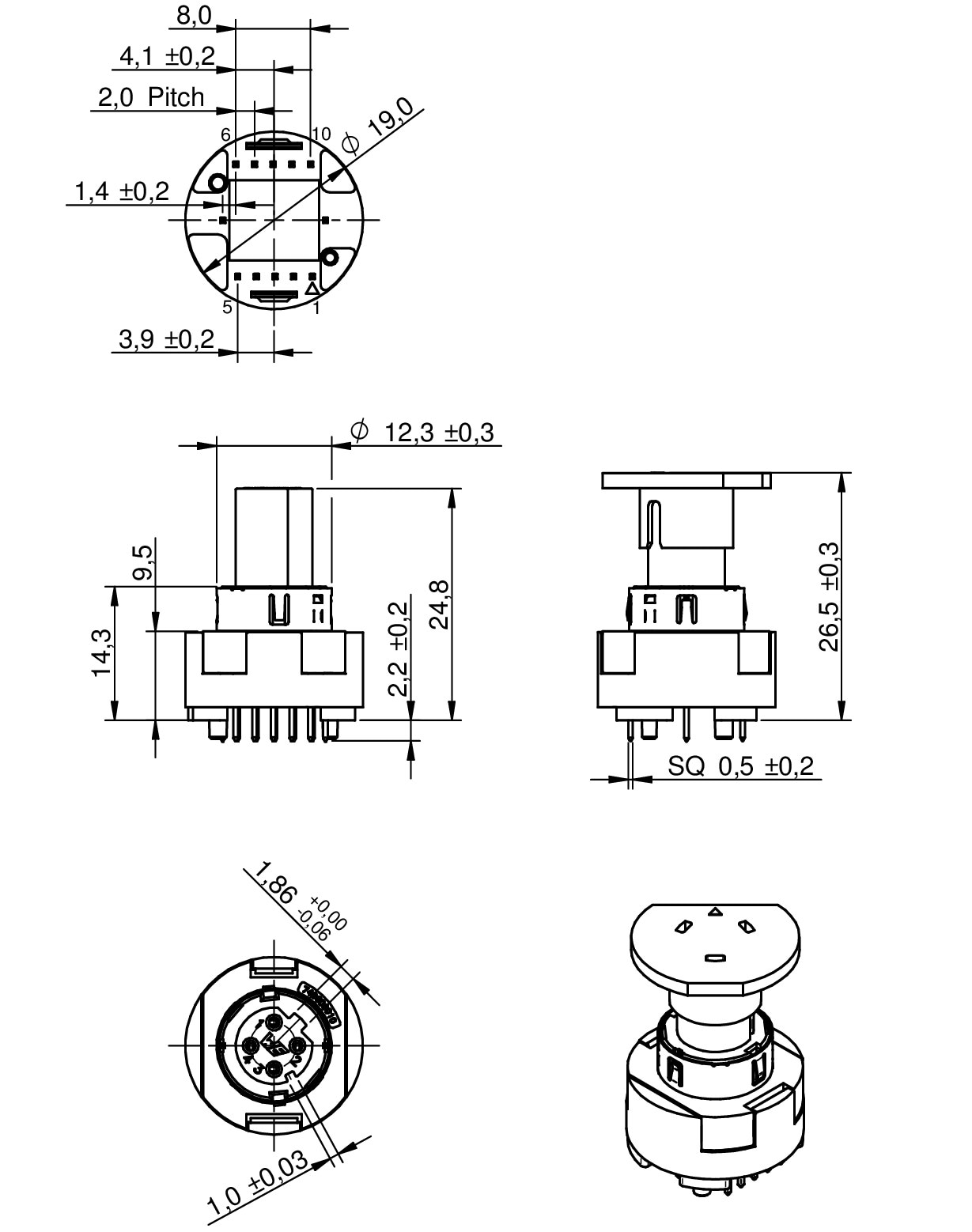

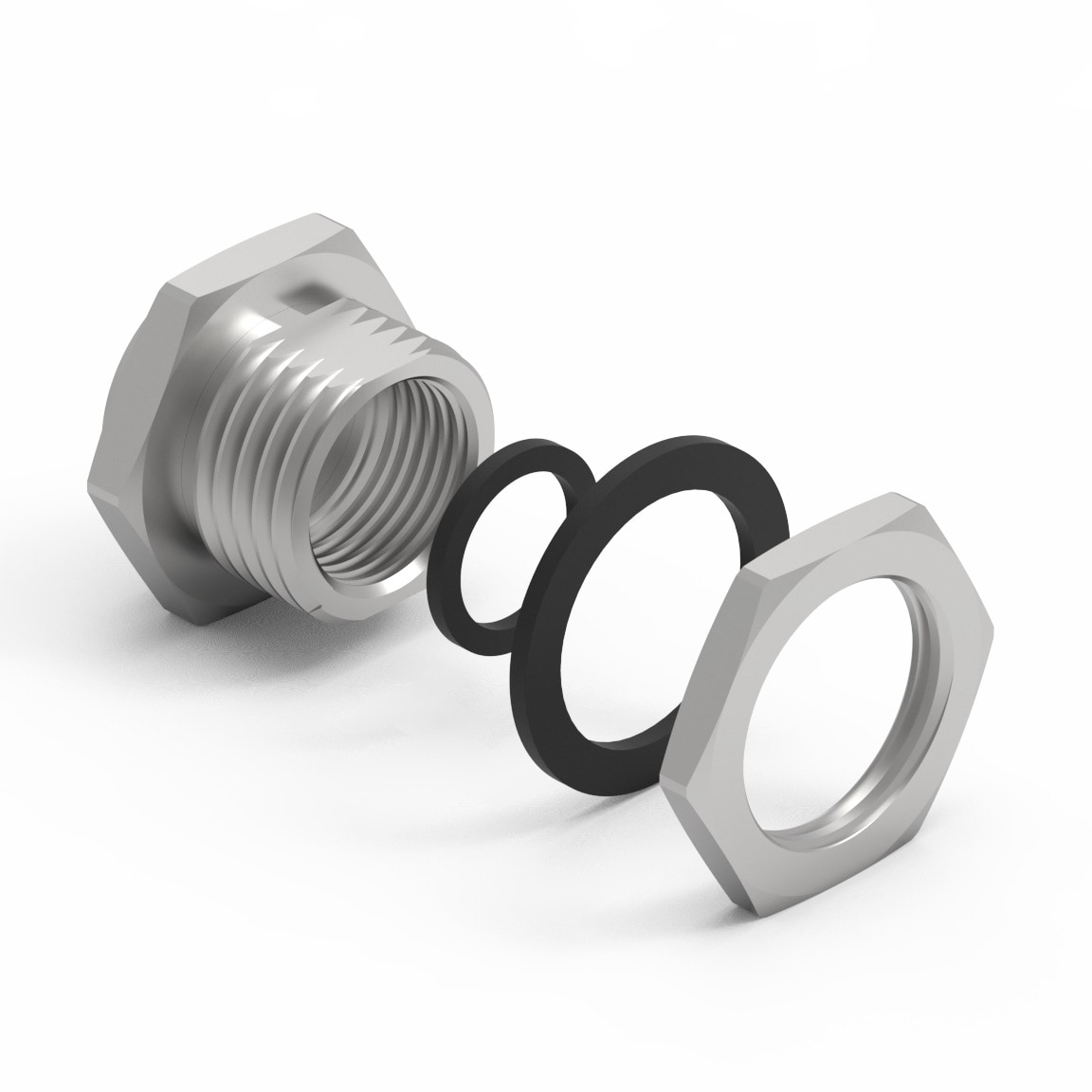

749600010	SPEC	6 files EDA models: Components ZIP ALT Altium_WE-LANMX (rev22a).IntLib \| 658.5 KB ZUK Cadstar_WE-LANMX (rev21a).zip \| 5.3 KB CDS CADENCE_WE-LANMX (rev21b).zip \| 4.3 MB EAG Eagle_WE-LANMX (rev21a).lbr \| 16.1 KB CAD files ZIP IGS IGS_749600010 (rev1).igs \| 17.4 MB STP STP_749600010 (rev1).stp \| 4 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10/100BASE-T	non-PoE	Vertical	D	-40 °C up to +85 °C	749699910

Order Code	Datasheet
749600010	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Data rate	PoE	Orientation Type	Code	Operating Temperature	Use with	Samples

High mechanical robustness with excellent signal integrity

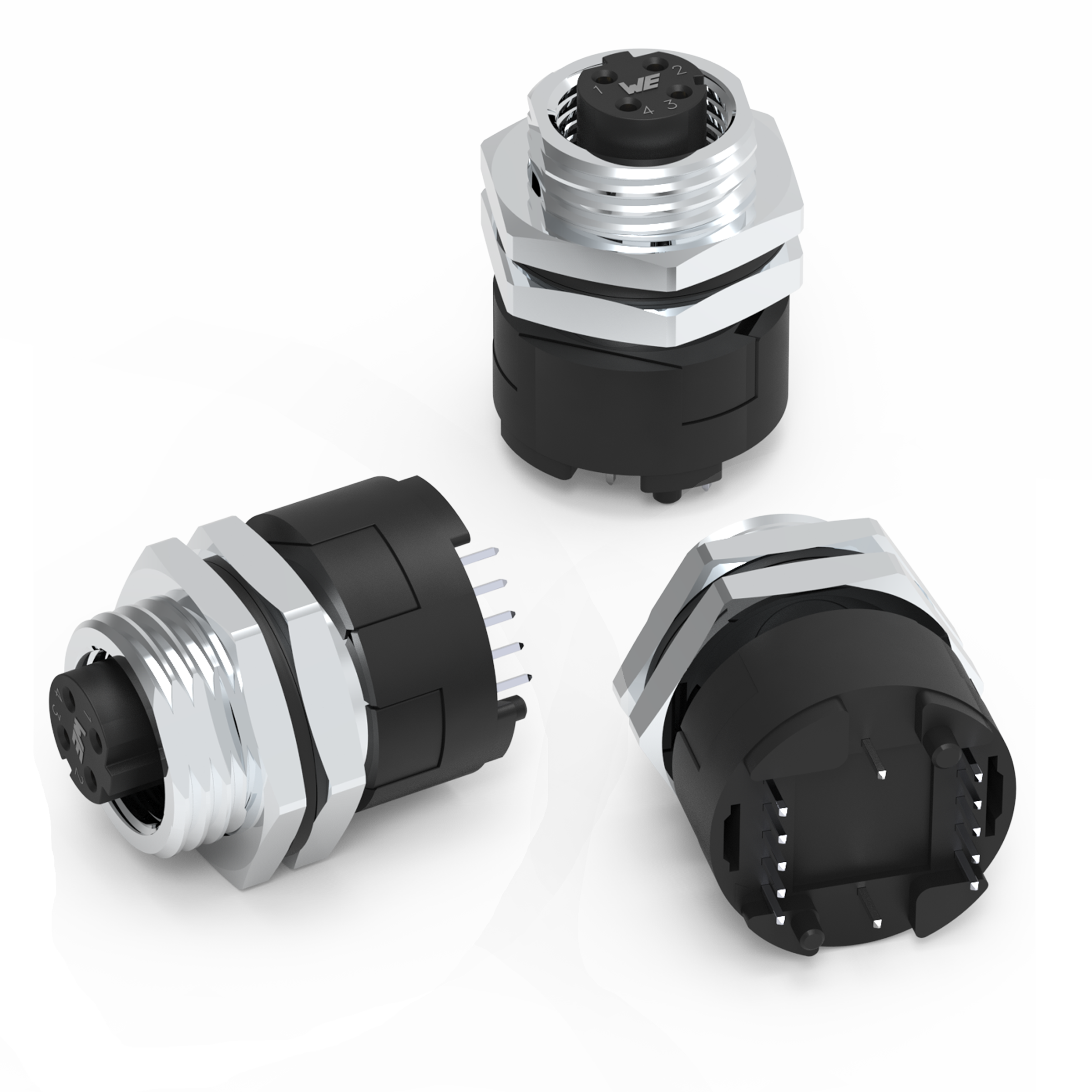

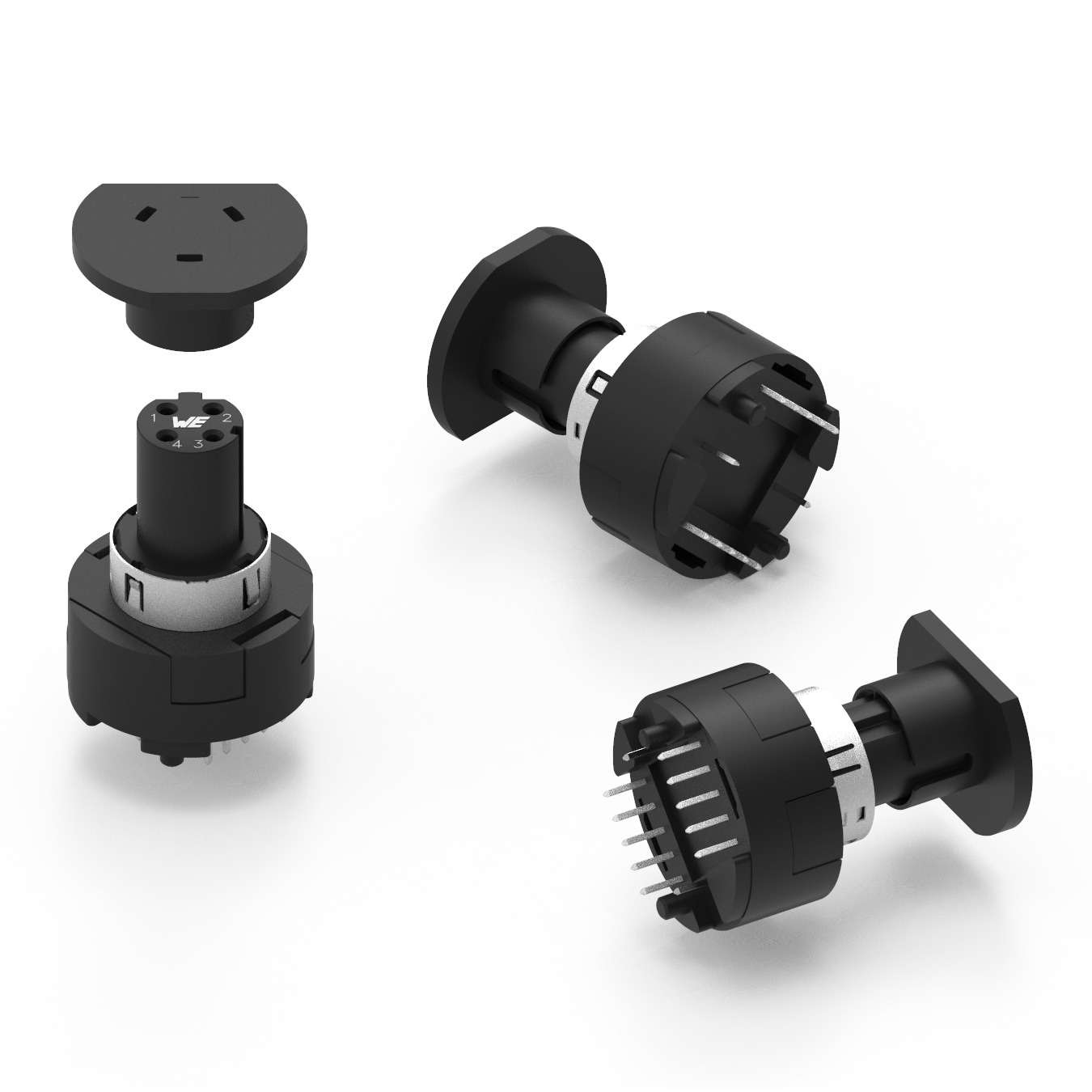

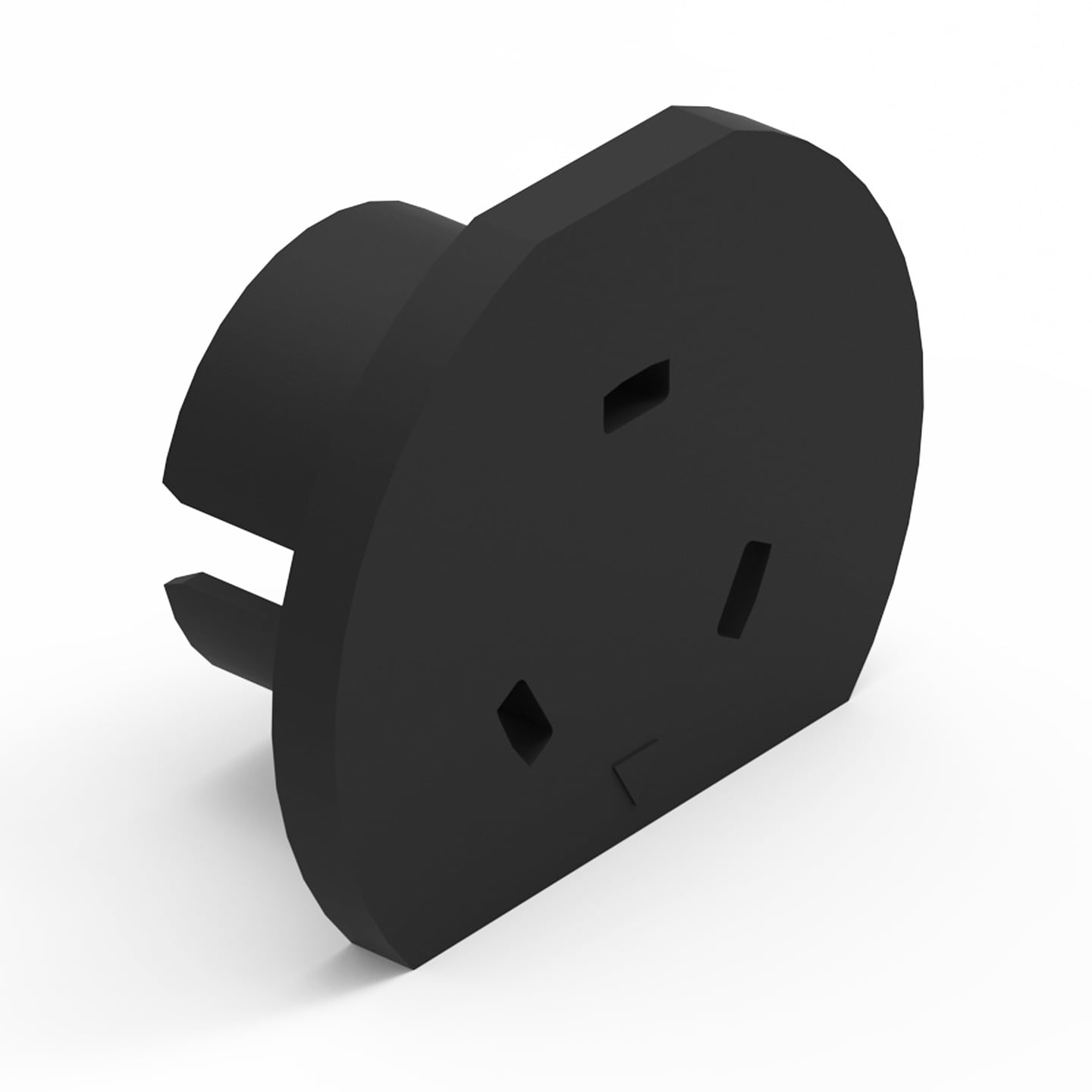

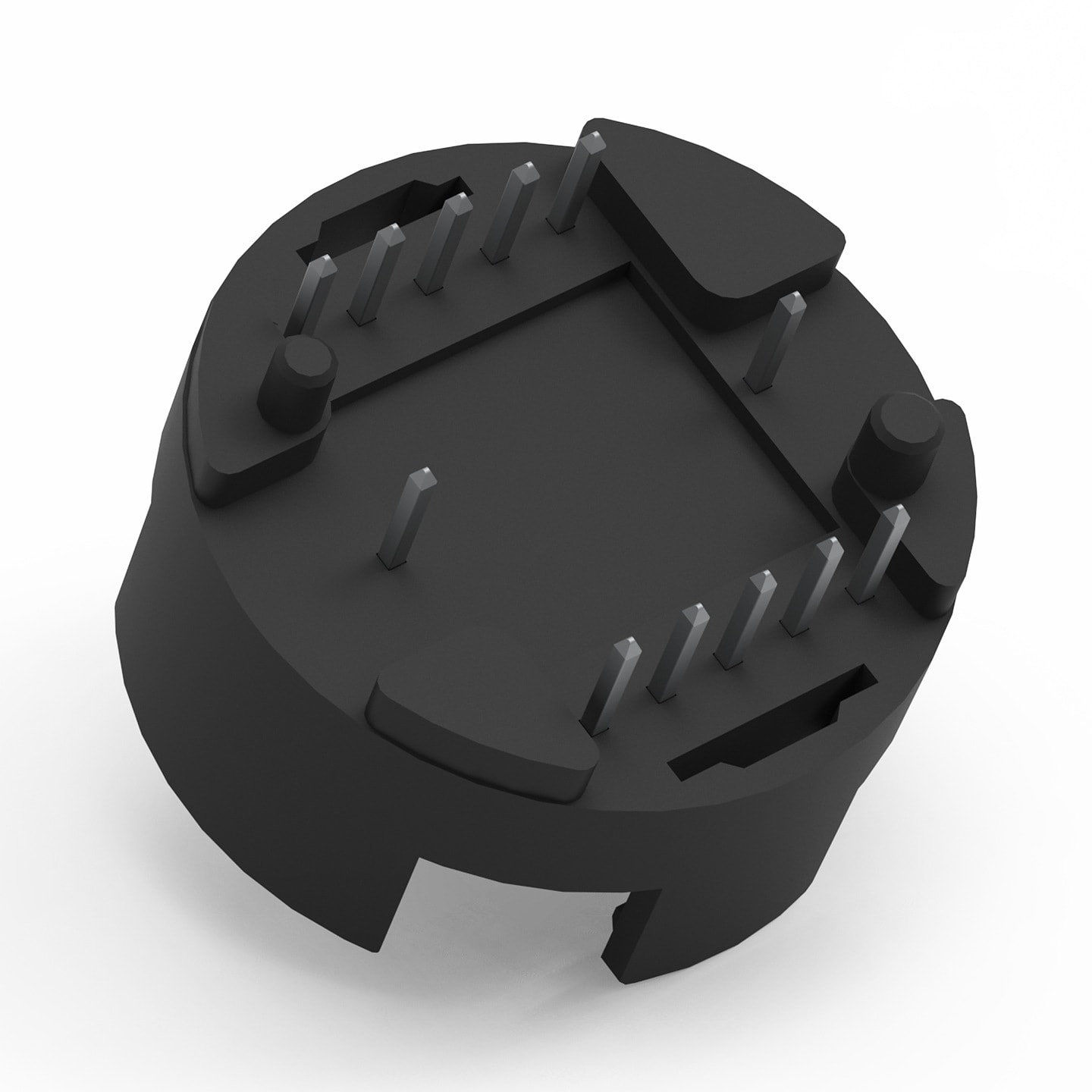

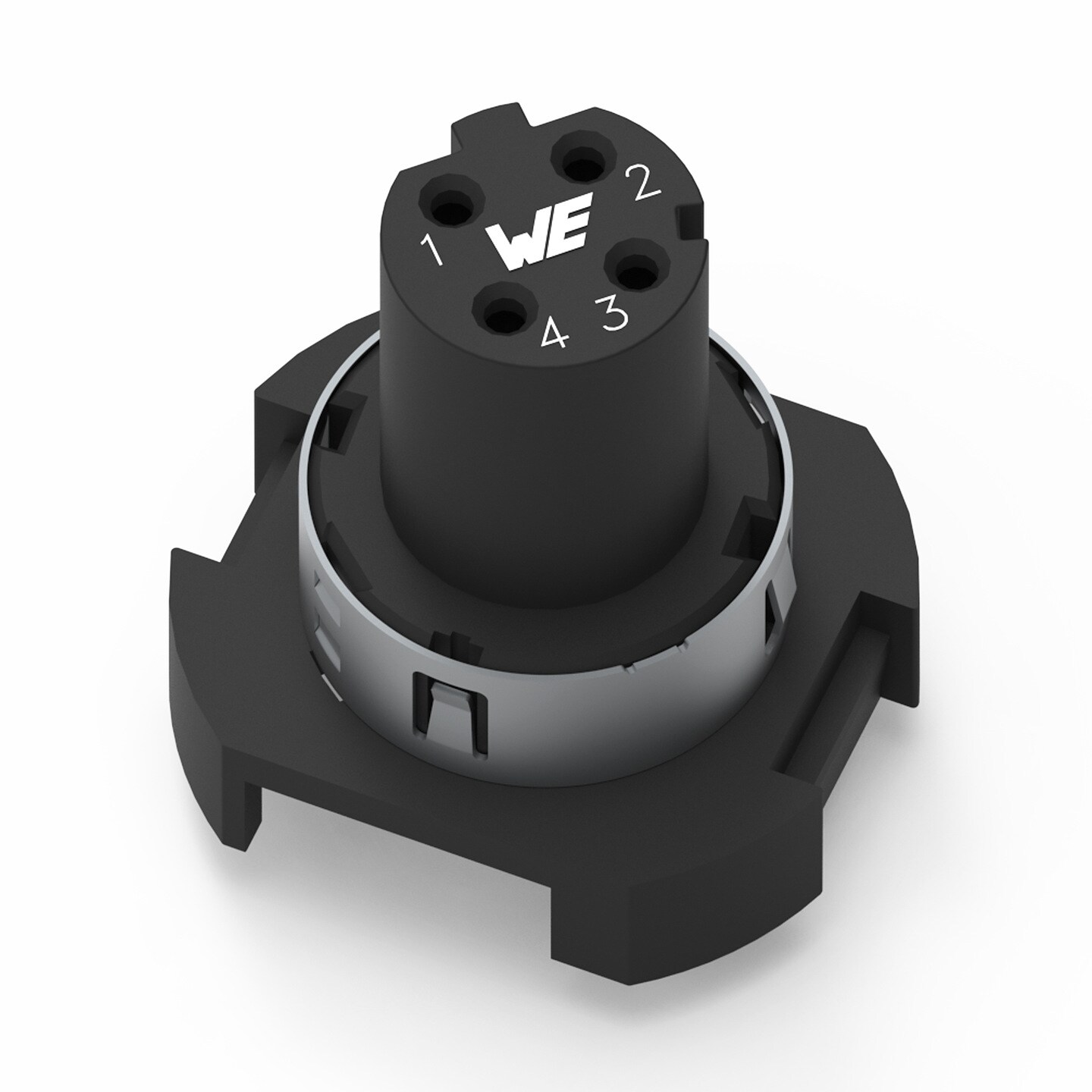

WE-LANMX M12 Connector

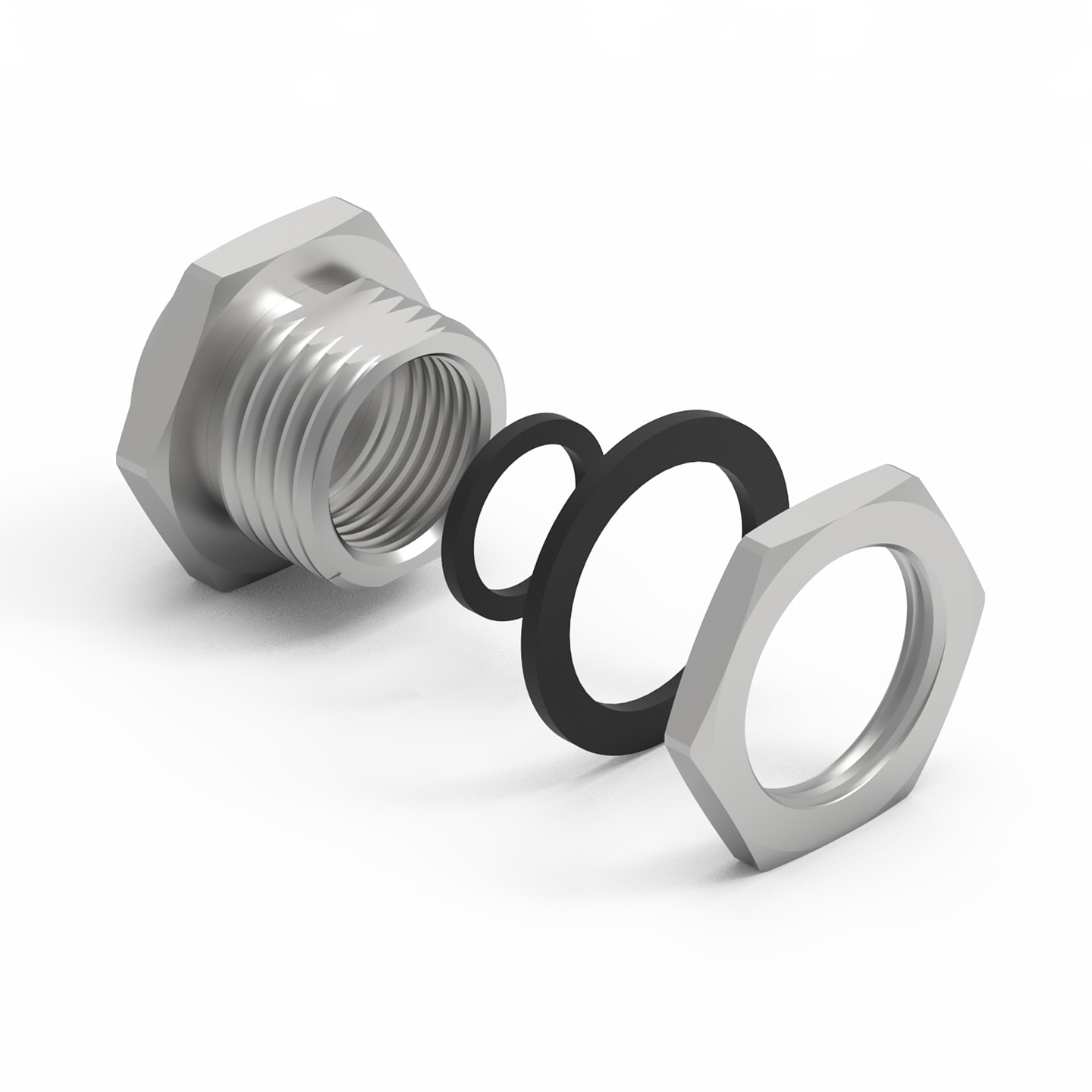

With WE-LANMX, Ethernet connections are powerful even in tough environments. The screw-type circular connector sockets defy environmental influences such as vibration, dust and water due to their stable and at the same time space-saving design.

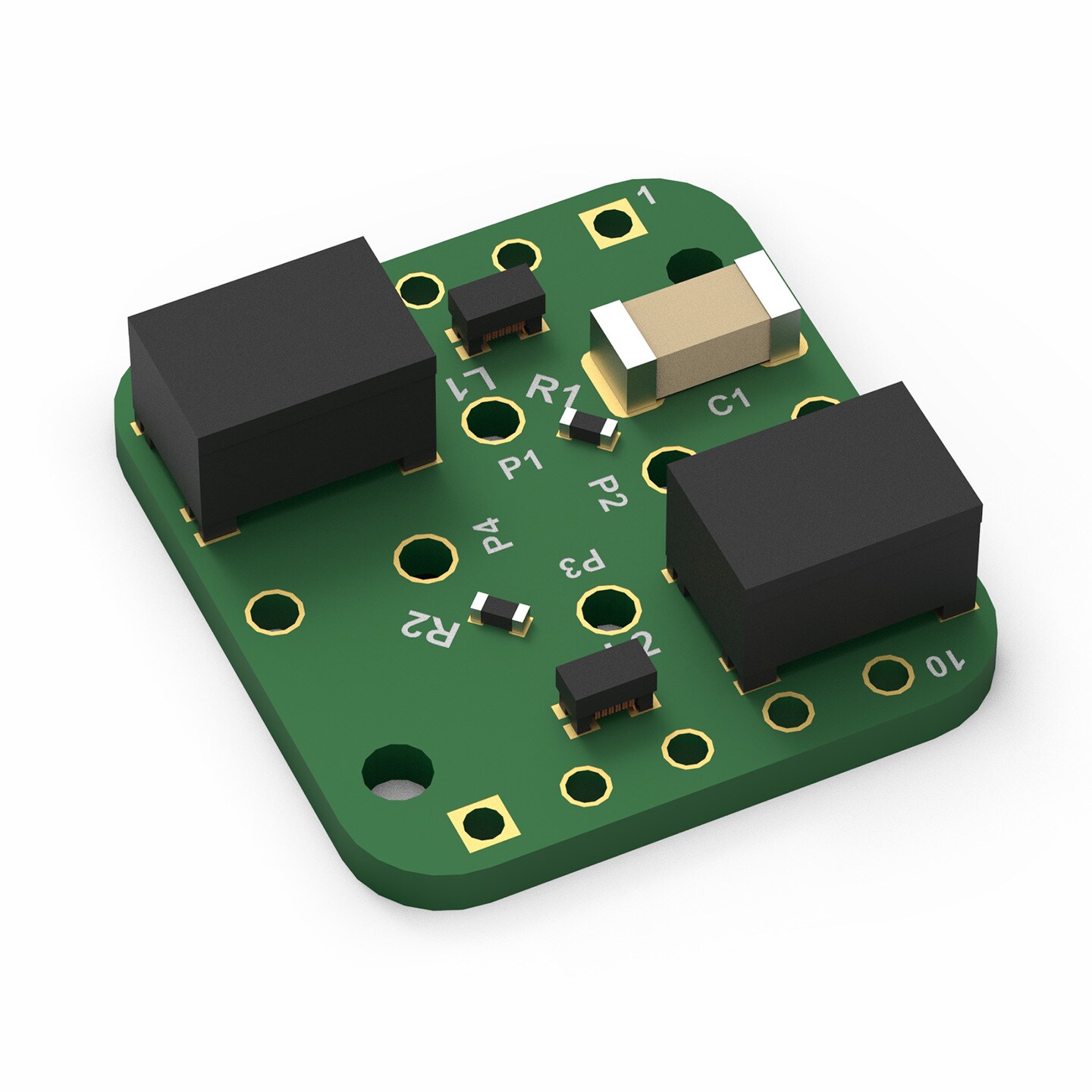

Due to the integrated transformers and common mode chokes, the LAN-MX combines high mechanical robustness with excellent signal integrity in one component.
