| Size | Dimensions | L (mm) | W (mm) | H (mm) | Mount | ||
|---|---|---|---|---|---|---|---|

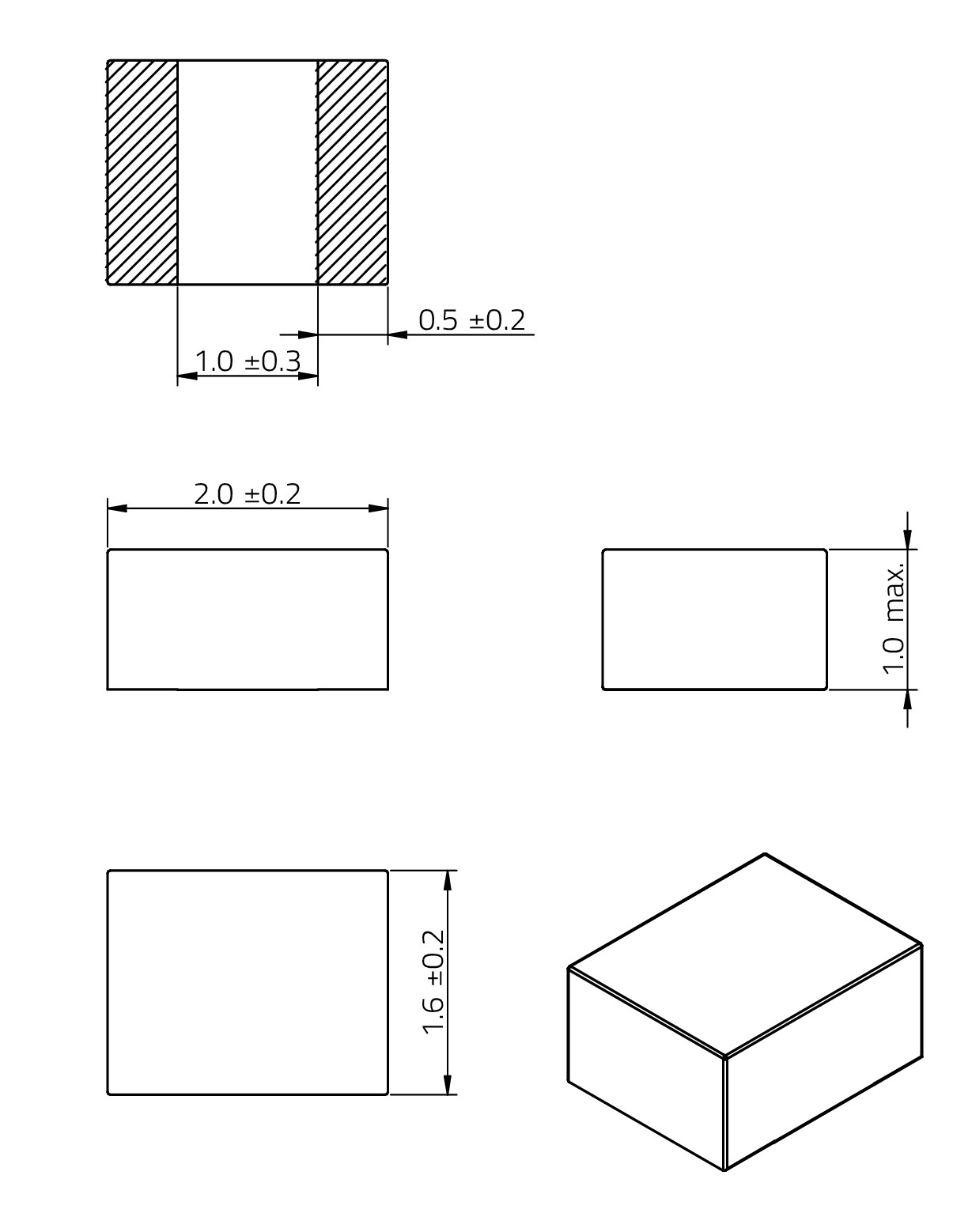

| NEW | 201610 | 2 | 1.6 | 1 | SMD/SMT Soldering | ||

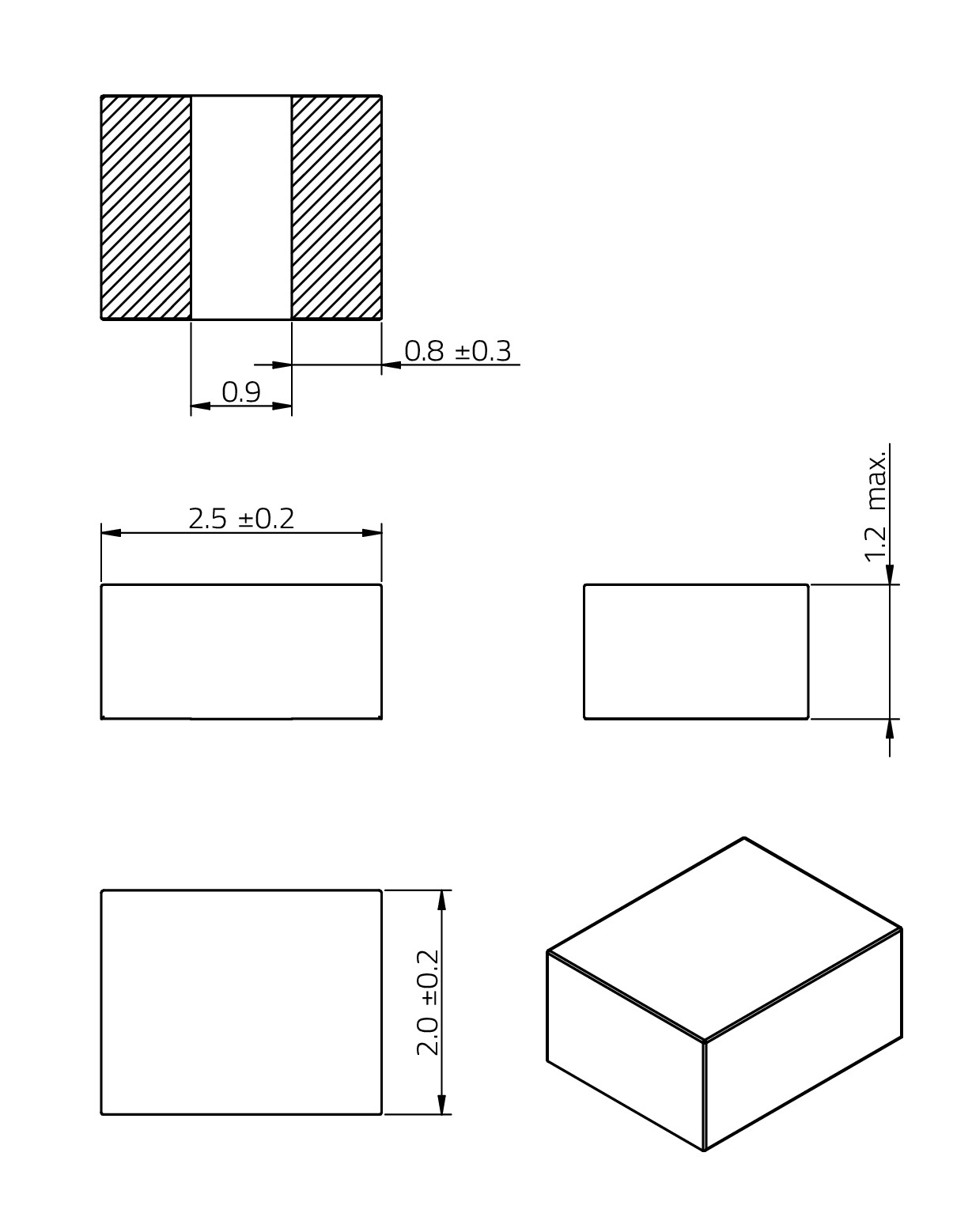

| NEW | 252012 | 2.5 | 2 | 1.2 | SMD/SMT Soldering | ||

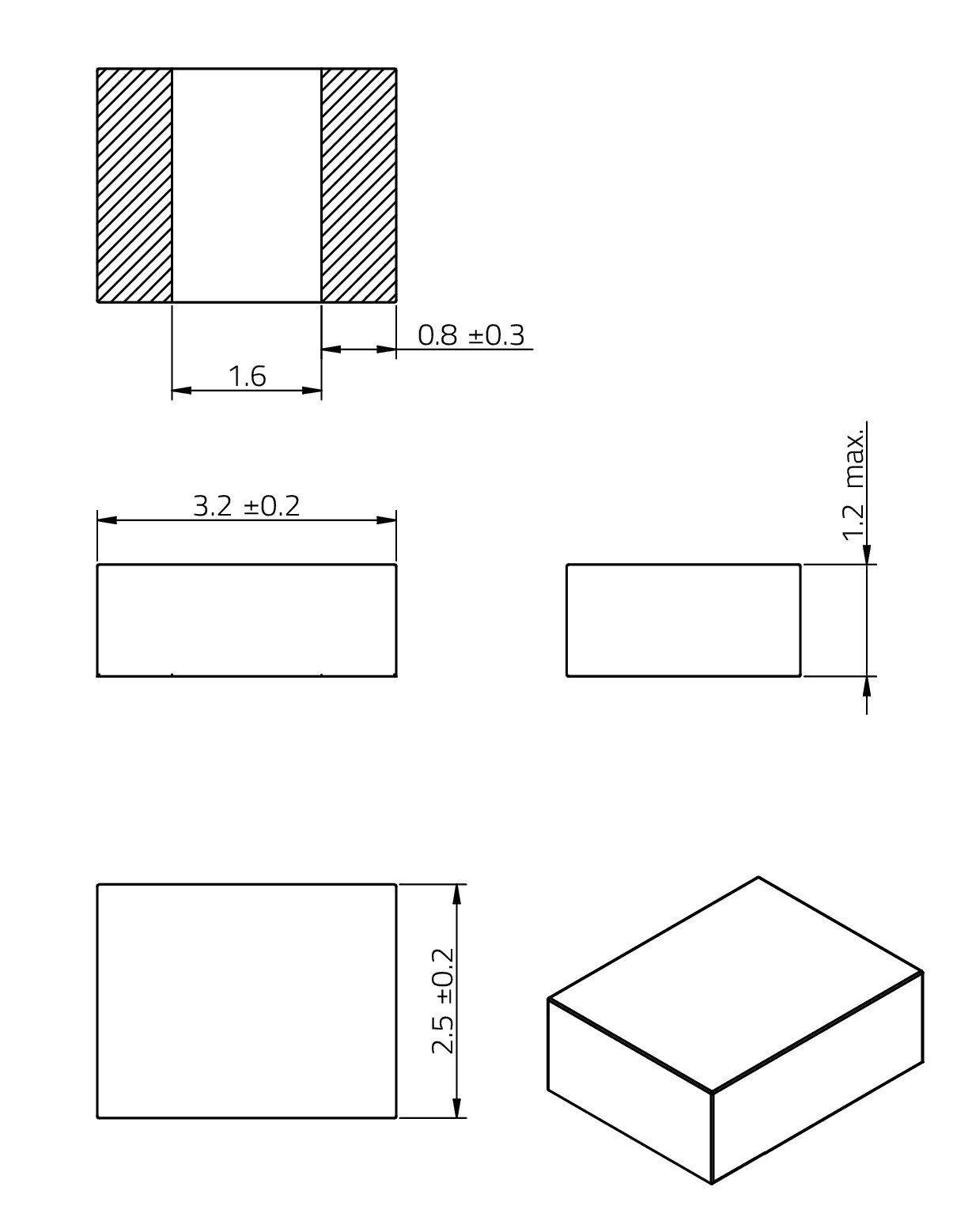

| NEW | 322512 | 3.2 | 2.5 | 1.2 | SMD/SMT Soldering | ||

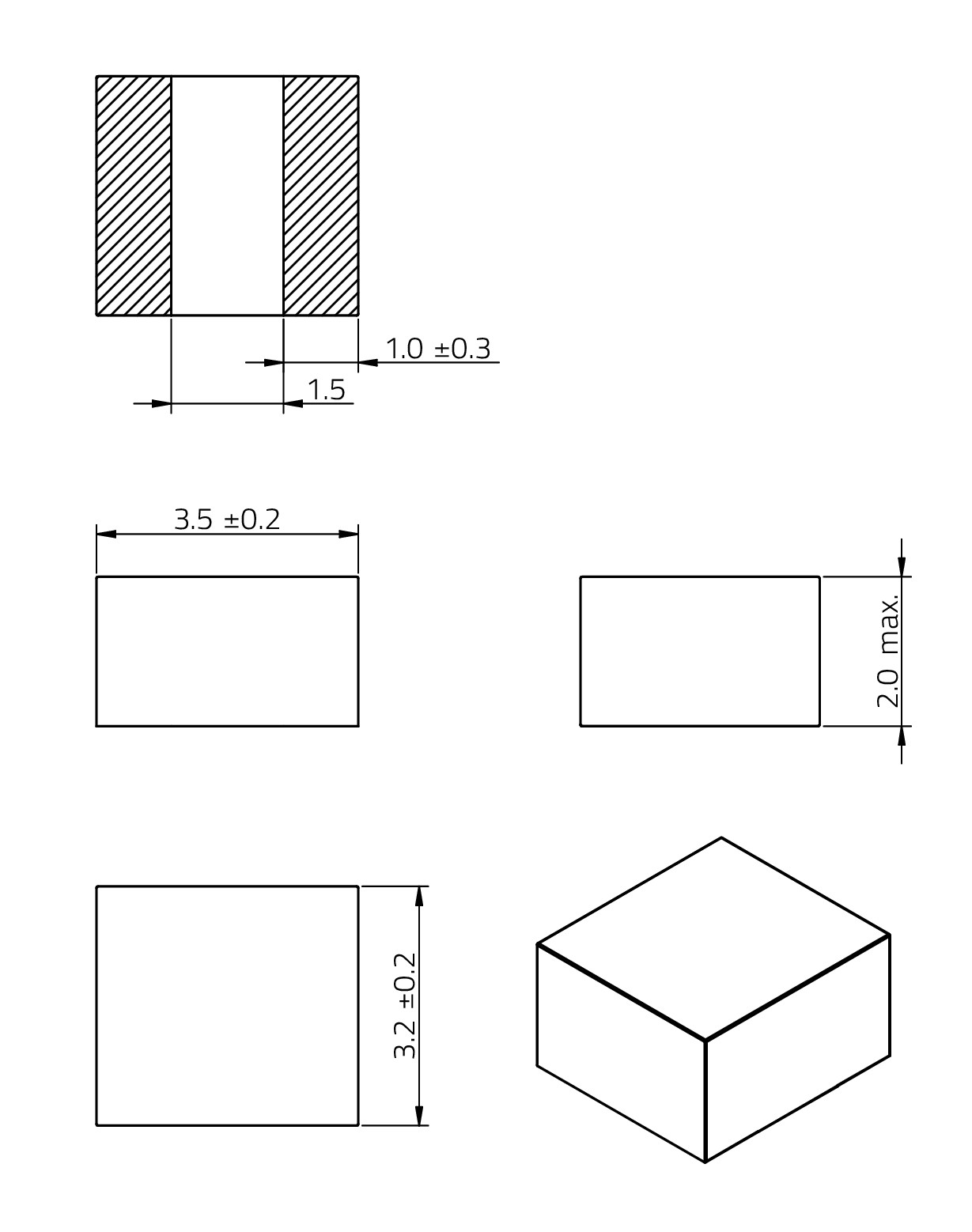

| NEW | 353220 | 3.5 | 3.2 | 2 | SMD/SMT Soldering |
LTSpice files
Characteristics
- Very small profile molded power inductor
- High range of inductance values
- Flat wire technology decreases RDC, starting at 4.8 mΩ
- High rated current values up to 16 A
- Very low total losses lead to a high efficiency
- Operating temperature: -55°C to 150°C
- AEC-Q 200 qualified
Applications
- DC/DC-converters for high currents and high frequencies (> 1 MHz)
- Wearables like smartphones, tablets and cameras
- CPU power supllies (IMX95)
- RAM power supplies (DDR5)
- Devices with low profiles and case sizes
- Battery powered devices
- High frequency devices (GaN and SiC)
Products
All
201610
252012
322512
353220
| Order Code | Datasheet | Simulation | Downloads | Status | L (µH) | IRP,40K (A) | ISAT,30% (A) | RDC typ. (mΩ) | fres (MHz) | VOP (V) | Samples |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 74479335329110 | SPEC | 8 files | New i| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | 0.1 | 16 | 25 | 4.8 | 310 | 48 | ||
| 74479332257110 | SPEC | 8 files | New i| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | 0.1 | 11.4 | 21.5 | 7.4 | 405 | 48 | ||
| 74479320165110 | SPEC | 8 files | New i| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | 0.1 | 10.2 | 13.7 | 7.2 | 325 | 48 | ||
| 74479325207110 | SPEC | 8 files | New i| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | 0.1 | 12.3 | 18.7 | 5.6 | 438 | 48 | ||
| 74479332257147 | SPEC | 8 files | New i| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | 0.47 | 7.9 | 10.6 | 14.2 | 126 | 48 | ||
| 74479320165147 | SPEC | 8 files | New i| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | 0.47 | 6.2 | 7.5 | 18.4 | 100 | 48 | ||
| 74479325207147 | SPEC | 8 files | New i| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | 0.47 | 9.3 | 7.9 | 11.3 | 97 | 48 | ||
| 74479335329147 | SPEC | 8 files | New i| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | 0.47 | 9.9 | 13.2 | 12.7 | 92 | 48 | ||
| 74479332257210 | SPEC | 8 files | New i| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | 1 | 5.8 | 9.15 | 23.3 | 67 | 48 | ||
| 74479325207210 | SPEC | 8 files | New i| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | 1 | 6.1 | 6.1 | 23.8 | 58 | 48 | ||
| 74479335329210 | SPEC | 8 files | New i| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | 1 | 7.3 | 10.8 | 18.4 | 56 | 48 | ||
| 74479320165210 | SPEC | 8 files | New i| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | 1 | 4.7 | 5.25 | 31.7 | 67 | 48 | ||
| 74479332257222 | SPEC | 8 files | New i| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | 2.2 | 4.1 | 5.4 | 49.6 | 44 | 48 | ||
| 74479320165222 | SPEC | 8 files | New i| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | 2.2 | 2.75 | 3.9 | 81.9 | 51 | 48 | ||
| 74479325207222 | SPEC | 8 files | New i| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | 2.2 | 4 | 4.5 | 50.1 | 39 | 48 | ||
| 74479335329222 | SPEC | 8 files | New i| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | 2.2 | 5.8 | 7.8 | 31.6 | 31 | 48 | ||
| 74479332257247 | SPEC | 8 files | New i| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | 4.7 | 2.7 | 4 | 107 | 25 | 48 | ||
| 74479320165247 | SPEC | 8 files | New i| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | 4.7 | 2.1 | 2 | 195 | 30 | 48 | ||
| 74479325207247 | SPEC | 8 files | New i| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | 4.7 | 2.75 | 2.7 | 114 | 25 | 48 | ||
| 74479335329247 | SPEC | 8 files | New i| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | 4.7 | 3.85 | 5.6 | 63.2 | 21 | 48 |
| Order Code | Datasheet | Simulation |
|---|---|---|
| 74479335329110 | SPEC | |
| 74479332257110 | SPEC | |
| 74479320165110 | SPEC | |
| 74479325207110 | SPEC | |
| 74479332257147 | SPEC | |
| 74479320165147 | SPEC | |
| 74479325207147 | SPEC | |
| 74479335329147 | SPEC | |
| 74479332257210 | SPEC | |
| 74479325207210 | SPEC | |
| 74479335329210 | SPEC | |
| 74479320165210 | SPEC | |
| 74479332257222 | SPEC | |
| 74479320165222 | SPEC | |
| 74479325207222 | SPEC | |
| 74479335329222 | SPEC | |
| 74479332257247 | SPEC | |
| 74479320165247 | SPEC | |
| 74479325207247 | SPEC | |
| 74479335329247 | SPEC |
| Samples |
|---|
| Order Code | Datasheet | Simulation | Downloads | Status | L (µH) | IRP,40K (A) | ISAT,30% (A) | RDC typ. (mΩ) | fres (MHz) | VOP (V) | Samples |
|---|
Flat Wire Inductor
Developed with a view to efficiency
Electronic devices are becoming ever more powerful and smaller at the same time. It is therefore crucial to rely on components that offer maximum efficiency and load capacity in a compact design.
The WE-PMFI is the perfect choice here. With a very low DC resistance from 4.8 mΩ and a high current carrying capacity of up to 25 A saturation current, it delivers outstanding performance with minimal losses. Their compact design and high temperature resistance make them ideal for powerful and space-saving applications.
Small Size, Great Performance!
Due to an innovative windingstructure, small RDC values can be achieved.

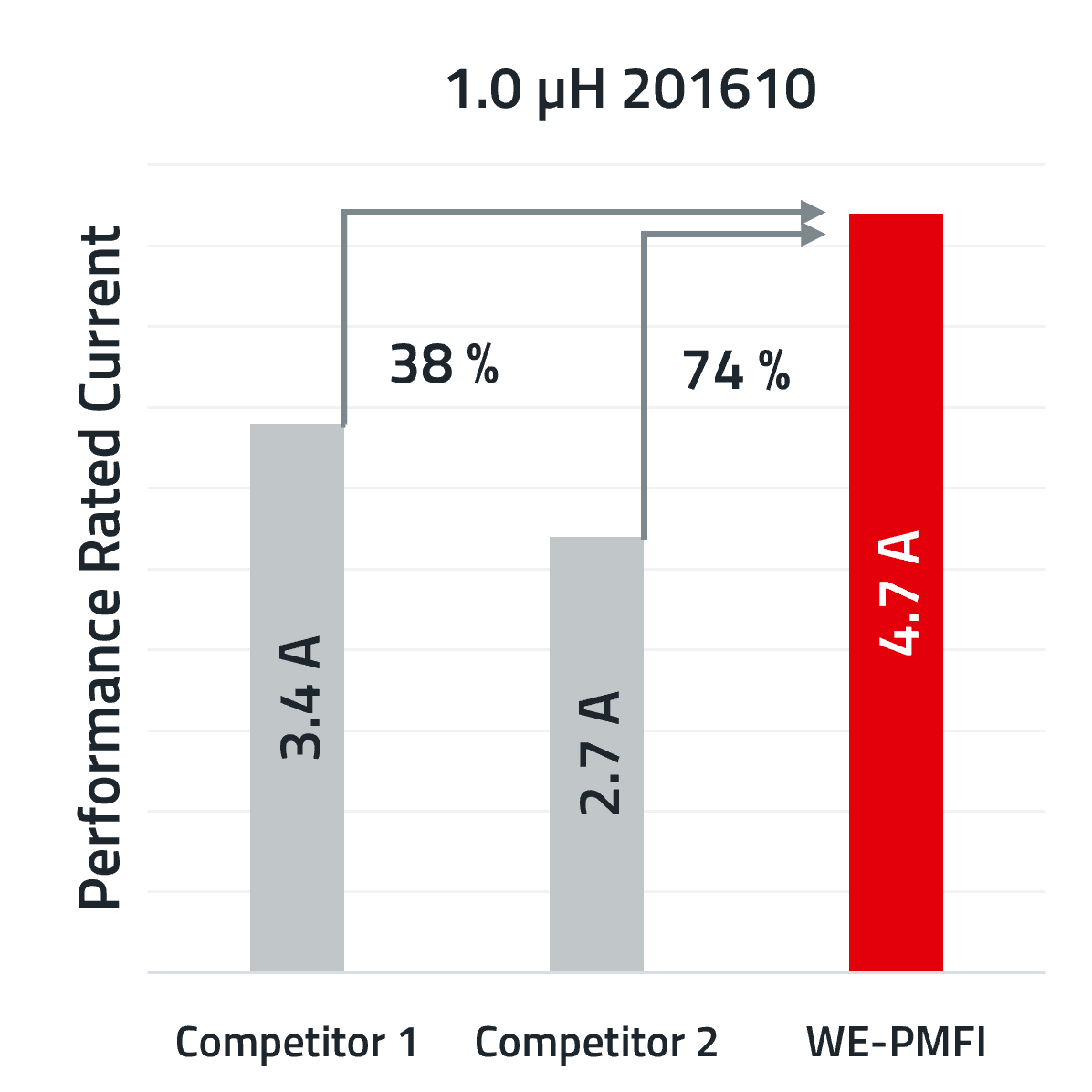

The low RDC value results in a higher current carrying capacity of the wire, which can significantly increase the rated current value.
Special core material shows a excellent saturation behavior.
Compact. Efficient. Durable.
High Efficiency
- The WE-PMFI offers high efficiency despite its compact design
- Low copper and core losses increase the efficiency of the application
High Temperature resistance
- The WE-PMFI has been qualified with a temperature range of -55 to +150 °C
- In combination with the low self-heating, it is suitable for use in any environment
Unique structure
- The properties are made possible by the winding technology
- The integrated T-core supports the magnetic properties.
