WL-TIRW THT Infrared Round Waterclear

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount

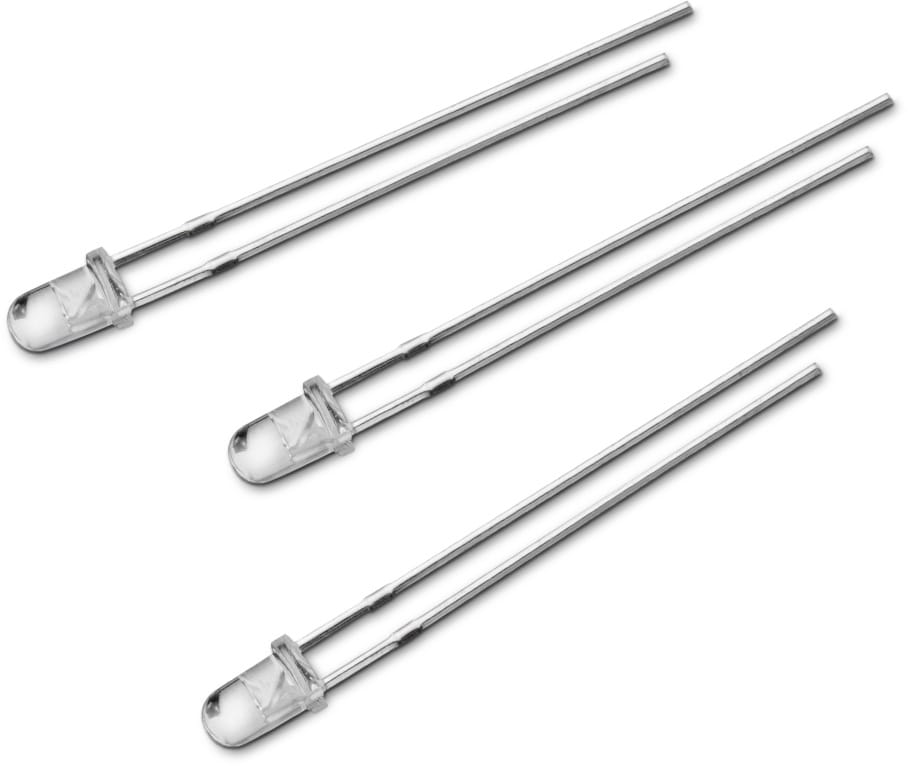

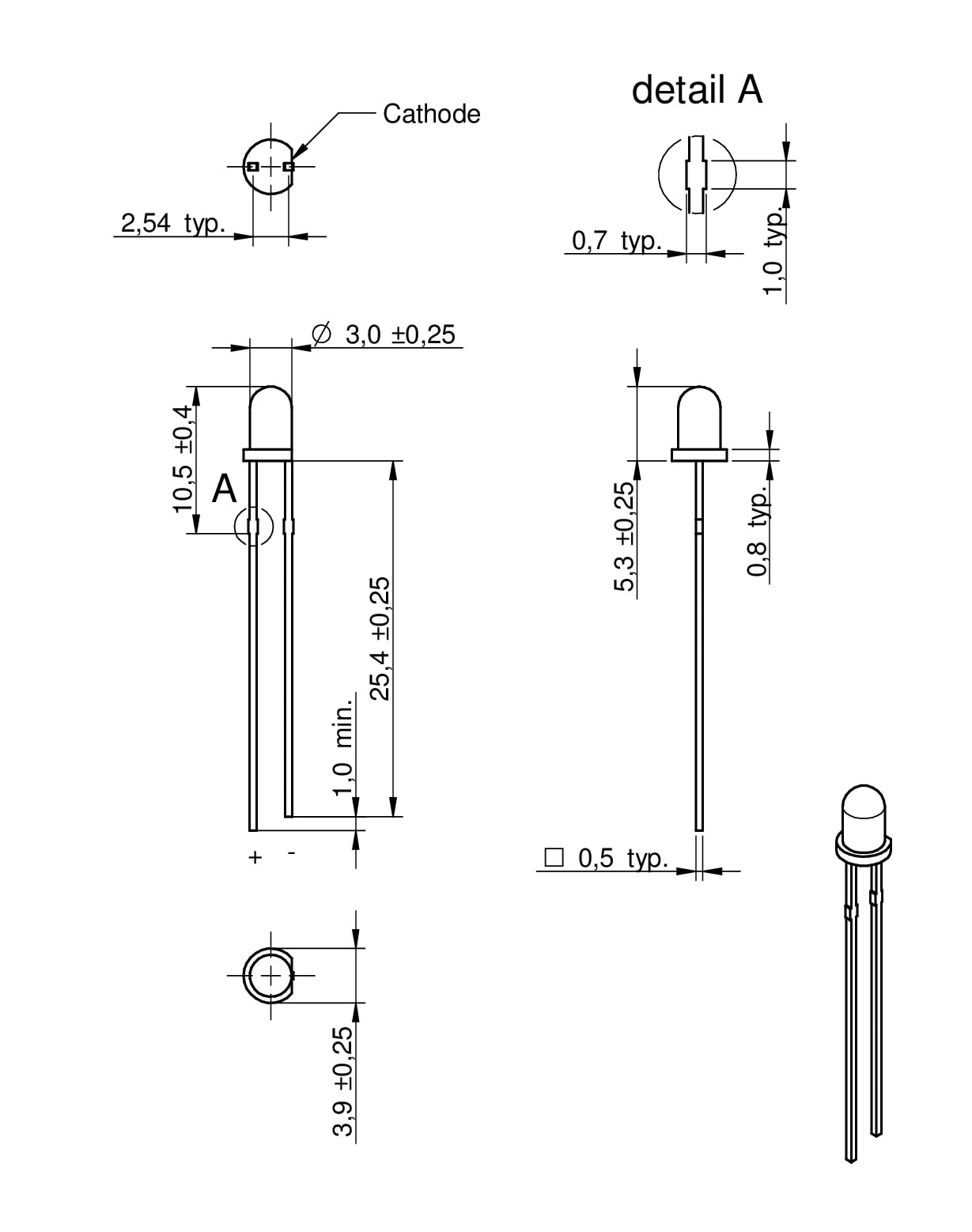

3 mm - without stopper		3	3	5.3	THT

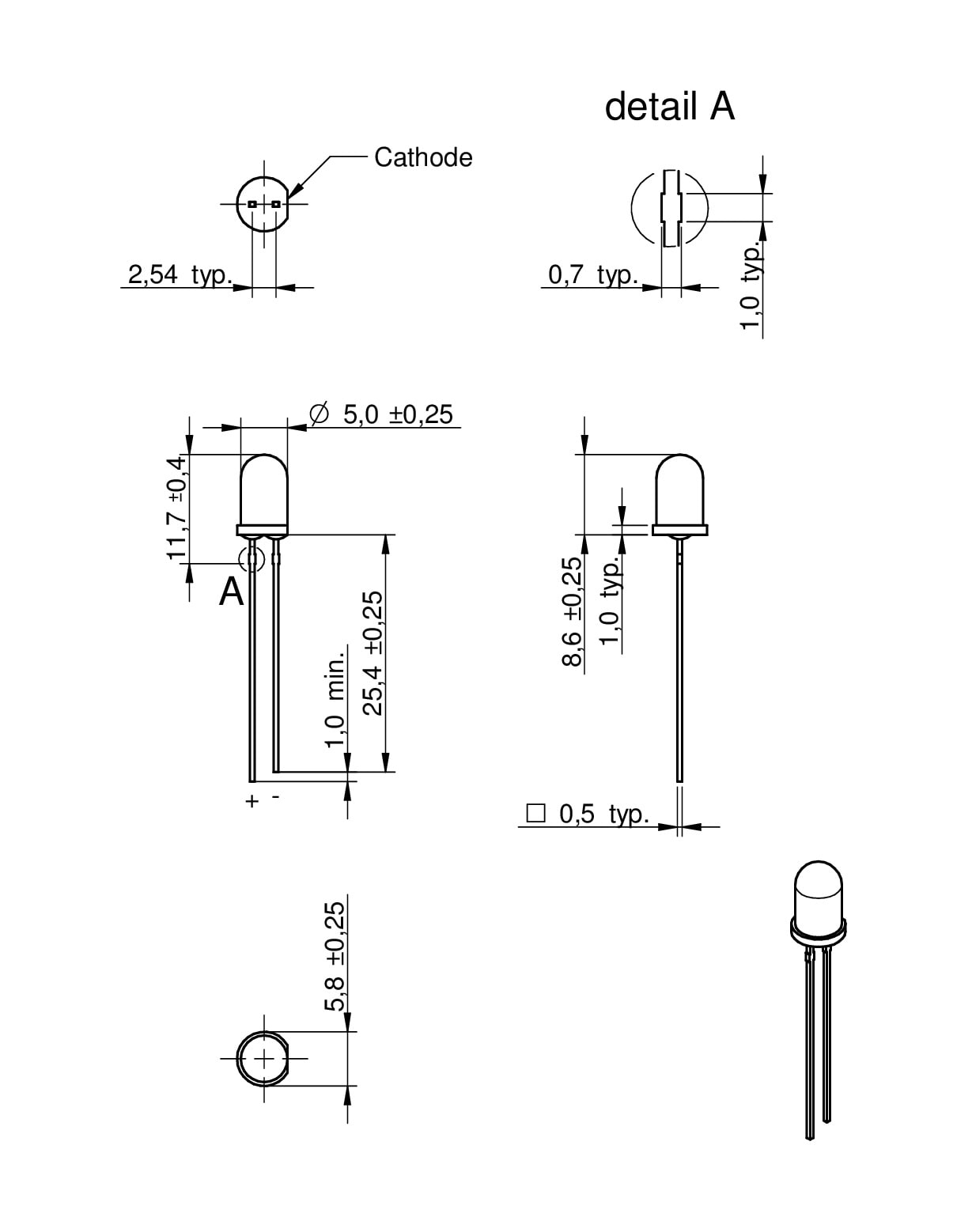

5 mm - without stopper		5.8	5	8.6	THT

LTSpice files

LT
LTSpice_WL-TIRW (rev22a).zip
|
1.9 KB

Characteristics

Infrared Emitter
Very High Radiant Intensity
standard size 3mm and 5mm
Fast switching

Applications

Sensor Technology
Distance measurement
Remote control
Smoke detectors
Data Transmission

Products

All

3 mm - without stopper

5 mm - without stopper

Order Code	Datasheet	Simulation	Downloads	Status	λ_{Peak typ.} (nm)	λ_{Centroid max.}	I_{e typ.} (mW/sr)	V_{F typ.} (V)	2θ_{50% typ.} (°)	Chip Technology	Design Kit	Samples
15400585A3590	SPEC		7 files EDA models: Components ZIP ALT Altium_WL-TIRW (rev22c).IntLib \| 47 KB CDS Cadence_WL-TIRW (rev19a).zip \| 168.5 KB EAG Eagle_WL-TIRW (rev21a).lbr \| 18.6 KB CAD files ZIP IGS Download_IGS_WL-TIRW-5mm (rev1).igs \| 233.3 KB STP Download_STP_WL-TIRW-5mm (rev1).stp \| 74.2 KB Electric models ZIP PSP PSpice_WL-TIRW (rev22a).zip \| 3.2 KB Certificates ZIP CER IR_LED_certificate_WL-TIRW-5mm_1540585A3590 (rev1).pdf \| 1.2 MB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	850	845.0	85	1.5	35	AlGaAs	154150
15400385A3590	SPEC		7 files EDA models: Components ZIP ALT Altium_WL-TIRW (rev22c).IntLib \| 47 KB CDS Cadence_WL-TIRW (rev19a).zip \| 168.5 KB EAG Eagle_WL-TIRW (rev21a).lbr \| 18.6 KB CAD files ZIP IGS Download_IGS_WL-TIRW-3mm (rev1).igs \| 197.1 KB STP Download_STP_WL-TIRW-3mm (rev1).stp \| 72.7 KB Electric models ZIP PSP PSpice_WL-TIRW (rev22a).zip \| 3.2 KB Certificates ZIP CER IR_LED_certificate_WL-TIRW-3mm_15400385A3590 (rev1).pdf \| 1.2 MB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	850	845.0	60	1.5	35	AlGaAs	154150
15400594A3590	SPEC		7 files EDA models: Components ZIP ALT Altium_WL-TIRW (rev22c).IntLib \| 47 KB CDS Cadence_WL-TIRW (rev19a).zip \| 168.5 KB EAG Eagle_WL-TIRW (rev21a).lbr \| 18.6 KB CAD files ZIP IGS Download_IGS_WL-TIRW-5mm (rev1).igs \| 233.3 KB STP Download_STP_WL-TIRW-5mm (rev1).stp \| 74.2 KB Electric models ZIP PSP PSpice_WL-TIRW (rev22a).zip \| 3.2 KB Certificates ZIP CER IR_LED_certificate_WL-TIRW-5mm_15400594A3590 (rev1).pdf \| 1.2 MB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	940	940.0	75	1.3	35	AlGaAs	154150
15400394A3590	SPEC		7 files EDA models: Components ZIP ALT Altium_WL-TIRW (rev22c).IntLib \| 47 KB CDS Cadence_WL-TIRW (rev19a).zip \| 168.5 KB EAG Eagle_WL-TIRW (rev21a).lbr \| 18.6 KB CAD files ZIP IGS Download_IGS_WL-TIRW-3mm (rev1).igs \| 197.1 KB STP Download_STP_WL-TIRW-3mm (rev1).stp \| 72.7 KB Electric models ZIP PSP PSpice_WL-TIRW (rev22a).zip \| 3.2 KB Certificates ZIP CER IR_LED_certificate_WL-TIRW-3mm (rev1).pdf \| 1.2 MB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	940	940.0	30	1.3	35	AlGaAs	154150

Order Code	Datasheet	Simulation
15400585A3590	SPEC
15400385A3590	SPEC
15400594A3590	SPEC
15400394A3590	SPEC

Samples

Order Code	Datasheet	Simulation	Downloads	Status	λ_{Peak typ.} (nm)	λ_{Centroid max.}	I_{e typ.} (mW/sr)	V_{F typ.} (V)	2θ_{50% typ.} (°)	Chip Technology	Design Kit	Samples

Suitable for

WL-TDRW THT Photodiode Round Waterclear

WL-TDRB THT Photodiode Round Black

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Infrared LEDs & Photodetectors

Videos

Würth Elektronik Webinar: Infrared revealed – from data transfer to biometrics

Videos

#askLorandt explains: Switching Times of Infrared LEDs

Videos

#InfraredDreamteam from Würth Elektronik eiSos
