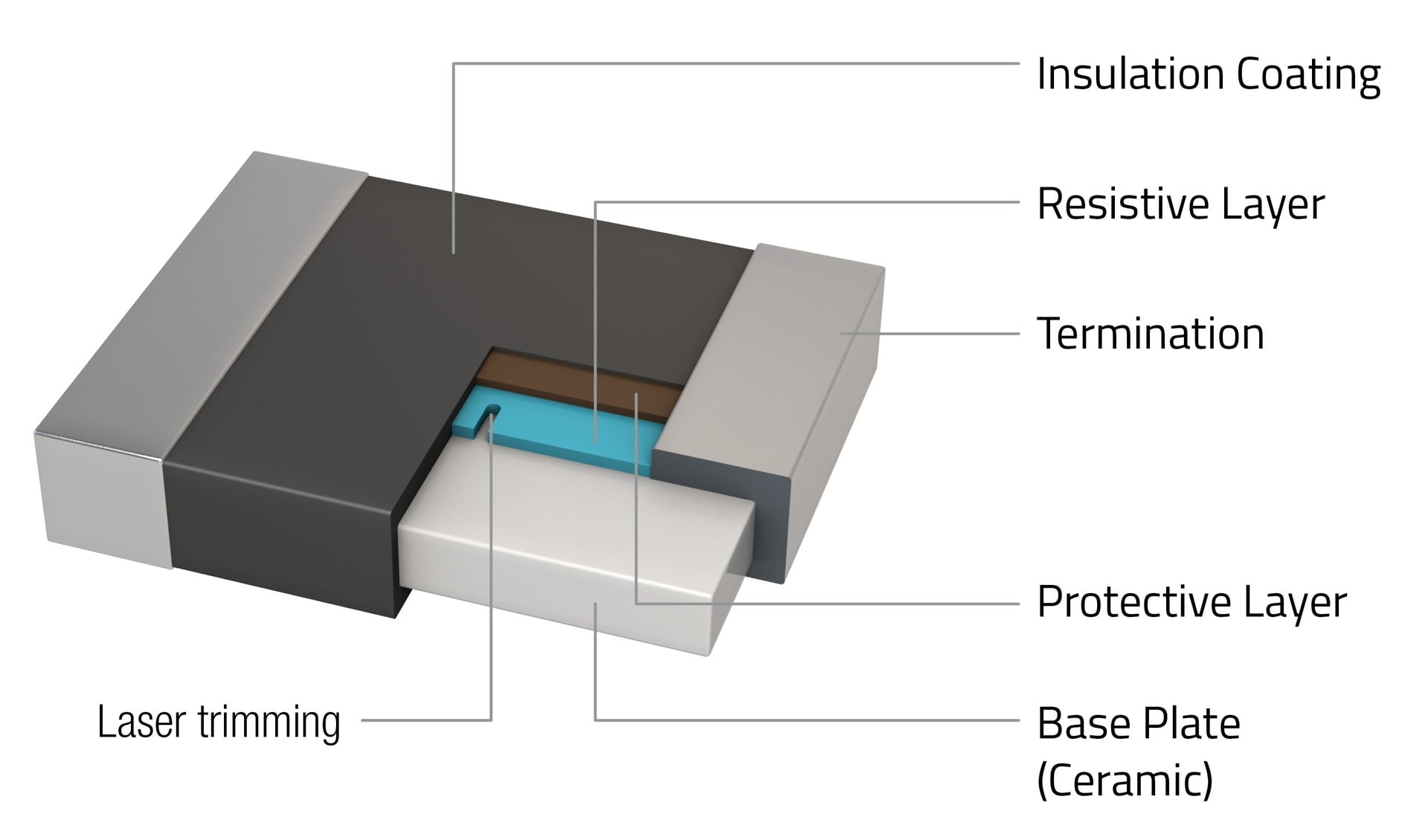

Dickschicht Widerstand

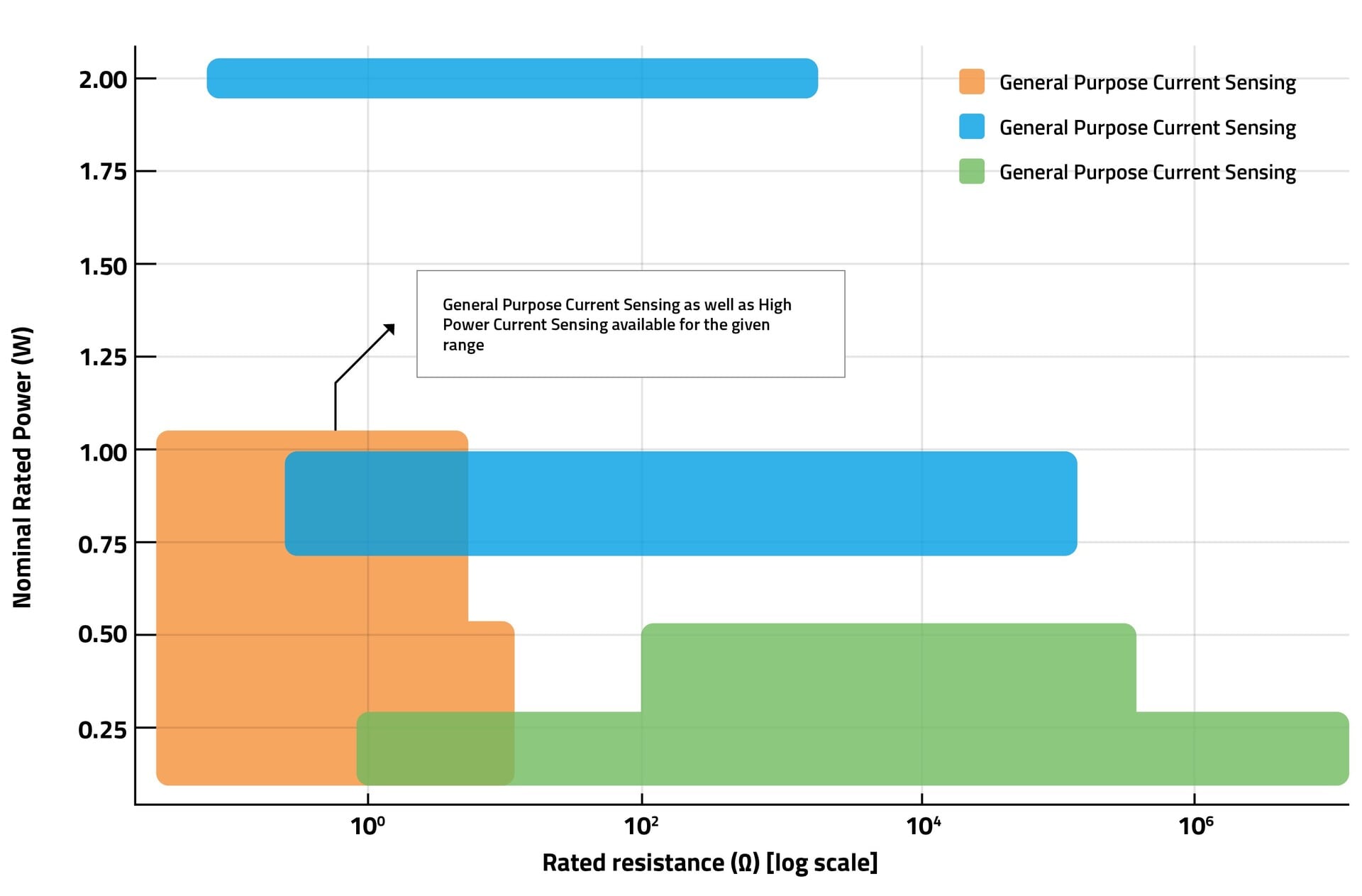

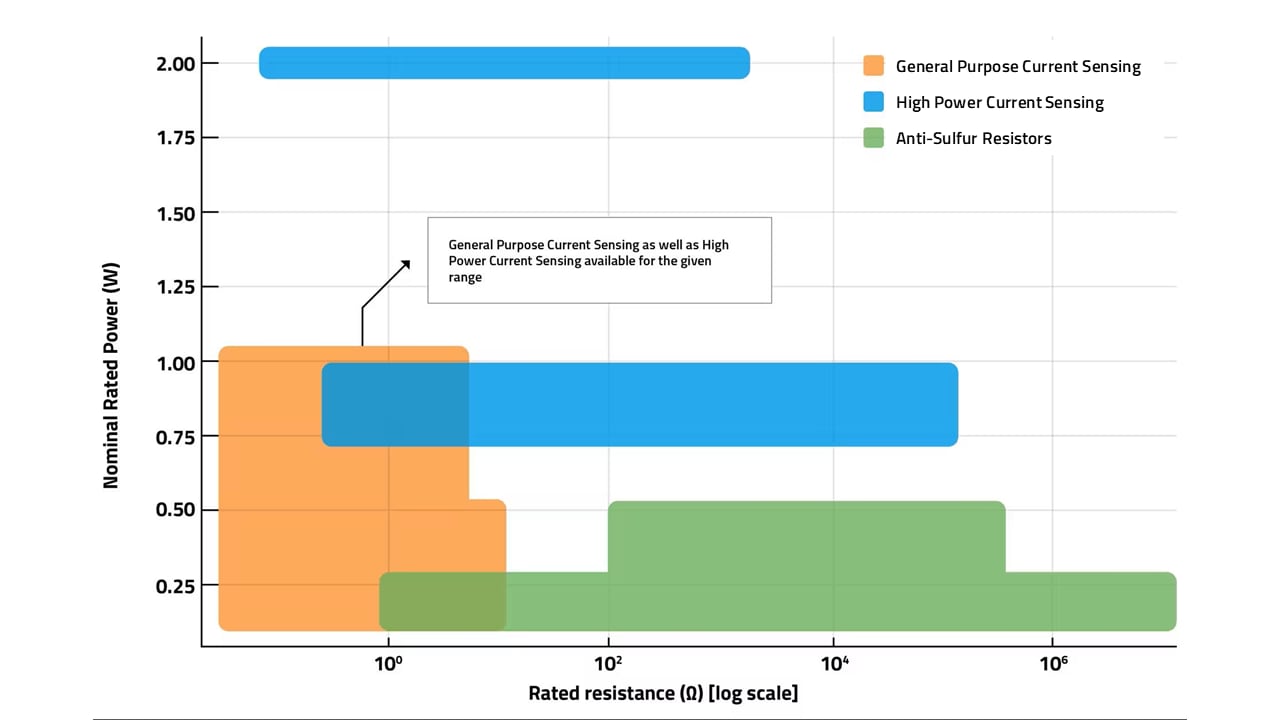

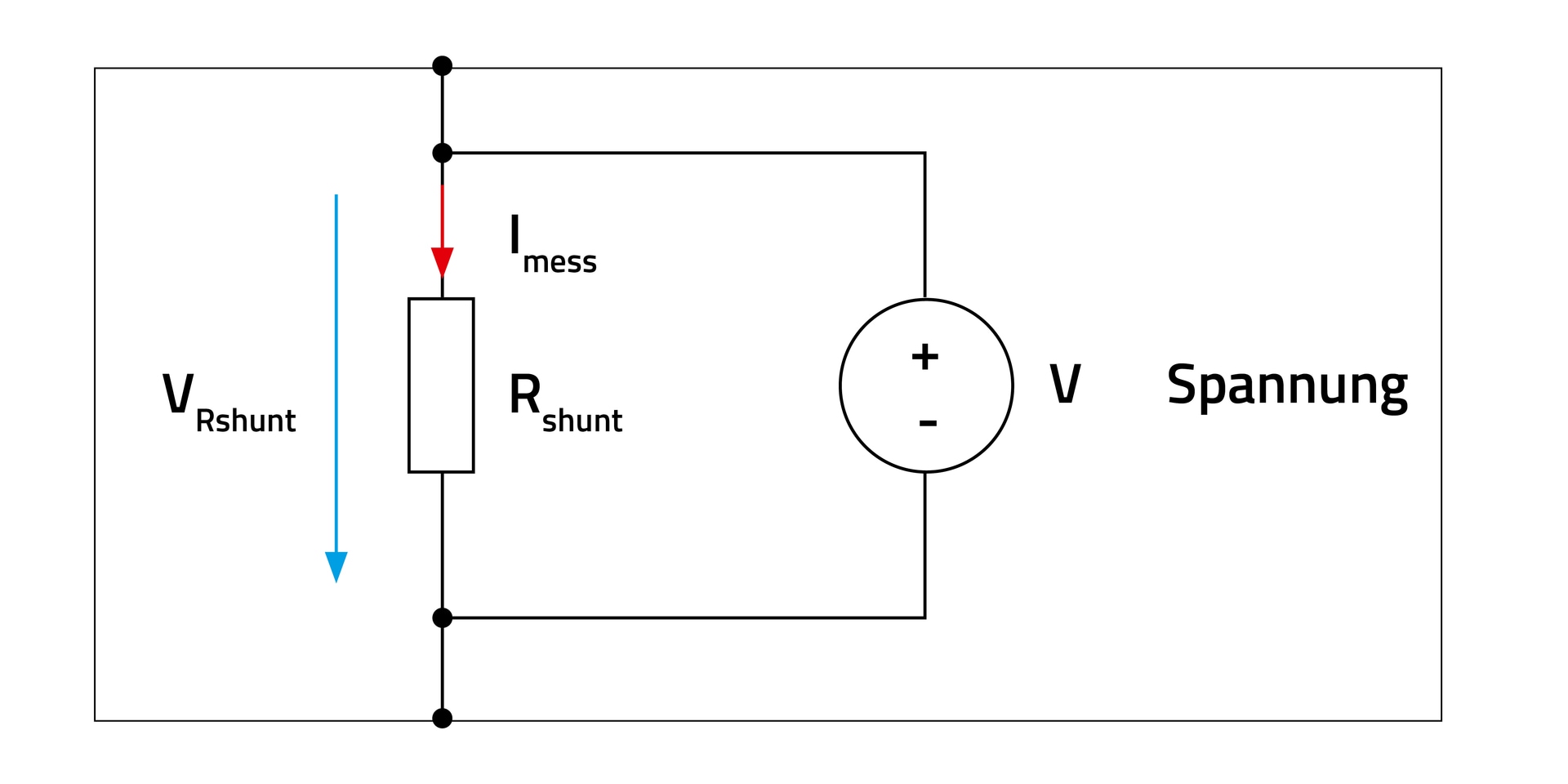

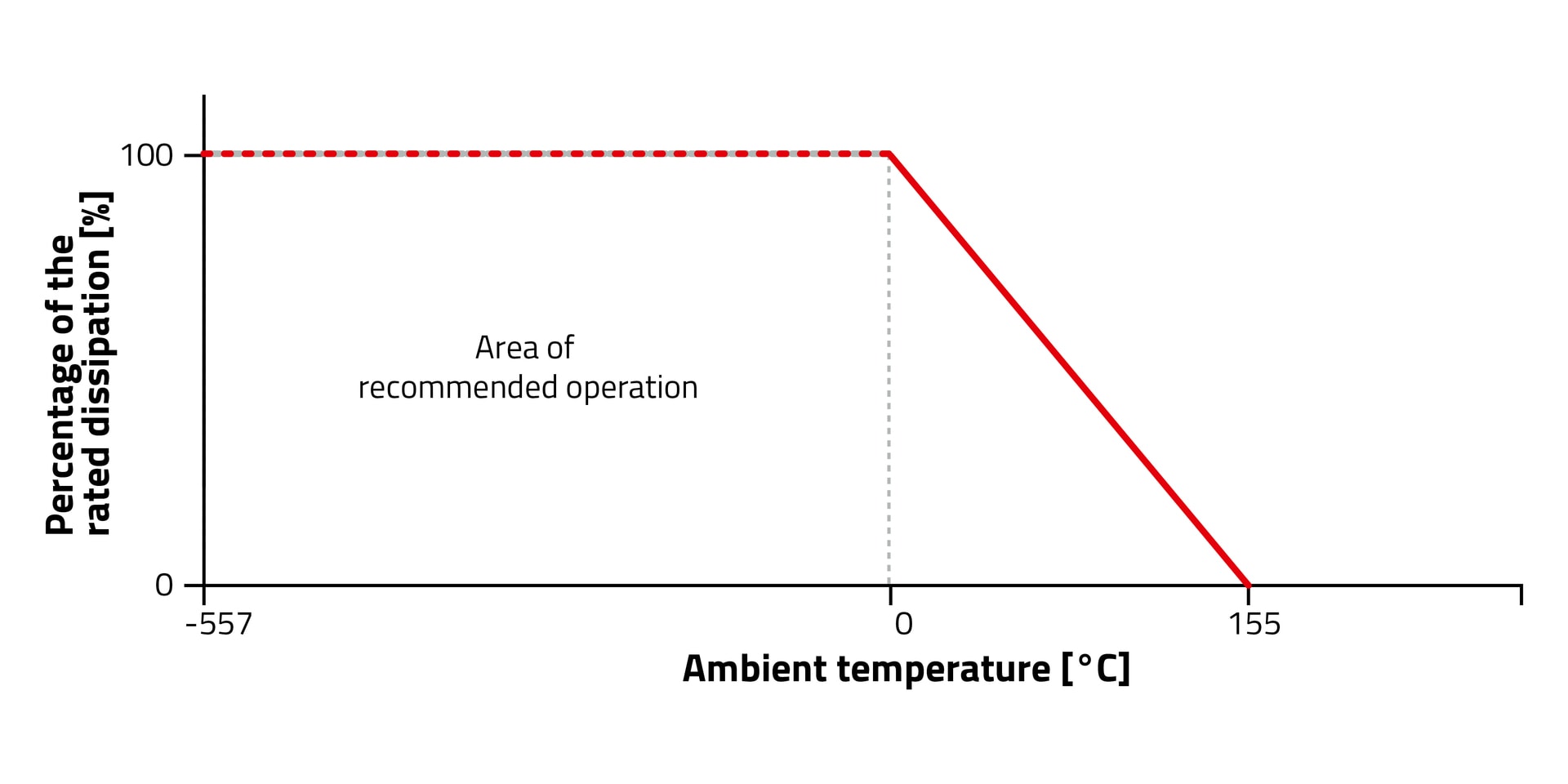

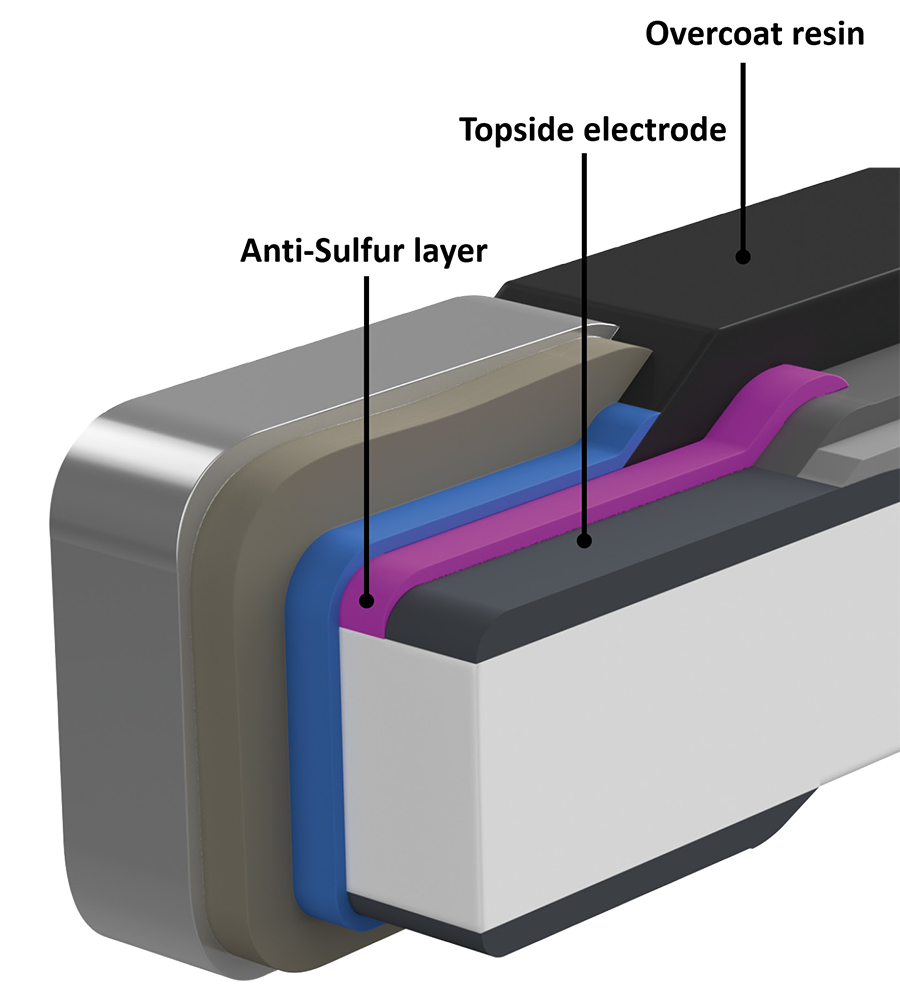

WRIS-KSKE Dickschicht WiderstandGeneral Purpose Current Sensing |R 0.05 bis 10 Ω |PRated 0.125 bis 1 W
WRIS-KWKB Dickschicht WiderstandHigh Power Current Sensing, Wide Terminal |R 2.2 bis 18000 Ω |PRated 0.75 bis 2 W
WRIS-KWKH Dickschicht WiderstandHigh Power Current Sensing, Wide Terminal |R 100 mΩ bis 0.62 Ω |PRated 1 W
WRIS-RSKS Dickschicht Widerstand NEUAnti-Sulfur-Widerstände |R 10 MΩ |PRated 62.5 mW bis 0.5 W
| Artikel Nr. | Datenblatt | Simulation | Downloads | R | Tol. R | PRated (mW) | TCR (ppm/ °C) | TCR (ppm/ °C) | IR (A) | L (mm) | W (mm) | H (mm) | Produktserie | Design Kit | Muster | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 560112110001 | SPEC | 6 Dateien | 0 Ω | +0.05Ω/-0Ω | 62.5 | – | – | 1 | 1 | 0.5 | 0.35 | WRIS-RSKS Dickschicht Widerstand | 560112 | |||
| 560112140010 | SPEC | 6 Dateien | 0 Ω | +0.05Ω/-0Ω | 330 | – | – | 2.5 | 3.1 | 2.6 | 0.55 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112116001 | SPEC | 6 Dateien | 0 Ω | +0.05Ω/-0Ω | 100 | – | – | 1 | 1.6 | 0.8 | 0.45 | WRIS-RSKS Dickschicht Widerstand | 560113 | |||
| 560112120002 | SPEC | 6 Dateien | 0 Ω | +0.05Ω/-0Ω | 125 | – | – | 1.5 | 2 | 1.25 | 0.5 | WRIS-RSKS Dickschicht Widerstand | 560114 | |||
| 560112132007 | SPEC | 6 Dateien | 0 Ω | +0.05Ω/-0Ω | 250 | – | – | 2 | 3.1 | 1.6 | 0.6 | WRIS-RSKS Dickschicht Widerstand | 560114 | |||
| 560050332001 | SPEC | 6 Dateien | 0.05 Ω | ±1% | 500 | – | 250 | 3.16 | 3.1 | 1.6 | 0.6 | WRIS-KSKE Dickschicht Widerstand | – | ||
| 560050316001 | SPEC | 6 Dateien | 0.1 Ω | ±1% | 250 | – | 250 | 1.58 | 1.6 | 0.8 | 0.45 | WRIS-KSKE Dickschicht Widerstand | 560000 | ||
| 560050320001 | SPEC | 6 Dateien | 0.1 Ω | ±1% | 330 | – | 250 | 1.81 | 2 | 1.25 | 0.6 | WRIS-KSKE Dickschicht Widerstand | 560000 | ||
| 561070332051 | SPEC | 6 Dateien | 100 mΩ | ±1% | 1000 | – | 350 | 3.2 | 1.6 | 3.2 | 0.55 | WRIS-KWKH Dickschicht Widerstand | 560000 | ||
| 561070350055 | SPEC | 6 Dateien | 0.15 Ω | ±1% | 1000 | – | 350 | 2.58 | 2.5 | 5 | 0.55 | WRIS-KWKH Dickschicht Widerstand | – | ||
| 560050310002 | SPEC | 6 Dateien | 0.15 Ω | ±1% | 125 | – | 300 | 0.91 | 1 | 0.5 | 0.35 | WRIS-KSKE Dickschicht Widerstand | 560000 | ||
| 561070332055 | SPEC | 6 Dateien | 0.15 Ω | ±1% | 1000 | – | 350 | 2.6 | 1.6 | 3.2 | 0.55 | WRIS-KWKH Dickschicht Widerstand | 560000 | ||
| 561070332057 | SPEC | 6 Dateien | 0.18 Ω | ±1% | 1000 | – | 350 | 2.4 | 1.6 | 3.2 | 0.55 | WRIS-KWKH Dickschicht Widerstand | 560000 | ||
| 560050350011 | SPEC | 6 Dateien | 0.2 Ω | ±1% | 750 | – | 200 | 1.93 | 5 | 2.5 | 0.6 | WRIS-KSKE Dickschicht Widerstand | – | ||
| 561070332092 | SPEC | 6 Dateien | 0.24 Ω | ±5% | 1000 | – | 250 | 2 | 1.6 | 3.2 | 0.55 | WRIS-KWKH Dickschicht Widerstand | 560000 | ||
| 560050320003 | SPEC | 6 Dateien | 0.27 Ω | ±1% | 330 | – | 200 | 1.1 | 2 | 1.25 | 0.6 | WRIS-KSKE Dickschicht Widerstand | 560000 | ||
| 561070332071 | SPEC | 6 Dateien | 0.33 Ω | ±1% | 1000 | – | 250 | 1.7 | 1.6 | 3.2 | 0.55 | WRIS-KWKH Dickschicht Widerstand | 560000 | ||
| 561070332096 | SPEC | 6 Dateien | 0.33 Ω | ±5% | 1000 | – | 250 | 1.7 | 1.6 | 3.2 | 0.55 | WRIS-KWKH Dickschicht Widerstand | 560000 | ||
| 560050350012 | SPEC | 6 Dateien | 0.39 Ω | ±1% | 750 | – | 200 | 1.38 | 5 | 2.5 | 0.6 | WRIS-KSKE Dickschicht Widerstand | – | ||
| 561070332076 | SPEC | 6 Dateien | 0.47 Ω | ±1% | 1000 | – | 250 | 1.5 | 1.6 | 3.2 | 0.55 | WRIS-KWKH Dickschicht Widerstand | 560000 | ||
| 560050310010 | SPEC | 6 Dateien | 0.5 Ω | ±1% | 125 | – | 200 | 0.5 | 1 | 0.5 | 0.35 | WRIS-KSKE Dickschicht Widerstand | – | ||
| 560050316011 | SPEC | 6 Dateien | 0.5 Ω | ±1% | 250 | -100 | 100 | 0.7 | 1.6 | 0.8 | 0.45 | WRIS-KSKE Dickschicht Widerstand | 560000 | ||
| 560050332013 | SPEC | 6 Dateien | 0.5 Ω | ±1% | 500 | -100 | 100 | 1 | 3.1 | 1.6 | 0.6 | WRIS-KSKE Dickschicht Widerstand | 560000 | ||
| 560050363011 | SPEC | 6 Dateien | 0.5 Ω | ±1% | 1000 | -100 | 100 | 1.41 | 6.3 | 3.2 | 0.6 | WRIS-KSKE Dickschicht Widerstand | – | ||
| 561070350077 | SPEC | 6 Dateien | 0.5 Ω | ±1% | 1000 | – | 200 | 1.41 | 2.5 | 5 | 0.55 | WRIS-KWKH Dickschicht Widerstand | – | ||
| 561070350078 | SPEC | 6 Dateien | 0.51 Ω | ±1% | 1000 | – | 200 | 1.4 | 2.5 | 5 | 0.55 | WRIS-KWKH Dickschicht Widerstand | – | ||
| 561070332078 | SPEC | 6 Dateien | 0.51 Ω | ±1% | 1000 | – | 200 | 1.4 | 1.6 | 3.2 | 0.55 | WRIS-KWKH Dickschicht Widerstand | 560000 | ||
| 561070332079 | SPEC | 6 Dateien | 0.56 Ω | ±1% | 1000 | – | 200 | 1.3 | 1.6 | 3.2 | 0.55 | WRIS-KWKH Dickschicht Widerstand | 560000 | ||
| 561070332080 | SPEC | 6 Dateien | 0.6 Ω | ±1% | 1000 | – | 200 | 1.3 | 1.6 | 3.2 | 0.55 | WRIS-KWKH Dickschicht Widerstand | 560000 | ||
| 561070332081 | SPEC | 6 Dateien | 0.62 Ω | ±1% | 1000 | – | 200 | 1.3 | 1.6 | 3.2 | 0.55 | WRIS-KWKH Dickschicht Widerstand | 560000 | ||
| 560050320011 | SPEC | 6 Dateien | 1 Ω | ±1% | 330 | -100 | 100 | 0.57 | 2 | 1.25 | 0.6 | WRIS-KSKE Dickschicht Widerstand | – | ||
| 560112110076 | SPEC | 6 Dateien | 1 Ω | ±1% | 100 | -200 | 400 | – | 1 | 0.5 | 0.35 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112110132 | SPEC | 6 Dateien | 1 Ω | ±5% | 100 | -200 | 400 | – | 1 | 0.5 | 0.35 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112116071 | SPEC | 6 Dateien | 1 Ω | ±1% | 100 | -200 | 400 | – | 1.6 | 0.8 | 0.45 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112132002 | SPEC | 6 Dateien | 1 Ω | ±1% | 250 | -200 | 400 | – | 3.1 | 1.6 | 0.6 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112132024 | SPEC | 6 Dateien | 1.1 Ω | ±1% | 250 | -200 | 400 | – | 3.1 | 1.6 | 0.6 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112110058 | SPEC | 6 Dateien | 1.2 Ω | ±1% | 100 | -200 | 400 | – | 1 | 0.5 | 0.35 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112132010 | SPEC | 6 Dateien | 1.2 Ω | ±1% | 250 | -200 | 400 | – | 3.1 | 1.6 | 0.6 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112132014 | SPEC | 6 Dateien | 1.8 Ω | ±1% | 250 | -200 | 400 | – | 3.1 | 1.6 | 0.6 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112110057 | SPEC | 6 Dateien | 2 Ω | ±1% | 100 | -200 | 400 | – | 1 | 0.5 | 0.35 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112120016 | SPEC | 6 Dateien | 2 Ω | ±5% | 250 | -200 | 400 | – | 2 | 1.25 | 0.5 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112132047 | SPEC | 6 Dateien | 2 Ω | ±5% | 250 | -200 | 400 | – | 3.1 | 1.6 | 0.6 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 561020163016 | SPEC | 6 Dateien | 2.2 Ω | ±1% | 2000 | -200 | 200 | 0.9535 | 3.2 | 6.3 | 0.55 | WRIS-KWKB Dickschicht Widerstand | 560000 | ||
| 560050320007 | SPEC | 6 Dateien | 2.2 Ω | ±1% | 330 | 100 | 100 | 0.38 | 2 | 1.25 | 0.6 | WRIS-KSKE Dickschicht Widerstand | 560000 | ||
| 560112110074 | SPEC | 6 Dateien | 2.2 Ω | ±1% | 100 | -200 | 400 | – | 1 | 0.5 | 0.35 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112110150 | SPEC | 6 Dateien | 2.2 Ω | ±5% | 100 | -200 | 400 | – | 1 | 0.5 | 0.35 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112116088 | SPEC | 6 Dateien | 2.2 Ω | ±1% | 100 | -200 | 400 | – | 1.6 | 0.8 | 0.45 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112120018 | SPEC | 6 Dateien | 2.2 Ω | ±1% | 250 | -200 | 400 | – | 2 | 1.25 | 0.5 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112132016 | SPEC | 6 Dateien | 2.2 Ω | ±1% | 250 | -200 | 400 | – | 3.1 | 1.6 | 0.6 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112116102 | SPEC | 6 Dateien | 2.21 Ω | ±1% | 100 | -200 | 400 | – | 1.6 | 0.8 | 0.45 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560050332011 | SPEC | 3 Dateien | 3.3 Ω | ±1% | 500 | -100 | 100 | 0.38 | 3.1 | 1.6 | 0.6 | WRIS-KSKE Dickschicht Widerstand | – | ||
| 560050363012 | SPEC | 6 Dateien | 3.3 Ω | ±1% | 1000 | -100 | 100 | 0.55 | 6.3 | 3.2 | 0.6 | WRIS-KSKE Dickschicht Widerstand | – | ||
| 560112110181 | SPEC | 6 Dateien | 3.3 Ω | ±1% | 100 | -200 | 400 | – | 1 | 0.5 | 0.35 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112110238 | SPEC | 6 Dateien | 3.3 Ω | ±5% | 100 | -200 | 400 | – | 1 | 0.5 | 0.35 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112120025 | SPEC | 6 Dateien | 3.3 Ω | ±5% | 250 | -200 | 400 | – | 2 | 1.25 | 0.5 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112110140 | SPEC | 6 Dateien | 4.02 Ω | ±1% | 100 | -200 | 400 | – | 1 | 0.5 | 0.35 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112132031 | SPEC | 6 Dateien | 4.3 Ω | ±1% | 250 | -200 | 400 | – | 3.1 | 1.6 | 0.6 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112116077 | SPEC | 6 Dateien | 4.7 Ω | ±5% | 100 | -200 | 400 | – | 1.6 | 0.8 | 0.45 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112132045 | SPEC | 6 Dateien | 4.7 Ω | ±1% | 250 | -200 | 400 | – | 3.1 | 1.6 | 0.6 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112110141 | SPEC | 6 Dateien | 4.99 Ω | ±1% | 100 | -200 | 400 | – | 1 | 0.5 | 0.35 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112116086 | SPEC | 6 Dateien | 4.99 Ω | ±1% | 100 | -200 | 400 | – | 1.6 | 0.8 | 0.45 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 561020163017 | SPEC | 6 Dateien | 5.1 Ω | ±1% | 2000 | -200 | 200 | 0.6262 | 3.2 | 6.3 | 0.55 | WRIS-KWKB Dickschicht Widerstand | – | ||
| 560112110090 | SPEC | 6 Dateien | 5.11 Ω | ±1% | 100 | -200 | 400 | – | 1 | 0.5 | 0.35 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112116051 | SPEC | 6 Dateien | 5.6 Ω | ±5% | 100 | -200 | 400 | – | 1.6 | 0.8 | 0.45 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112116062 | SPEC | 6 Dateien | 8.2 Ω | ±5% | 100 | -200 | 400 | – | 1.6 | 0.8 | 0.45 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560050310009 | SPEC | 6 Dateien | 10 Ω | ±1% | 125 | -100 | 100 | 0.11 | 1 | 0.5 | 0.35 | WRIS-KSKE Dickschicht Widerstand | – | ||
| 560050316012 | SPEC | 6 Dateien | 10 Ω | ±1% | 250 | -100 | 100 | 0.15 | 1.6 | 0.8 | 0.45 | WRIS-KSKE Dickschicht Widerstand | – | ||
| 561020163018 | SPEC | 6 Dateien | 10 Ω | ±1% | 2000 | -200 | 200 | 0.4472 | 3.2 | 6.3 | 0.55 | WRIS-KWKB Dickschicht Widerstand | – | ||
| 560112110034 | SPEC | 7 Dateien | 10 Ω | ±1% | 100 | -200 | 400 | – | 1 | 0.5 | 0.35 | WRIS-RSKS Dickschicht Widerstand | 560112 | |||
| 560112110075 | SPEC | 6 Dateien | 10 Ω | ±5% | 100 | -200 | 400 | – | 1 | 0.5 | 0.35 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112116013 | SPEC | 7 Dateien | 10 Ω | ±1% | 100 | -200 | 400 | – | 1.6 | 0.8 | 0.45 | WRIS-RSKS Dickschicht Widerstand | 560113 | |||
| 560112116033 | SPEC | 6 Dateien | 10 Ω | ±5% | 100 | -200 | 400 | – | 1.6 | 0.8 | 0.45 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112120001 | SPEC | 6 Dateien | 10 Ω | ±5% | 250 | -200 | 400 | – | 2 | 1.25 | 0.5 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112120008 | SPEC | 7 Dateien | 10 Ω | ±1% | 250 | -200 | 400 | – | 2 | 1.25 | 0.5 | WRIS-RSKS Dickschicht Widerstand | 560114 | |||
| 560112132039 | SPEC | 7 Dateien | 10 Ω | ±1% | 250 | -200 | 400 | – | 3.1 | 1.6 | 0.6 | WRIS-RSKS Dickschicht Widerstand | 560114 | |||
| 560112110007 | SPEC | 6 Dateien | 15 Ω | ±5% | 100 | -100 | 100 | – | 1 | 0.5 | 0.35 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112116150 | SPEC | 6 Dateien | 15 Ω | ±1% | 100 | -100 | 100 | – | 1.6 | 0.8 | 0.45 | WRIS-RSKS Dickschicht Widerstand | 560113 | |||
| 560112132032 | SPEC | 6 Dateien | 18 Ω | ±5% | 250 | -100 | 100 | – | 3.1 | 1.6 | 0.6 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112110083 | SPEC | 6 Dateien | 20 Ω | ±1% | 100 | -100 | 100 | – | 1 | 0.5 | 0.35 | WRIS-RSKS Dickschicht Widerstand | 560112 | |||
| 560112110133 | SPEC | 6 Dateien | 20 Ω | ±5% | 100 | -100 | 100 | – | 1 | 0.5 | 0.35 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112116125 | SPEC | 6 Dateien | 20 Ω | ±1% | 100 | -100 | 100 | – | 1.6 | 0.8 | 0.45 | WRIS-RSKS Dickschicht Widerstand | 560113 | |||
| 560112132008 | SPEC | 6 Dateien | 20 Ω | ±1% | 250 | -100 | 100 | – | 3.1 | 1.6 | 0.6 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112110046 | SPEC | 6 Dateien | 22 Ω | ±1% | 100 | -100 | 100 | – | 1 | 0.5 | 0.35 | WRIS-RSKS Dickschicht Widerstand | 560112 | |||
| 560112110216 | SPEC | 6 Dateien | 22 Ω | ±5% | 100 | -100 | 100 | – | 1 | 0.5 | 0.35 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112116043 | SPEC | 6 Dateien | 22 Ω | ±5% | 100 | -100 | 100 | – | 1.6 | 0.8 | 0.45 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112132042 | SPEC | 6 Dateien | 22 Ω | ±1% | 250 | -100 | 100 | – | 3.1 | 1.6 | 0.6 | WRIS-RSKS Dickschicht Widerstand | 560114 | |||
| 560112110100 | SPEC | 6 Dateien | 22.1 Ω | ±1% | 100 | -100 | 100 | – | 1 | 0.5 | 0.35 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112110219 | SPEC | 6 Dateien | 22.6 Ω | ±1% | 100 | -100 | 100 | – | 1 | 0.5 | 0.35 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112110045 | SPEC | 6 Dateien | 24.9 Ω | ±1% | 100 | -100 | 100 | – | 1 | 0.5 | 0.35 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112132043 | SPEC | 6 Dateien | 24.9 Ω | ±1% | 250 | -100 | 100 | – | 3.1 | 1.6 | 0.6 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112110067 | SPEC | 6 Dateien | 26.1 Ω | ±1% | 100 | -100 | 100 | – | 1 | 0.5 | 0.35 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112110115 | SPEC | 6 Dateien | 27.4 Ω | ±1% | 100 | -100 | 100 | – | 1 | 0.5 | 0.35 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112110229 | SPEC | 6 Dateien | 30 Ω | ±5% | 100 | -100 | 100 | – | 1 | 0.5 | 0.35 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112110152 | SPEC | 6 Dateien | 30.1 Ω | ±1% | 100 | -100 | 100 | – | 1 | 0.5 | 0.35 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112110004 | SPEC | 6 Dateien | 33 Ω | ±1% | 100 | -100 | 100 | – | 1 | 0.5 | 0.35 | WRIS-RSKS Dickschicht Widerstand | 560112 | |||
| 560112110030 | SPEC | 6 Dateien | 33 Ω | ±5% | 100 | -100 | 100 | – | 1 | 0.5 | 0.35 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112116034 | SPEC | 6 Dateien | 33 Ω | ±1% | 100 | -100 | 100 | – | 1.6 | 0.8 | 0.45 | WRIS-RSKS Dickschicht Widerstand | 560113 | |||
| 560112132033 | SPEC | 6 Dateien | 33 Ω | ±5% | 250 | -100 | 100 | – | 3.1 | 1.6 | 0.6 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112110233 | SPEC | 6 Dateien | 33.2 Ω | ±1% | 100 | -100 | 100 | – | 1 | 0.5 | 0.35 | WRIS-RSKS Dickschicht Widerstand | – | |||
| 560112116109 | SPEC | 6 Dateien | 33.2 Ω | ±1% | 100 | -100 | 100 | – | 1.6 | 0.8 | 0.45 | WRIS-RSKS Dickschicht Widerstand | – |
| Muster |
|---|
