| Topology | Full-Bridge Converter symmetrical isolated |
| Input voltage | 5-20 V |
| Switching frequency | 50-695 kHz |
| IC revision | 1 |
Description

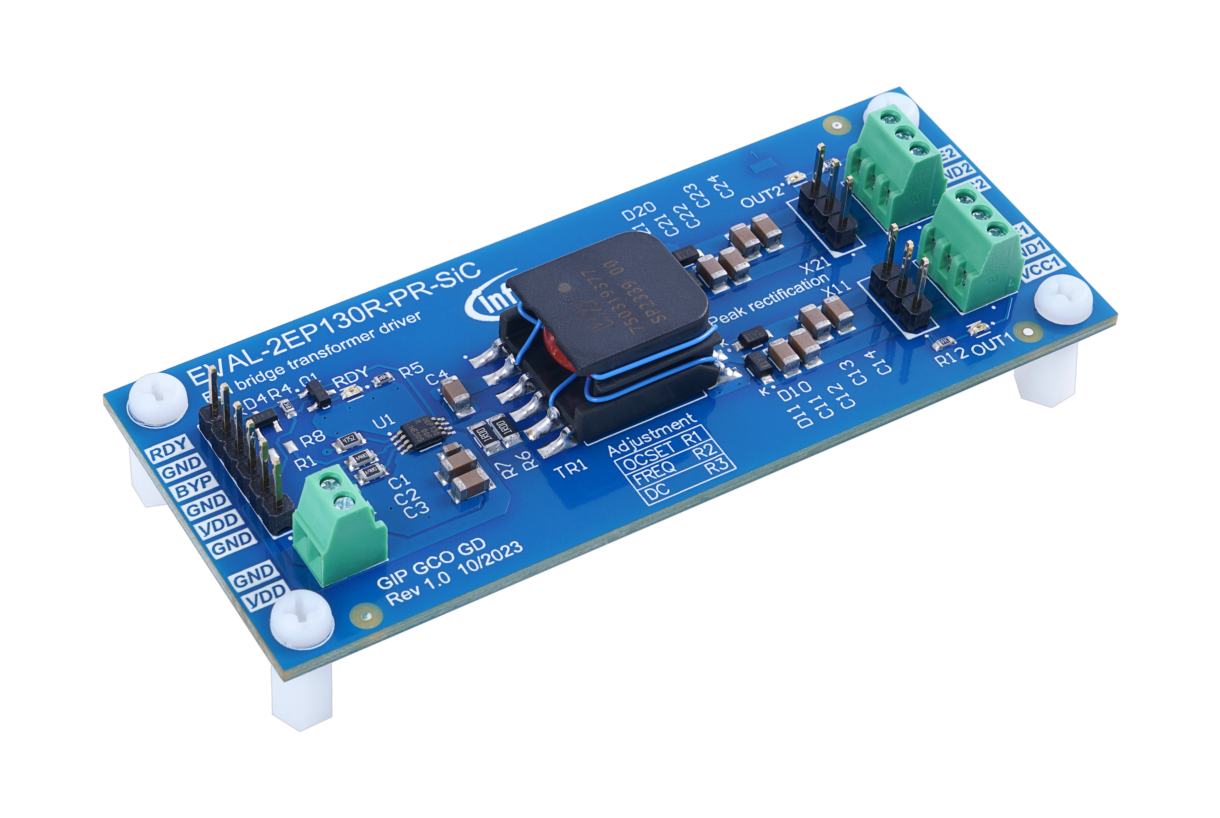

This evaluation board includes dual output peak rectification and customizable output voltage for SiC MOSFETS. All 2EP1xx product variants are pin compatible and can be used with matching configuration settings in customerspecific designs. 2EP130R is pre-assembled on EVAL-2EP130R-PR-SIC for complete feature evaluation. The evaluation board provides all the necessary supply, load, and signal connections for an application.
Features
- Peak Rectification Topology
- Wide input supply range of 5 V to 20 V
- Output power of up to 5 W
- Dual isolated output supply rails
- Adjustable output voltage ratio
- Wide operating range from 50 to 695 kHz
- Adjustable overcurrent threshold
- Power Output Short circuit protection
- Overtemperature protection
- RDY status output for normal operation
Typical applications
- Photovoltaic
- EV Charging
- Motor drives and controls
More information
Products
| Order Code | Datasheet | Downloads | Status | Product series | Samples |
|---|---|---|---|---|---|
| 750319377 | SPEC | – | New i| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | Auxiliary Gate Drive Transformer |
| Order Code | Datasheet |
|---|---|
| 750319377 | SPEC |
| Samples |
|---|
| Order Code | Datasheet | Downloads | Status | Product series | Samples |
|---|
