Characteristics
- For multipole ribbon cable and flexible printed circuit boards
- A must for design and test purposes
- Perfect for use in EMC labs

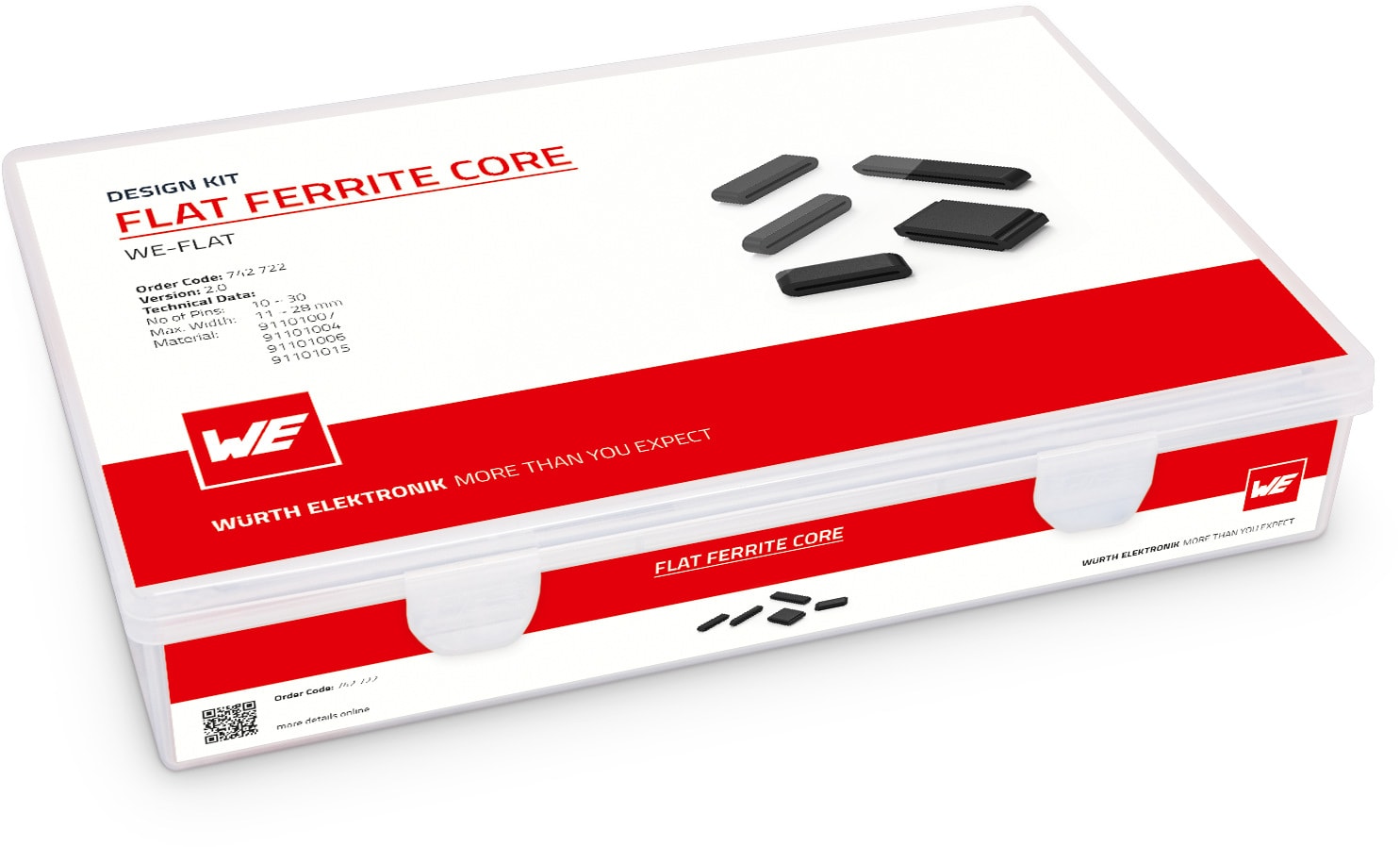

- 24 values, 158 components
- Suitable adhesive tape for assembly
- Free refill
Applications
- Filter for common mode interference on thin data lines in electronic systems
- Example of application: Data transmission with TWINflex from Würth Elektronik and much more
- Especially suitable for flexible printed circuit boards
Products
| Order Code | Datasheet | Simulation | Downloads | Status | Product series | Ø Cable max. (mm) | Z @ 25 MHz 1 turn (Ω) | Z @ 100 MHz 1 turn (Ω) | Material | Version | Samples |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 74278082 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | WE-FLAT | 10.7 | 10 | 23 | 4 W 810 | round | ||
| 7427801 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | WE-FLAT | 11.4 | 42 | 79 | 4 W 620 | round | ||
| 74278043 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | WE-FLAT | 12.7 | 13 | 31 | 4 W 810 | round | ||
| 7427221 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | WE-FLAT | 13.5 | 50 | 166 | 4 W 620 | round | ||
| 74272213 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | WE-FLAT | 15 | 30 | 45 | 4 W 1500 | square | ||
| 7427809 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | WE-FLAT | 16.8 | 22 | 50 | 4 W 620 | round | ||
| 7427225 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | WE-FLAT | 18.8 | 27 | 52 | 4 W 1500 | round | ||
| 7427226 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | WE-FLAT | 18.8 | 30 | 75 | 4 W 620 | round | ||
| 7427805 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | WE-FLAT | 20 | 50 | 103 | 4 W 620 | round | ||
| 7427227 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | WE-FLAT | 22 | 20 | 44 | 4 W 620 | round | ||
| 7427224 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | WE-FLAT | 23 | 55 | 115 | 4 W 620 | edged | ||
| 7427810 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | WE-FLAT | 24 | 60 | 130 | 4 W 620 | round | ||
| 7427232 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | WE-FLAT | 26.5 | 90 | 150 | 4 W 620 | square | ||
| 7427803 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | WE-FLAT | 26.5 | 26 | 66 | 4 W 620 | round | ||
| 74278032 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | WE-FLAT | 27.6 | 24 | 74 | 4 W 620 | round | ||
| 7427220 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | WE-FLAT | 28 | 50 | 90 | 4 W 620 | round | ||
| 7427210 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | WE-FLAT | 28 | 21 | 48 | 4 W 620 | round | ||
| 7427212 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | WE-FLAT | 28 | 31 | 60 | 4 W 620 | round | ||
| 7427223 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | WE-FLAT | 30.9 | 23 | 48 | 3 W 800 | round | ||
| 7427213 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | WE-FLAT | 34.8 | 27 | 67 | 4 W 620 | round | ||
| 7427228 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | WE-FLAT | 35 | 35 | 80 | 4 W 620 | round | ||
| 7427214 | SPEC | 2 files | Active i| Production is active. Expected lifetime: >10 years. | WE-FLAT | 39.2 | 26 | 66 | 4 W 620 | round | ||
| 7427218 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | WE-FLAT | 44 | 25 | 66 | 4 W 620 | round | ||
| 7427216 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 2 files | Active i| Production is active. Expected lifetime: >10 years. | WE-FLAT | 52 | 25 | 63 | 4 W 620 | round |
