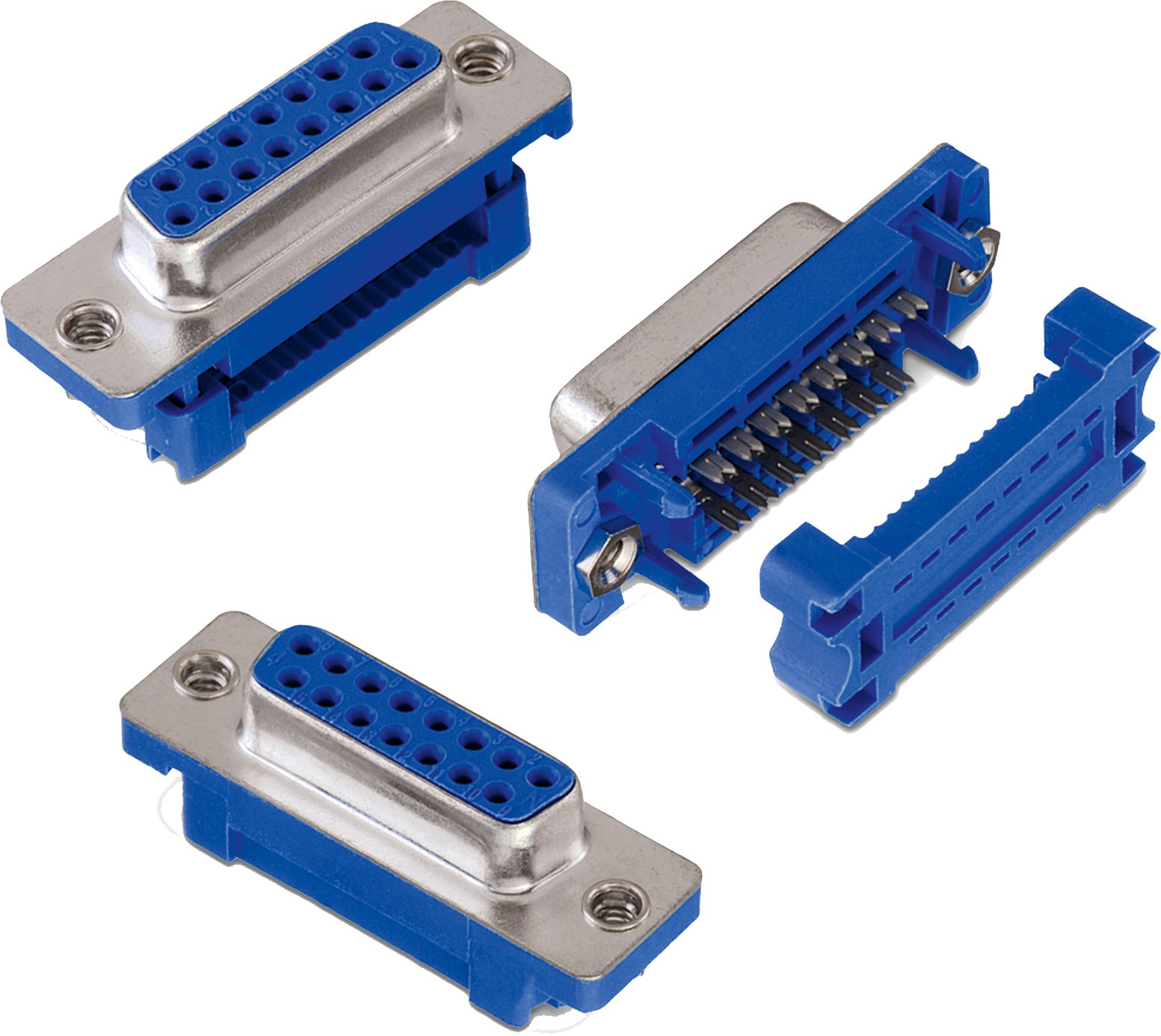

| General Information | |
|---|---|
| Operating Temperature | -55 °C up to +105 °C |
| Compliance | RoHS |
| Quality Class | 3 as per IEC 60 603-13 |
| Gender | Female |
| Type | IDC |
| Insulator Material | PBT |
| Insulator Flammability Rating | UL94 V-0 |
| Cover Material | Steel |
| Cover Plating | Tin |
| Contact Material | Copper Alloy |
| Contact Plating | Selective Gold |
| Contact Type | Stamped |
| Shielding Material | Steel |
| Shielding Plating | Tin |
| Electrical Properties | |
|---|---|
| IR | 3 A |
| Working Voltage | 125 V (AC) |
| Withstanding Voltage | 1000 V (AC) |
| Contact Resistance | 30 mΩ |
Products
| Order Code | Datasheet | Downloads | Status | Pins (Value) (pcs) | Gender | Type | Operating Temperature | Working Voltage (V (AC)) | Samples |
|---|---|---|---|---|---|---|---|---|---|
| 618009227221 | SPEC | 3 files | Active i| Production is active. Expected lifetime: >10 years. | 9 | Female | IDC | -55 °C up to +105 °C | 125 | |
| 618015227221 | SPEC | 3 files | Active i| Production is active. Expected lifetime: >10 years. | 15 | Female | IDC | -55 °C up to +105 °C | 125 | |
| 618025227221 | SPEC | 3 files | Active i| Production is active. Expected lifetime: >10 years. | 25 | Female | IDC | -55 °C up to +105 °C | 125 | |
| 618037227221 | SPEC | 3 files | Active i| Production is active. Expected lifetime: >10 years. | 37 | Female | IDC | -55 °C up to +105 °C | 125 |
| Samples |
|---|
| Order Code | Datasheet | Downloads | Status | Pins (Value) (pcs) | Gender | Type | Operating Temperature | Working Voltage (V (AC)) | Samples |
|---|
Mates with
WR-DSUB Male PCB Connector with Hex Screw
WR-DSUB 8.08 mm Male Angled PCB Connector w. Hex Screw
WR-DSUB 8.08 mm Male Angled PCB Connector w/o Hex Screw
WR-DSUB 10.30 mm Male Angled PCB Connector w. Hex Screw
WR-DSUB Male IDC with UNC 4-40 Nut
WR-DSUB Male PCB Connector
WR-DSUB Female Terminal Housing
WR-DSUB 10.30 mm Male Angled PCB Connector w/o Hex Screw
