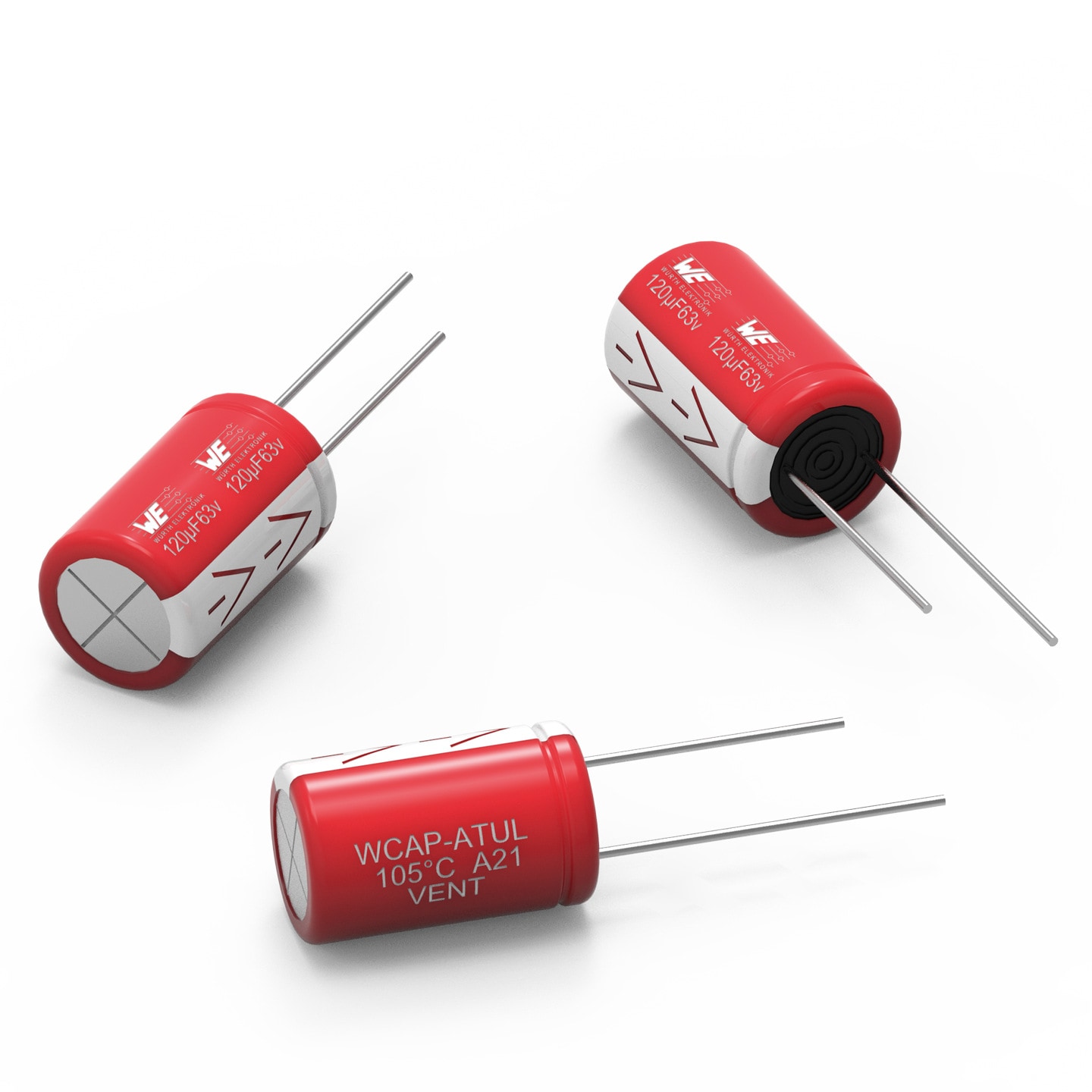

WCAP-ATUL Aluminum Electrolytic Capacitors

LTSpice files

LT
LTSpice_WCAP-ATUL (rev24a).zip
|
4.4 KB

Characteristics

Low leakage current and long life product series
Mounting style: THT Radial
Capacitance range: 22 µF ‒ 4700 µF
Capacitance tolerance: ±20 %
Voltage range (UR): 10 ‒ 100 V(DC)
Operating temperature: -40 °C up to +105 °C
Endurance: 4000 ‒ 10000 h @ +105 °C
Dimensions (DxL) in mm: 5.0 x 11.0 up to 18.0 x 41
Recommended soldering: Wave soldering

Applications

Durable battery applications
Filtering
Smoothing
Energy storage
Coupling
e.g. Switched-mode power supply, AC/DC converter, adapter, charger, digital camera
