Infineon Technologies CY8C4745AZI-S413 | Demoboard CY8CKIT-148 Brakout Board
Programmable System-on-Chip (PSoC)
Overview
| Topology | Other Topology |
| IC revision | 05 |
Description

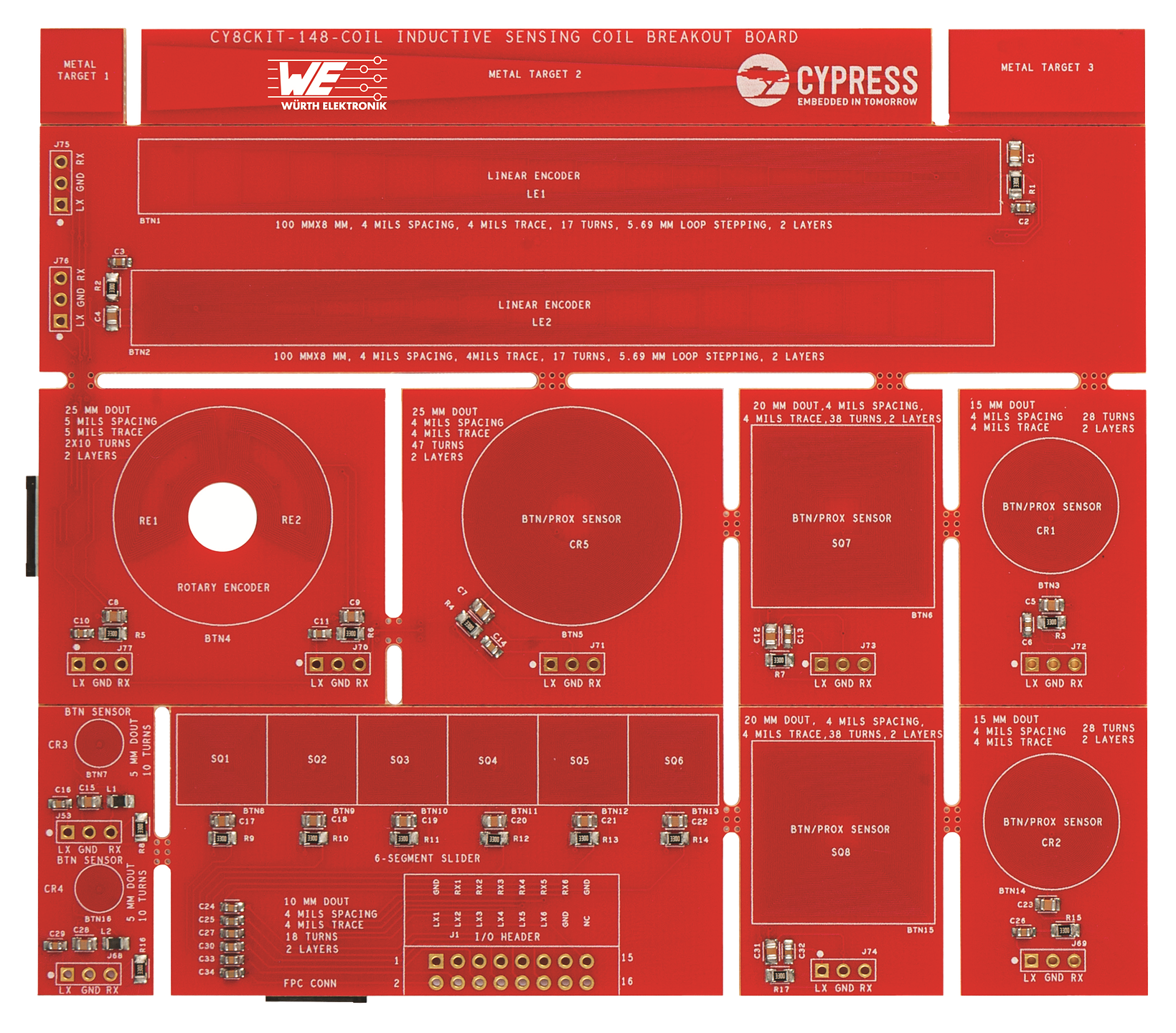

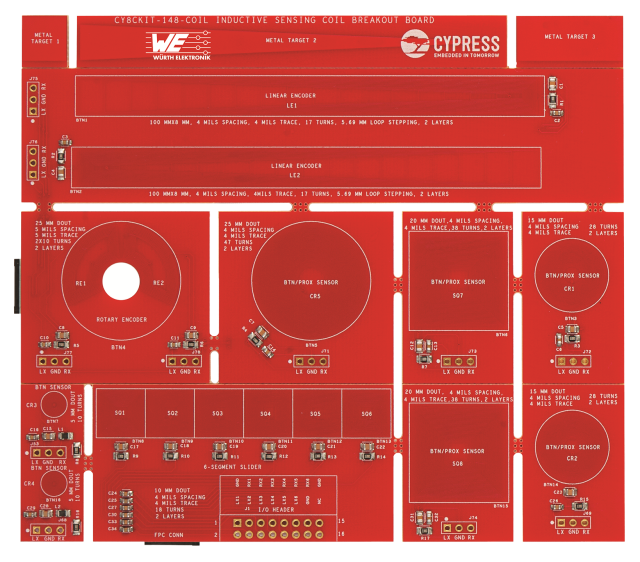

The CY8CKIT-148-COIL Inductive-Sensing Coil Breakout board is designed as an easy-to-use reference design platform. The Inductive Sensing Coil Breakout board is purpose-built to be compatible with the CY8CKIT-148 PSoC 4700S Inductive Sensing Evaluation Kit, where MagSense Inductive Sensing with various coils can be evaluated
Features
- Cypress MagSense provides superior noise immunity
- Reliably detects metal deflection under 190 nm
- MagSense software component automatically calibrates to compensate for the manufacturing variations
- Up to 16 sensors
- Cypress CapSense Sigma-Delta (CSD) provides best-in-class signal-to-noise ratio (SNR) (>5:1) and water tolerance
- Cypress-supplied software component makes capacitive sensing design easy
- Automatic hardware tuning (SmartSense™)
Typical applications
- sensing of metal objects / sensing of non-metallic objects
More information
All technical functions in detail
Products
