Description

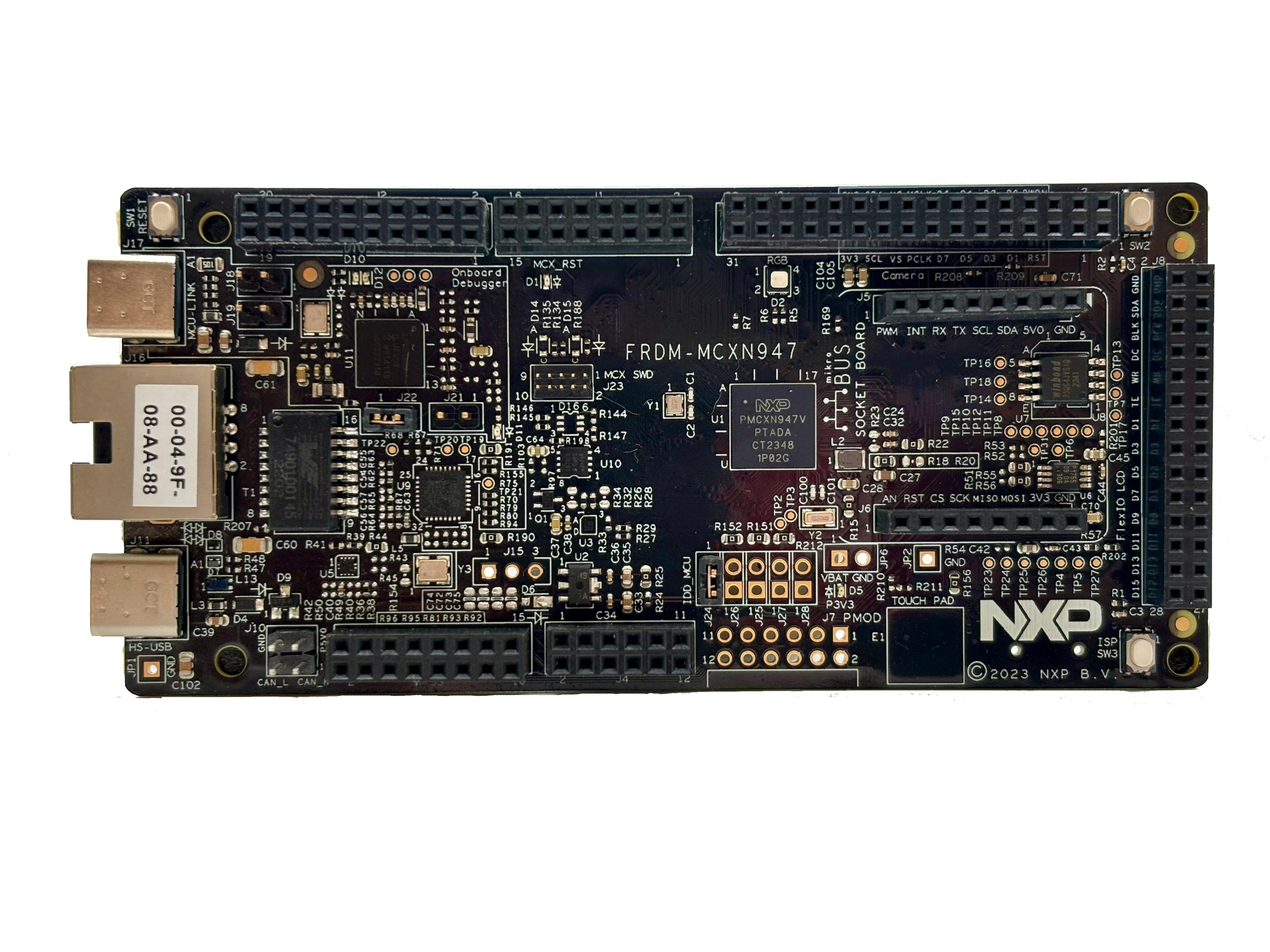

FRDM-MCXN947 are compact and scalable development boards for rapid prototyping of MCX N94 and N54 MCUs. They offer industry standard headers for easy access to the MCU’s I/Os, integrated open-standard serial interfaces, external flash memory and an on-board MCU-Link debugger. Additional tools like our Expansion Board Hub for add-on boards and the Application Code Hub for software examples are available through the MCUXpresso Developer Experience.
Features
MicrocontrollerMCX-N947 Dual Arm™ Cortex™ -M33 cores @150MHz each with optimized performance efficiency, Up to 2MB dual-bank flash with optional full ECC RAM, External flashAccelerators:Neural Processing Unit, PowerQuad, Smart DMA, etc.Memory ExpansionDNP Micro SD card socketConnectivityEthernet Phy and connectorHS USB Type-C connectorsSPI/I2C/UART connector (PMOD/mikroBUS, DNP)WIFI connector (PMOD/mikroBUS, DNP)CAN-FD transceiverDebugOn-board MCU-Link debugger with CMSIS-DAPJTAG/SWD connectorSensorP3T1755 I3C/I2C Temp Sensor, Touch PadExpansion OptionsArduino® Header (with FRDM expansion rows)FRDM HeaderFlexIO/LCD HeaderSmartDMA/Camera HeaderPmod™DNPmikroBUS™User InterfaceRGB user LED, plus Reset, ISP, Wakeup buttons
