Overview
| Topology | Other Topology |
Description

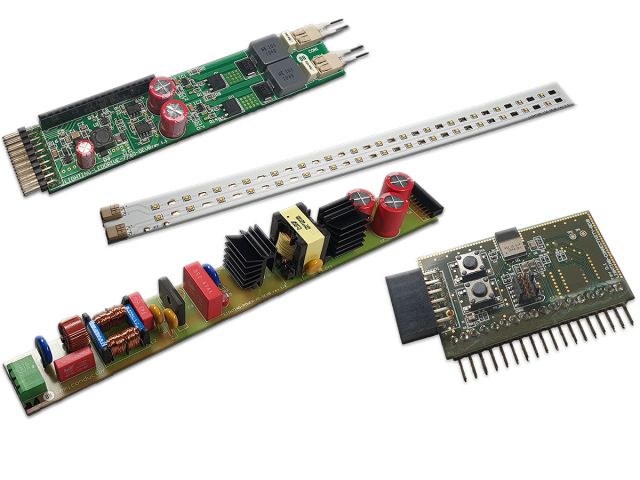

The Connected Lighting Platform is a modular development kit for prototyping cost-effective, industrial LED lighting solutions. The platform is extremely energy efficient and features wireless control (on/off, dimming, etc.) and two independently controlled LED channels that provide a maximum brightness of 7000 lumens
Features
- An LED module, supporting 2 strings (warm white and cool white) of 16 LEDs
- A Bluetooth(R) Low Energy connectivity board featuring RSL10 SIP
- An AC/DC power board (Vin AC: 90 - 270V, Vout DC: 55V, Pout electrical: 70W, Power Factor > 0.99 at full load)
- An LED driver board featuring FL7760 (Dimming down to 0.6%, Telemetry data, 12-bit PWM)
More information
All technical functions in detail
Products
| Order Code | Datasheet | Simulation | Downloads | Status | Product series | Emitting Color | ΦV typ. (lm) | VF typ. (V) | Chip Technology | 2θ50% typ. (°) | Size | Pins (Value) (pcs) | Gender | Mount | Type | Pitch (mm) | IR (A) | IR (A) | Working Voltage (V (AC)) | Working Voltage [UL] (V (AC)) | Working Voltage [cULus] (V (AC)) | Samples | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 158353060 | SPEC | 6 files | Active i| Production is active. Expected lifetime: >10 years. | WL-SWTC SMT White Top view Ceramic LED | Cool White | 135 | 3.2 | InGaN | 120 | 3535 | – | – | SMT | – | – | – | – | – | – | – | ||
 | 695102401122 | SPEC | – | 3 files | Active i| Production is active. Expected lifetime: >10 years. | WR-LECO Series 401 - WTB Accessories for BTB Connection | – | – | – | – | – | – | 2 | Wire to Board Accessories | BtB | Straight | 4 | 9 | 9 | 320 | 320 | 320 |
| Order Code | Datasheet | Simulation | |
|---|---|---|---|
| 158353060 | SPEC | |
| 695102401122 | SPEC | – |
| Samples |
|---|
| Order Code | Datasheet | Simulation | Downloads | Status | Product series | Emitting Color | ΦV typ. (lm) | VF typ. (V) | Chip Technology | 2θ50% typ. (°) | Size | Pins (Value) (pcs) | Gender | Mount | Type | Pitch (mm) | IR (A) | IR (A) | Working Voltage (V (AC)) | Working Voltage [UL] (V (AC)) | Working Voltage [cULus] (V (AC)) | Samples |
|---|
