Overview
| Topology | Buck Converter |
| Input voltage | 11-40 V |
| Switching frequency | 600-784 kHz |
| Output 1 | 10 V / 0.3 A |
| IC revision | 1.0 |
Description

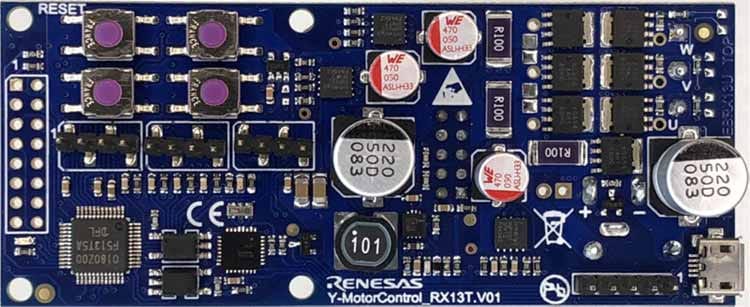

The EU068-MCTRIPSPOCZ board shows a fully tuned 24V Field Oriented Control (FOC) motor control solution with sensorless and smooth operation using the highly precise IPS2200 inductive position sensor. The onboard RX13T microcontroller is an optimized single motor control solution to drive the vector control/FOC of the permanent magnet synchronous motor (brushless DC motor). The RX13T also has a best-in-class built-in Floating Point Unit (FPU) at 32MHz and various built-in peripheral functions, making a small and low BoM cost single motor control board. This application shows the use of the microcontroller together with the IPS2200 axial position sensor, allowing motor axle position feedback without HALL effect sensors.Other ICs Used: HIP2211 - https://bit.ly/RenesasHIP2211, R5F10JBCANA - https://bit.ly/RenesasR5F10JBCANA, R5F513T5ADFL - https://bit.ly/RenesasR5F513T5ADFL, RAA214220 - https://bit.ly/RenesasRAA214220
Features
Wide range of motor capabilities, 12V up to 36V, max 4A (144W);Simple interface to external control hardware (ADC input, PWM input);Graphical User Interface (GUI) gives real-time access to key motor performance parameters and provides a unique motor auto-tuning facility, and onboard buttons for standalone operation without the GUI control;Fully tuned BLDC motor is included on the board
More information
Products
| Order Code | Datasheet | Simulation | Downloads | Status | Product series | L (µH) | IR (A) | ISAT (A) | RDC max. (mΩ) | fres (MHz) | Version | Mount | Type | IR (A) | Working Voltage (V (DC)) | Packaging | C | Tol. C | VR (V (DC)) | Size | Operating Temperature | Q | DF (%) | RISO | Ceramic Type | L (mm) | W (mm) | H (mm) | Fl (mm) | Endurance (h) | Operating Temperature | IRIPPLE (mA) | Z (mΩ) | ILeak (µA) | Ø D (mm) | Samples | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 784787101 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | WE-PD2SA SMT Power Inductor | 100 | 0.95 | 0.87 | 467 | 5 | SMT | SMT | – | – | – | – | – | – | – | 7850 | -50 °C up to +150 °C | – | – | – | – | 7.8 | 7 | 5 | – | – | – | – | – | – | – | ||
 | 865060657012 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | WCAP-ASLL Aluminum Electrolytic Capacitors | – | – | – | – | – | SMT | V-Chip SMT | – | – | – | 15" Tape & Reel | 220 µF | ±20% | 50 | 10.0 x 10.5 | -55 °C up to +105 °C | – | 12 | 0.454545 MΩ | – | 10.5 | 10.3 | – | – | 5000 | -55 °C up to +105 °C | 600 | 230 | 110 | 10 | ||
 | 885012006057 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | WCAP-CSGP MLCCs 50 V(DC) | – | – | – | – | – | – | – | – | – | – | 7" Tape & Reel | 100 pF | ±5% | 50 | 0603 | -55 °C up to +125 °C | 1000 | – | 10 GΩ | NP0 Class I | 1.6 | 0.8 | 0.8 | 0.4 | – | – | – | – | – | – | ||
| 885012206095 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | WCAP-CSGP MLCCs 50 V(DC) | – | – | – | – | – | – | – | – | – | – | 7" Tape & Reel | 100 nF | ±10% | 50 | 0603 | -55 °C up to +125 °C | – | 3 | 5 GΩ | X7R Class II | 1.6 | 0.8 | 0.8 | 0.4 | – | – | – | – | – | – | ||
| 885012106022 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | WCAP-CSGP MLCCs 25 V(DC) | – | – | – | – | – | – | – | – | – | – | 7" Tape & Reel | 1 µF | ±20% | 25 | 0603 | -55 °C up to +85 °C | – | 10 | 0.5 GΩ | X5R Class II | 1.6 | 0.8 | 0.8 | 0.4 | – | – | – | – | – | – | ||
| 885012208069 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | WCAP-CSGP MLCCs 25 V(DC) | – | – | – | – | – | – | – | – | – | – | 7" Tape & Reel | 10 µF | ±10% | 25 | 1206 | -55 °C up to +125 °C | – | 10 | 0.01 GΩ | X7R Class II | 3.2 | 1.6 | 1.6 | 0.5 | – | – | – | – | – | – | ||
 | 694106301002 | SPEC | – | 6 files | Active i| Production is active. Expected lifetime: >10 years. | WR-DC DC Power Jack Right Angled Ø 6.4 | – | 5 | – | – | – | – | THT | Right Angled | 5 | 30 | Bag | – | – | – | – | -40 °C up to +85 °C | – | – | 100 MΩ | – | – | – | – | – | – | -40 °C up to +85 °C | – | – | – | – | |
| 885012108022 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | WCAP-CSGP MLCCs 50 V(DC) | – | – | – | – | – | – | – | – | – | – | 7" Tape & Reel | 10 µF | ±10% | 50 | 1206 | -55 °C up to +85 °C | – | 10 | 0.005 GΩ | X5R Class II | 3.2 | 1.6 | 1.6 | 0.6 | – | -55 °C up to +125 °C | – | – | – | – |
| Order Code | Datasheet | Simulation | |
|---|---|---|---|
| 784787101 | SPEC | |
| 865060657012 | SPEC | |
| 885012006057 | SPEC | |
| 885012206095 | SPEC | |
| 885012106022 | SPEC | |
| 885012208069 | SPEC | |
| 694106301002 | SPEC | – |
| 885012108022 | SPEC |
